FS 530-14 Contitech Single Convoluted Crimped Air Spring With 1/4 Gas Hole Industrial Air Bags
Product Description
GUOMAT Number:1B53014
CONTITECH Part Number:FS530-14
CONTITECH Part Number:FS 530-14
CONTITECH Part Number:FS 530-14 CI
CONTITECH Part Number:FS 530-14 CI 1/4 NPT OS
CONTITECH Part Number:FS530-14 CI 1/4 NPT OS
Spring Material:Natrual Rubber
Factory Warranty:1 Year Warranty
MOQ:10 Pieces
Spring Type:Single Convoluted Type
Failure Testing:≥3 millions
Working Temperature:-40℃ bis +70℃
FS 530-14 1/4 Technical Data
Top Cover Plate Diameter:Ø289mm
Gas Hole / Air inlet:1/4NPTF
Screw Center Distance of Top Cover Plate:158.8mm
Top Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Bottom Cover Plate Diameter:Ø289mm
Screw Center Distance of Bottom Cover Plate:158.8mm
Bottom Cover Plate Screw(Nut)Tooth:4X3/8-16UNC
The Rubber Bellow MAX Diameter:406mm
The Working Stroke:81mm-160mm
Min. Pressure:0 bar
Return Force to Min.Height:≤300N
Overall Weight with Clamped Plates:6.1kg
| Vibration Isolation - Dynamic Characteristic Values -------Design Height H :Recommended 150mm,minimum 120mm |
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V［I］ |
| Force(Load) ［KN］ | 18.6 | 24.9 | 31.5 | 37.9 | 44.4 | 50.8 | 11.0 |
| Spring Rate ［N/cm］ | 3650 | 4410 | 5340 | 6140 | 7220 | 7920 |
| Natural Frequency ［Hz］ | 2.2 | 2.1 | 2.1 | 2.0 | 2.0 | 2.0 |
| Pneumatic Applications - Characteristic Values Force F ［KN］ |
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Height H ［mm］
| 160 | 17.1 | 23.0 | 29.0 | 35.0 | 41.2 | 47.3 | 11.8 |
| 140 | 20.0 | 26.8 | 33.7 | 40.6 | 47.7 | 54.5 | 10.7 |
| 120 | 22.3 | 29.8 | 37.3 | 44.9 | 52.7 | 60.2 | 9.5 |
| 100 | 24.1 | 31.9 | 40.0 | 48.1 | 56.3 | 64.3 | 8.2 |
| 80 | 25.3 | 33.4 | 41.9 | 50.3 | 58.8 | 67.1 | 6.6 |
| 60 | 26.0 | 34.5 | 43.4 | 52.0 | 60.8 | 69.1 | 4.6 |
Air Spring GUOMAT 1B53014 Reference FS 530-14 CI Contitech
Product Features
- Excellent shock absorption performance
GUOMAT air spring adopts high-quality imported rubber, which has excellent shock absorption performance
The vibration action area of GUOMAT air spring is the middle part of the rubber air bag. The use of air spring can effectively reduce vibration and
reduce noise.
- Stable state and quality assurance
Each of our products will be tested for air tightness before delivery to ensure the quality of the product.

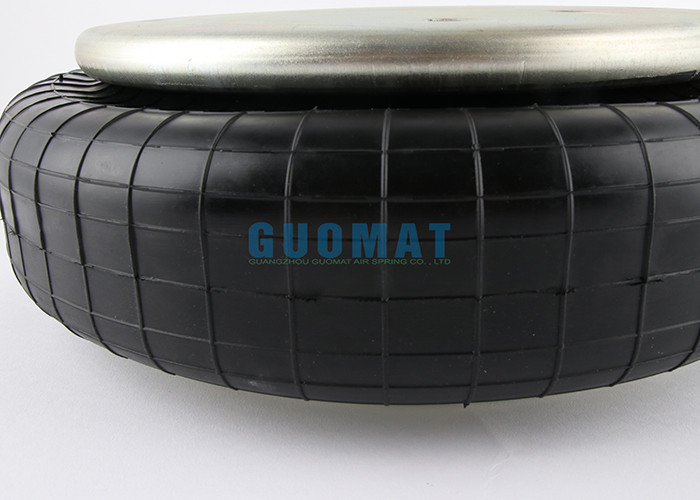

The Real Pictures of GUOMAT NO. 1B53014-1/4
