2B5240 Industrial Air Spring Double Convoluted Type Air Suspension Bag With Gas Hole

Brand Name : GUOMAT

Model Number : 2B5240

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Rubber Bellow and Aluminum Cover

Warranty : 1 Year Warranty

MOQ : 10 Pieces

Certificate : ISO/TS16949:2009

Fuction : Vibration Isolation

Service : Sample Order

Suspension : Air Spring

Position : Industrial Machine

Contact Now

Industrial Air Spring 2B5240 Double Convoluted Type Air Suspension Bag With Gas Hole

Product Description

Product Name

Air Spring Bags

Description

Truck Spare Parts Air Spring Shock Absorber Spring

MOQ

10 PCS

Warranty

12 Months

Material

Rubber

Package

Carton/Cartons

Payment

L/C, T/T ,Western Union,PayPal

Port of shipment

Huangpu Guangzhou

Shippment

Bye sea, By air, by DHL Fedex

The Following are the Detailed Technical Parameters of 2B5240

Top Plate Screw (Nut) Teeth: 2X3/8-16UNC

The Screw Center Distance of the Top Cover Plate: 44.5mm

Bottom Cover Plate Screw (Nut) Teeth: 3/8-16UNC

Air Hole: 3/8NPT

The Distance Between the Air Hole and the Screw: 22mm

Rubber Bellows Diameter: 121mm

The Stroke: 121mm

Top Cover Plate Diameter : 111 mm

Bottom Cover Plate Diameter: 111 mm

Air Spring
Air springs are rubber and fabric air cells that maintain air pressure to support loads and isolate passengers and cargo from the impact of movement caused by road irregularities.

As the air pressure increases, the air spring can carry more loads while the spring rate increases. The larger the air spring, the greater the maximum load it can support.

Industrial Air Springs
Industrial air springs are widely used in papermaking machinery, vehicle testing equipment, mechanical fixtures, vibration tables, etc. Effectively improve the working efficiency, safety and service life of the equipment. In these fields, products play an important role in shock absorption, lifting, support and so on. Help customers save manufacturing costs and win more economic profits.
1. The product has the characteristics of low cost, wide application and simple operation.
2. Long service life, no need for maintenance and lubrication.
3. This product is flexible in expansion and contraction, strong in carrying capacity, convenient in design and simple in structure.
4. No friction medium, soft medium.

Important Information about Installing Air Springs!
For your safety and to prevent possible damage to your vehicle, do not exceed the maximum load recommended by the vehicle manufacturer (GVWR). Although your Air Helper springs are rated for a maximum inflation pressure of 100psi, this pressure may put you under too much load on some vehicles. It is best to have your vehicle weighed once it is fully loaded and compare that weight to the maximum allowed. Check your owner's manual or the maximum load plate listed on the driver's side door for your vehicle. When inflating the air assist spring, increase the air pressure by a small amount, checking the pressure inflation frequently during the process. Air springs require much less air than tires and therefore inflate more quickly.

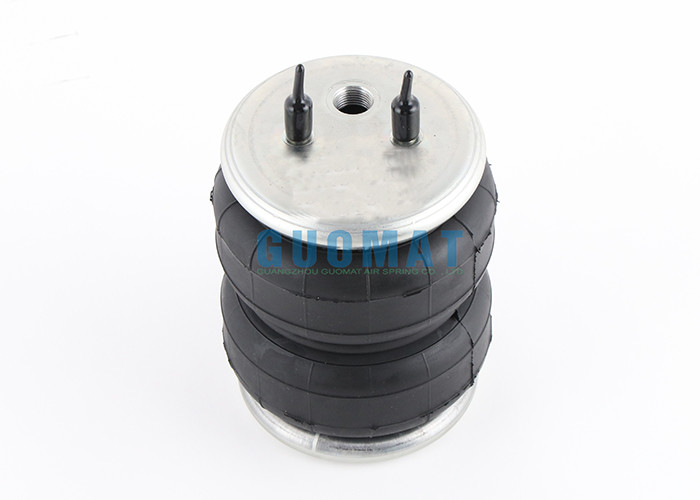

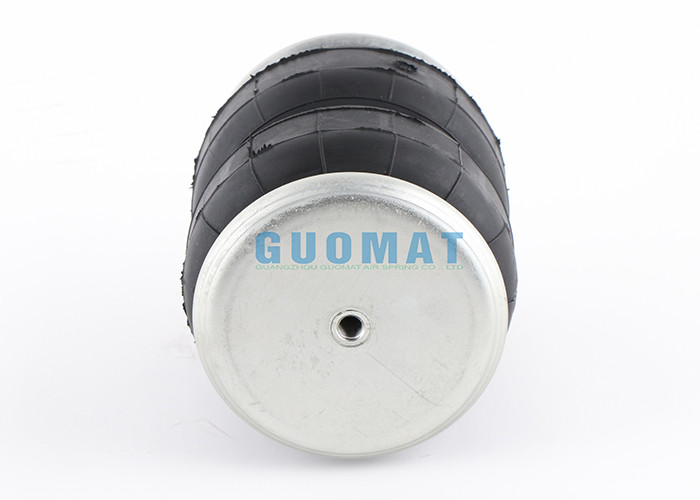

Related Pictures of 2B5240

2B5240 Industrial Air Spring Double Convoluted Type Air Suspension Bag With Gas Hole2B5240 Industrial Air Spring Double Convoluted Type Air Suspension Bag With Gas Hole
