Contitech FD120-20 509 Industrial Air Spring 2B8-150 Goodyear Double Convoluted Air Bags

Name: Contitech FD12020 509 Industrial Air Spring 2B8150 Goodyear Double Convoluted Air Bags
Brand: GUOMAT
Price: 59.9 USD

China Contitech FD120-20 509 Industrial Air Spring 2B8-150 Goodyear Double Convoluted Air Bags wholesale

Brand Name : GUOMAT

Model Number : W01-358-7325

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6PCS

Price : $59.9-69.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Rubber + Steel

Warranty : 12 Months

Operation : Gas-filled

Air Hole : G3/4

The Stroke : 205mm

Quality : 100 % Tested

Color : Black

Air Spring : Rubber Bellow Air Spring

Contact Now

Contitech FD120-20 509 Industrial Air Spring 2B8-150 Goodyear Double Convoluted Air Bags

Product Information

Product Name:Industrial Air Spring

Description:Double Convoluted Air Spring Bags

MOQ:10 PCS

Warranty:12 Months

Material:Rubber+Steel

Package:Carton/Cartons

Payment:L/C ;T/T ;Western Union;Paypal

Port of Shipment:Huangpu ,Guangzhou

Shippment:By sea, By air, by DHL Fedex

OEM Manufacturer Number

Bellow Number: 2B 20-1

Firestone: W01-358-7325

Firestone: W01 358 7325

Firestone: W013587325

Firestone: W01-358-7326

Firestone: W01 358 7326

Firestone: W013587326

Contitech: FD120-20 509

Contitech: FD 120-20 509

Contitech: FD120-20509

Contitech: FD 120-20 509

Goodyear: 2B8-150

Goodyear: 2B8-153

Goodyear: 2B8-550

Goodyear: 2B8 150

Goodyear: 2B8 153

Goodyear: 2B8 550

Goodyear: 2B 8-150

Goodyear: 2B 8-153

Goodyear: 2B 8-550

Goodyear Flexmember: 579923530

Goodyear Flexmember: 579-92-3-530

Triange: 6392

Triange: 4509

E.R.F: 1398567

American Carrier: 800 3006

Mac-k truck: 227QS32

Mac-k truck: 57QK1113

Hendrickson: Na1821

Hendrickson: S14395

Ridewell: 1003587325C

SAF Holland: 57007325

Sauerl: P10754

Terberg: 21065660

Texas Truck

Watson&Chalin: As0030

Goodyear 2B8-150 Air Bellow Bags Technical Data

Cover Plate	Top Cover Plate Diameter:141mm
Cover Plate	Bottom Cover Plate Diameter:141mm
Air Inlet	G3/4
Blind Nut	Screw Center Distance Of Top Cover Plate:70mm
	Screw And Gas Hole Distance Of Top Cover Plate:73mm
	Top Cover Plate Screw (Nut) Tooth:2XM8X1.25
	Bottom Cover Plate Screw (Nut) Tooth:XM8X1.25
Rubber Bellow	Rubber Bellow MAX Diameter:193mm
Rubber Bellow	The Working Stroke:205mm

GUOMAT 2B Type Air Spring
GUOMAT	CONTITECH	FIRESTONE	GOODYEAR
2B5241	FD 200-19 724	W01-358-6884
2B5242	FD 200-19 539	W01-358-6890
2B5243	FD 200-19 505	W01-358-6897	2B9-229
2B5244	FD 200-19 319	W01-358-6900
2B5245	FD 200-19 310	W01-358-6902	2B9-201
2B5246	FD 200-19 315	W01-358-6905	2B9-206
2B5247	FD 200-19 362	W01-358-6908	2B9-210
2B5248	FD 200-19 320	W01-358-6910	2B9-200
2B5249	FD 200-19 504	W01-358-6926
2B5250	FD 200-19 452	W01-358-6932	2B9-246
2B5251	FD 200-19 499	W01-358-6935
2B5252	FD 200-19 450	W01-358-6940	2B9-230
2B5253	FD 200-19 448	W01-358-6941	2B9-265
2B5254	FD 200-19 506	W01-358-6949
2B5255	FD 200-19 510	W01-358-7788	2B9-245
2B5256	FD 200-22 524	W01-358-7795	2B10-226
2B5257		W01-358-7892
2B5261	FD 200-22 529	W01-358-6883
2B5262	FD 200-22 706	W01-358-6886
2B5263		W01-358-7897
2B5286
2B5271	FD 200-25 453	W01-358-6927	2B9-218

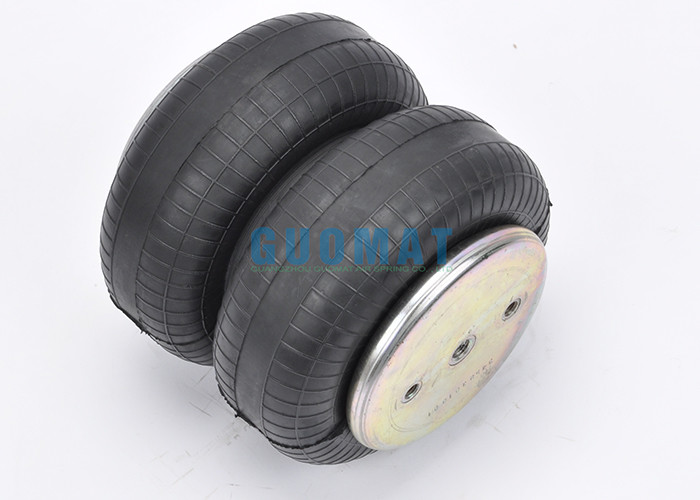

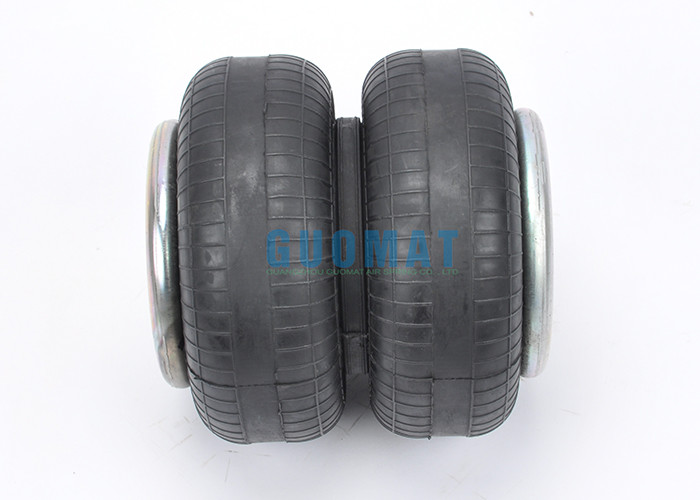

Product Photo

Product Tags:

FD120-20 509 Industrial Air Spring

Double Convoluted Industrial Air Spring

Goodyear Double Convoluted Air Bags

Contitech FD120-20 509 Industrial Air Spring 2B8-150 Goodyear Double Convoluted Air Bags Images
