Truck Spare Parts Firestone Air Balloon W01-M58-6338 Contitech 4810NP05 Air Spring
Essential Details
| Item | Value |
| Type | Air Suspension Spring |
| OEM Number | W01-M58-6338 |
| Warranty | 12 Months |
| Material | Natural Rubber |
| Truck Model | Heavy Duty Truck |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Package | Neutral Carton Packing |
| MOQ | 10 Pieces |
| Quality | High-Quality |
| Position | Auto/Truck parts |
| Application | Auto Suspension Systems |
Manufacturer Numbers
CONTITECH 4810NP05
CONTITECH 4810 NP 05
CONTITECH 4810 N P05
FIRESTONE W01-M58-6338
FIRESTONE W01M586338
FIRESTONE W01 M58 6338
GOODYEAR 1R14-730
GOODYEAR 1R14 730
PHOENIX 1D28A-10
DUNLOP D13B25
CF GOMMA 1T19E-1
CF GOMMA 205456
TAURUS KR621-18
SAF 3.229.0027.00
3.229.2127.00
3.229.2227.00
| Contitech | 4810np05 | Firestone | w01-m58-6338 |
| Firestone | 1T19F-7/L-7 | Goodyear | 1r14-730 |
| SAF | 3.229.0027.00 | SAF | 3.229.2127.00 |
| SAF | 3.229.2227.00 | Contitech | 4810 n p05 |
Technical Data
Gas Hole : M22x1.5
Bottom Piston Diameter : Ø260mm
Piston Bolt Tooth : 4 pieces M12
Middle faster between center Bolt : 200 mm
Top Cover Plate Bolt or Stud:2 pieces XM12
Top Cover Plate Diameter: Ø287 mm
Screw Center Distance of Top Cover Plate : 210 mm
Distance Between Stud and Central Axis : 25 mm
Distance Between Gas Hole and Central Axis : 95 mm
Net Weight:12.524kg
Gross Weight:13.074kg
Box Weight:0.55kg
Packing Size:29*29*38
Air Spring Application
►For Bus
Air spring is used by more suspension manufacturers because it can carry a lot of weight and improve safety
►For Trailer
Trailer Air Springs Trailers using air suspension produce less wear than trailers using steel plate, resulting in longer trailer life, lower operating costs, less downtime, and less expensive onboard equipment failure.
►For Truck
Air springs can improve the driver experience. Installing the air spring in the cab can reduce the vibration and noise of the vehicle, thus providing a more comfortable and safer driving environment for the driver.
Causes of Air Spring Leaks in Trucks
| 1. Air springs are used for a long time. |
| 2. The skin bag is damaged due to touching sharp objects. |
| 3. The top rubber or sealing ring is damaged, which will cause gas leakage. |

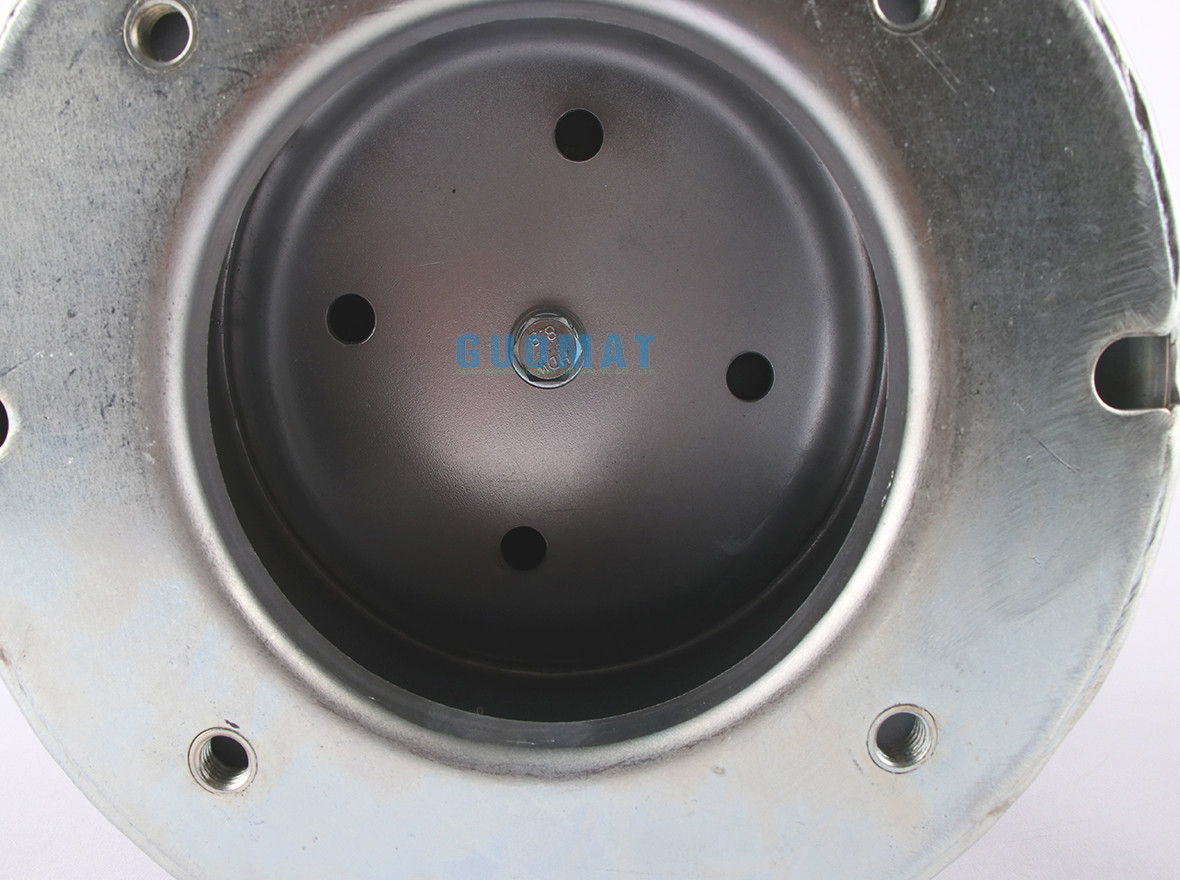

Product Pictures
Product Tags:
|
|
Contitech 4810NP05 Truck Air Springs Firestone Air Balloon W01-M58-6338 Images
|
