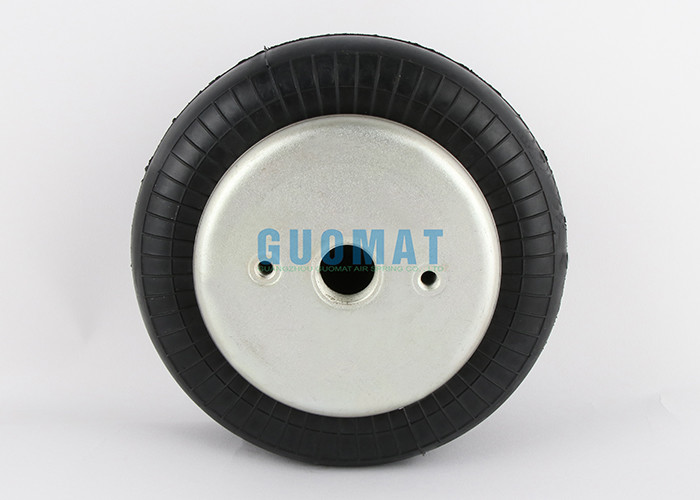

FD120-17 CI Contitech Industrial Rubber Bellow Air Spring With G1/4 Gas Hole Airkraft 2B-181
Product Description
| MANUFACTURER | PART NUMBER |
| Firestone | W01-M58-6353 |
| Firestone | W01M586353 |
| Firestone | W01 M58 6353 |
| Firestone | WO1M586353 |
| Firestone | WO1 M58 6353 |
| Firestone | WO1-M58-6353 |
| Contitech | FD120-17 |
| Contitech | FD 120-17 |
| Contitech | FD12017 |
| Contitech | FD 120 17 |
| Airkraft | 113054 |
| Airkraft | 2B-181 |
GUOMAT NO.2B12017 Technical Data
►Cover Plate
Top Cover Plate Diameter:135mm
Bottom Cover Plate Diameter:135mm
►Air Inlet/Gas Hole/Air Fitting
Air Inlet:G1/4
Air Inlet:G3/4
Air Inlet:G3/8
Air Inlet:RC3/8
►Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth:2XM8X1.25
Screw Center Distance of Top Cover Plate:70mm
Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25
Screw Center Distance of Bottom Cover Plate:70mm
►Rubber Bellow
Rubber Bellow MAX Diameter:215mm
Natural Height:167mm
The Working Stroke:MAX 230mm to MIN 75mm
Maximum Height:230mm
Minimum Height:75mm
Compression Height:155mm
| Vibration Isolation Applications - Dynamic Eigenvalues -------Design Height H :190mm , Min 175mm |
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Load ［KN］ | 3.8 | 5.2 | 6.5 | 8.0 | 9.3 | 10.6 | 3.2 |
| Stiffness ［N/cm］ | 600 | 830 | 1060 | 1290 | 1520 | 1750 |
| Natural Frequency ［Hz］ | 2.1 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Pneumatic Applications - Static Eigenvalues -------Load ［KN］ |
| Pressure P［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Height H ［mm］ | 200 | 3.4 | 4.8 | 5.9 | 7.3 | 8.5 | 9.7 | 3.4 |
| 180 | 4.2 | 5.7 | 7.1 | 8.6 | 10.1 | 11.5 | 3.1 |
| 160 | 4.9 | 6.5 | 8.1 | 9.9 | 11.5 | 13.1 | 2.8 |
| 140 | 5.5 | 7.2 | 9.1 | 11.0 | 12.7 | 14.5 | 2.4 |
| 120 | 6.0 | 7.9 | 9.9 | 12.0 | 14.0 | 15.8 | 2.1 |
| 122 | 6.4 | 8.5 | 10.7 | 12.9 | 15.1 | 17.0 | 1.6 |
| 80 | 6.8 | 9.1 | 11.3 | 13.7 | 16.0 | 17.9 | 1.2 |
Air Spring
The air spring consists of a flexible elastomer rubber body with nylon fabric reinforcement, and a rust-proof plate with air intake and mounting blind nuts. Rubber bellows can be used as vibration isolators, and air springs can absorb up to 99% of harmful vibrations, avoiding further damage to machines and metal structures. At the same time, they reduce noise levels.
