Industrial Air Bellow Contitech FS40-6 With Cover Plate Convoluted Air Spring Presses
Product Description
| Part Number | 1B4060 |
| Failure Testing | ≥3 millions |
| Working Temperature | -40℃ bis +70℃ |
| Technical Data | Top Cover Plate Diameter:90mm |
| Bottom Cover Plate Diameter:90mm |
| Gas Hole / Air inlet:G1/8 |
| Rubber Bellows MAX Diameter:145mm |
| The Working Stroke:MAX 110 mm to MIN 50 mm |
| Top Cover Plate Screw (Nut) Tooth:1XM8X1.25 |
| Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25 |
| Screw And Gas Hole Distance of Top Cover Plate:20mm |
| Screw Center Distance of Bottom Cover Plate:20mm |
OEM Number Information
Contitech : FS 40-6
Contitech : FS40-6 1/8 M8
Contitech : FS40-6 M8 1/8
Contitech : FS40-6 G1/8 M8
Contitech : FS40-6 M8 G1/8
Contitech : FS 40-6 1/8 M8
Contitech : FS 40-6 M8 1/8
Contitech : FS 40-6 G1/8 M8
Contitech : FS 40-6 M8 G1/8
Phoenix : SP1B04
The application of rubber air spring in vehicle suspension system
The suspension method using rubber air springs as elastic elements is called an air suspension system. At present, almost all high-end passenger cars, sedans and tractors are equipped with air suspension system. When the vehicle adopts the air suspension system, the automatic adjustment of the body height can be realized, so that the body height remains unchanged, and the natural frequency of the rubber air spring is low. The vibration reduction and sound insulation effect is good, which can greatly improve the smooth running of the vehicle, the softness and comfort of the seat, and at the same time, it can effectively protect the precision instruments and electrical equipment on the vehicle itself and transported, reduce maintenance times and reduce maintenance costs, Extend the service life of the vehicle, greatly reduce the impact of the vehicle on the road surface, and prolong the service life of the road surface.
We have other single convoluted air spring parameters
| GUOMAT | Contitech | Air Hole | Working Stroke(mm) |
| 1B1209 | FS 120-9 | G3/4 | 135 |
| 1B5330 | FS 330-11 474 | G1/4 | 150 |
| 1B7070 | FS 70-7 | G1/4 | 115 |
| 1B53014 | FS 530-14 | G3/4 | 185 |
| 1B33011 | FS 330-11 | G3/4 | 89 |
How to order ?
Step 1, please tell us what model and quantity you need;
Step 2,then we will make a PI for you to confirm the order details;
Step 3,when we confirmed everything ,you can arrange the payment;
Step 4,finally we deliver the goods within the stipulated time.
After-Sales Service
All our products are guaranteed for 1 year;
If you have any questions after receiving the goods, please feel free to contact us, as an experienced manufacturer, you can rest assured that we guarantee the quality and after-sales service.

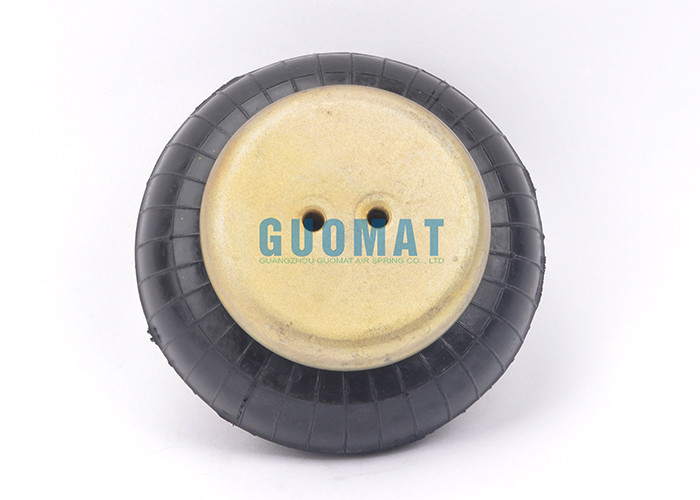

Real Pictures
