Firestone W01-M58-6165 Single Convoluted Air Spring Norgren PM/31081 Air Lift Suspension

Name: Firestone W01M586165 Single Convoluted Air Spring Norgren PM31081 Air Lift Suspension
Brand: GUOMAT
Price: 49.9 USD

China Firestone W01-M58-6165 Single Convoluted Air Spring Norgren PM/31081 Air Lift Suspension wholesale

Brand Name : GUOMAT

Model Number : FS 120-9

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $49.9-59.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Rubber+Metal

Warranty : 12 Months Warranty

Type : Firestone Industrial Air Springs

Air Spring : Air Vibration Industrial

Air Connection : G3/4

Contitech : FS 120-9

Weforma : WBE 300-E1

Packing Size : 24*24*24(cm)

Contact Now

Firestone W01-M58-6165 Single Convoluted Air Spring Norgren PM/31081 Air Lift Suspension

Product Description

Product Name	Industrial Rubber Bellow	Place of Origin	Guangdong, China
Material	Rubber + Steel	Warranty	1 Year
Brand Name	GUOMAT or Neutral	MOQ	1 PCS
Single Gross Weight	2.0KG	Single Package Size	242424(cm)

Cross Reference Number

Firestone	W01-M58-6165
Firestone	W01M586165
Firestone	W01 M58 6165
Firestone	w01-m58-6165
Firestone	w01 m58 6165
Firestone	w01m586165
Firestone	WO1-M58-6165
Firestone	WO1M586165
Contitech	FS120-9
Contitech	FS 120-9
Contitech	FS 120 9
Dunlop(FR)	8''x1
Dunlop(FR)	S08101
Bosch	822419003
Bosch	822 419 003
Festo	EB-215-80
Festo	EB 215 80
Festo	EB21580
Norgren	PM/31081(8x1)
Norgren	PM31081
Norgren	PM 31081
Weforma	WBE 300-E1
Weforma	WBE 300 E1
Weforma	WBE300E1
Airtech	140293
Airtech	111003
Airtech	1B-190FB
Megatech	1S120-9 3/4 M8
Megatech	1S 120 M8 3/4

Detailed Technical Parameters of GUOMAT 1B1209

Part Number : 1B1209

Working temperature : -40°C bis +70°C

Failure testing : ≥3 millions

Top Cover Plate Diameter : 135mm

Bottom Cover Plate Diameter : 135mm

Gas Hole / Air inlet : G3/4

Top Cover Plate Screw (Nut) Tooth : 2XM8X1.25

Bottom Cover Plate Screw (Nut) Tooth : 2XM8X1.25

Screw Center Distance of Top Cover Plate : 70mm

Screw Center Distance of Bottom Cover Plate : 70mm

Rubber Bellows MAX Diameter : 215mm

The Working Stroke : MAX 115 mm to MIN 50 mm

Packaging Details

Net Weight: 2.0kg

Gross Weight: 2.2kg

Packing Size: 24cm*24cm*24cm

Package: Neutral brown carton packing or according to customer's request.

Mark: According to customer requirements.

Delivery Time: Usually 2-8 working days after receive your payment.

As it is international shipping, we need time to pack according to strict packing requirements to prevent the goods from being damaged during shipping.

We also have GUOMAT NO. 1B120-9 with G1/4 air hole

Manufacturer Part Number

Firestone W01-M58-6166

Firestone W01M586166

Firestone W01 M58 6166

Contitech FS 120-9

Contitech FS120-9

Contitech FS 1209

Dunlop(FR) 8’’x1

Dunlop(FR) S08100

Bosch 822419008

Bosch 822 419 008

Weforma WBE 300-E2

Weforma WBE 300 E2

Weforma WBE300E2

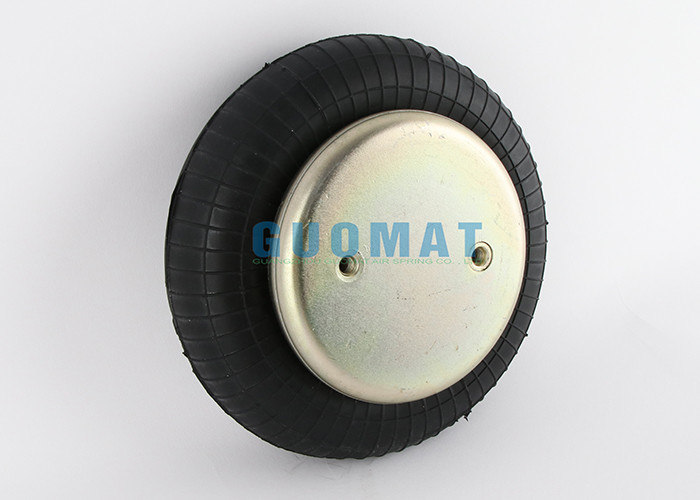

The following is the real picture
