W01-358-7008 Firestone Industrial Rubber Bellows Actuator Goodyear 1B12-300 Air Suspension
Product Description
| GUOMAT NO. | 1B5330 | Material | Rubber+Steel |
| Warranty | 1 Year | MOQ | 1 Pcs |
| Payment | L/C,T/T,Western Union,PayPal | Delivery Time | 2-8 working days,Depend on |
Interchange Number
Firestone : W01-358-7008
Firestone : W013587008
Firestone : 7008
Firestone : w013587008
Firestone : w01-358-7008
Firestone : W01/358/7008
Firestone : w01/358/7008
Contitech : FS330-11474
Contitech : FS 330-11474
Contitech : fs330-11474
Goodyear : 1B12-300
Goodyear : 1B 12-300
Goodyear : 1B12-313
Goodyear : 1B 12-313
Triangle : 6374
Triangle : 4474
Holland : 90557226
Holland : 9055 7226
1B12-300 Air Bag Technical Specific Parameters
| Cover Plate | Top Cover Plate Diameter:231mm |
| Bottom Cover Plate Diameter:231mm |
| Air Inlet | 1/4 NPTF |
| Blind Nut | Screw Center Distance Of Top Cover Plate:157.5mm |
| Screw Center Distance Of Bottom Cover Plate:157.5mm |
| Screw And Gas Hole Distance Of Top Cover Plate:73mm |
| Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
| Rubber Bellow | Rubber Bellow MAX Diameter:325mm |
| The Working Stroke:MAX 160mm to MIN 55mm |
| Maximum Height:160mm |
| Minimum Height:55mm |
| Compression Height:105mm |
How to quickly replace the faulty industrial spring?
1. Before installing the industrial air spring, we should evenly apply the lubricant (tire lubricant) to the upper and lower bases of the spring, which can reduce the friction caused by installing the new air spring, and at the same time protect the air spring and its contact position. damaged.
2. Place the new industrial air spring on a dry flat surface, hold both sides of the spring firmly with both hands, and press down on the spring until the volume of the spring is large enough to accommodate the "upper and lower base" range.
3. When installing, combine the bottom of the industrial air spring with the lower base, and then adjust the top of the spring to enter the upper base; when the industrial air spring is basically between the upper and lower bases, open the air pressure valve to inflate the spring; at the same time, Maintenance personnel need to stabilize the air spring with both hands to prevent excessive displacement.
4. After 10 to 15 seconds of inflation, the industrial air spring is fully inflated. At this time, spray foam water on the projectile body, and carefully check whether the new industrial air spring is well sealed and whether the projectile body is damaged. If there is no problem, the installation will be completed and it can operate normally.
Air Spring Shock Absorbers for Vehicles
A6 4F C6 4F0616039AA 4F0616040P
A8 D3(Front) 4E0616039AF 4E0616040AA
A8 D3(Rear) 4E4616001A 4E4616002A
Q7(Front) 7L8616039D 7L86160040D
Q7(Rear) 7L8616019C 4L0616020
VW 3D0616039D 3D0616040D 3D0616001J 3D0616002J
3D0616039H 3D0616039L 3D0616039 3D5616039
3D7616039 3W0616039 3D0616040L 3D0616040M
W230 A2303200438 A2303200338 A2303208613 A2303208513 2303200213 2303204138 2303200213 2303204138 2303206713 2303208513
W251 A2513201931 2513203013 2513202231 2513200730 2513200730 2513203113 2513200425
W164 A1643201204 A1643200731 1643206013 1643204513 1643205813 1643206113 1643202031 1643202431 1643200130 1643200130
W220(4 Matic) A2203202238 A2203202138
W220 2203202438 2203205013
W221(4 Matic) A2213200438 A2213200538
W221 A2213205613 A2213205513
W211 A2113206113 A2113206013 2113209513 2113201938 2113209613 2113202038 2113209313 2113205338 2113205538 2113209413 2113208413
2113205638 2113205438 2113205613

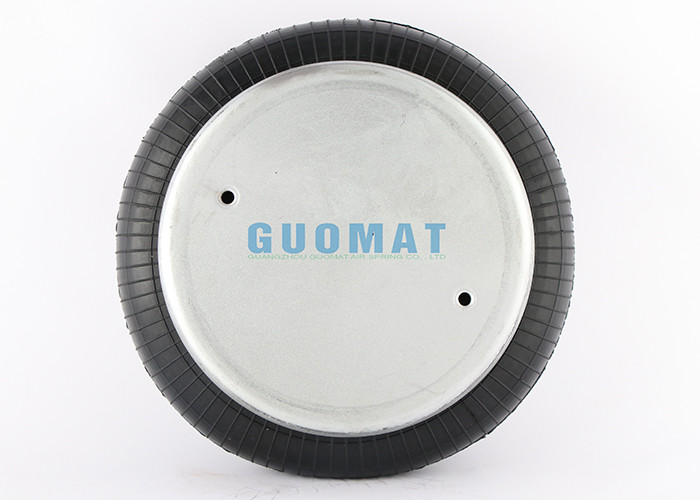

Product Picture
