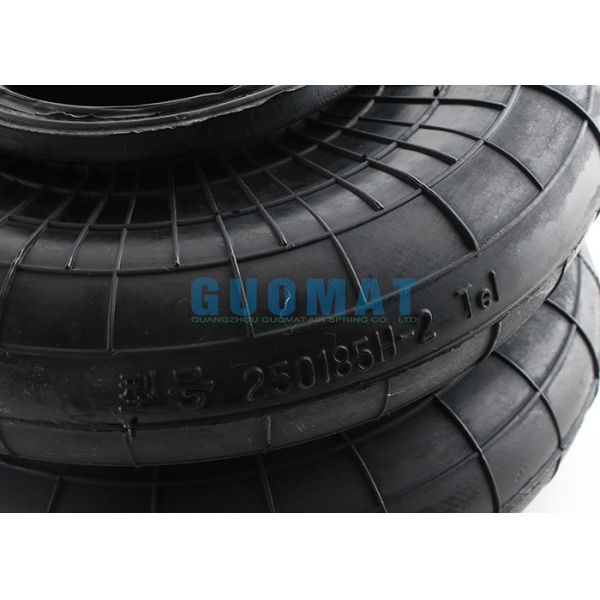

Double Convoluted Natural Rubber Air Spring 250185H-2 Industrial Single Bellow Air Bag
Product Description
| Item Name | Air Springs Bellows Actuator |
| Item Number | 250185H-2 |
| Material | High-Quality Rubber |
| Warranty | 12 Months |
| MOQ | 1 Piece |
| Package | Carton |
| Payment | L/C,T/T,Western,Union,PayPal |
| Delivery Time | 2-8 working day after receive your payment. |
The Technical Data of 250185H-2
Maximum Height : 195mm
Minimum Height : 80mm
Working Stroke : 115mm
Diameter Plates : 178mm
Max. load at 8 bar: 7.8 kN
Air connection : G 1/2=25Nm
Mounting thread : M8=12Nm
Material plates : aluminum
Temperature range: -40 to + 85°C
Rubber: CR elastomer
Rubber Bellow Max Diameter : 152.5mm
Required Installation Space : 195mm
The Distance of Mounting thread : 127mm
Number of Mounting thread : 4 pieces
Min Pressure : 0 bar
Cross Information
CONTINENTAL CONTITECH FD 76-14 DI CR
CONTINENTAL CONTITECH FD 76-14 DI G1/2
CONTINENTAL CONTITECH FD 76-14 DI G1/2 CR
CONTINENTAL CONTITECH FD 76-14 G1/2
CONTINENTAL CONTITECH FD 76-14 DI CR G1/2
CONTINENTAL CONTITECH FD 76-14 G1/2 M8
CONTINENTAL CONTITECH Bellow : FD 76-14 / FD76-14 / FD7614
FIRESTONE NO.:W01-R58-4070 / W01R584070 / W01R584070
FIRESTONE Style : 6"x2
DUNLOP FR : 6"X2 SP1646(COMPOSITE)
DUNLOP FR : 6"X2 SP2917(ALUMINIUM)
DUNLOP UK(Pneuride) : A 313300201 / A 31330 02 01 / A313300201
NORGREN : PM/31062 / PM 31062 / PM31062
NOMINAL(INCH) X CONVOLUTIONS:6"X2/6"X2/6X2
PARKER : 6"X2 9109001A
YS-AIR : YS-160-2VS / YS1602VS / YS1602VS
Other ZF Style Air Spring
| Product Item | Nominal Diameter | 0.7 Mpa Maximum Outer Diameter | Bearing Capacity at the Design Height | 0.7Mpa Natural Frequency | Stroke Range |
| 0.2Mpa | 0.5Mpa | 0.7Mpa | Minimum Compressed Height | Safe Stretch Height |
| 2ZF140110 | 90 | 160 | 121 | 316 | 450 | 2.5 | 60 | 125 |
| 2ZF160110 | 110 | 180 | 180 | 474 | 676 | 2.54 | 60 | 125 |
| 2ZF200110 | 150 | 220 | 353 | 899 | 1270 | 2.33 | 60 | 125 |
| 2ZF250110 | 200 | 270 | | | | | 65 | 130 |
| 2ZF280110 | 230 | 295 | 830 | 2117 | 3009 | 2.06 | 70 | 125 |
| 2ZF350110 | 300 | 370 | | | | | 65 | 130 |
| 2ZF500110 | 450 | 520 | 3116 | 8100 | 11400 | 2.32 | 90 | 130 |
| 2ZF110070 | 90 | 130 | 118 | 319 | 453 | 3.28 | 50 | 91 |
| 2ZF200170 | 150 | 220 | 334 | 863 | 1221 | 1.98 | 90 | 210 |
| 2ZF250170 | 200 | 270 | | | | | 90 | 210 |
| 2ZF280170 | 230 | 300 | 813 | 2102 | 2971 | 1.77 | 90 | 210 |
| 2ZF350170 | 300 | 370 | | | | | 90 | 215 |
| 2ZF400180 | 350 | 420 | 1883 | 4821 | 6901 | 1.9 | 100 | 215 |
| 2ZF420210 | 370 | 440 | | | | | 100 | 255 |
| 2ZF500180 | 450 | 520 | 3113 | 7990 | 11326 | 1.87 | 100 | 215 |
| 2ZF530180 | 480 | 550 | 3554 | 9147 | 12869 | 1.65 | 100 | 215 |
| 2ZF580180 | 530 | 600 | | | | | 100 | 220 |
| 2ZF620210 | 560 | 640 | 4878 | 12378 | 17430 | 1.39 | 120 | 240 |
| 2ZF420245 | 370 | 440 | 2046 | 5255 | 4384 | 1.48 | 150 | 320 |
| 2ZF620285 | 560 | 640 | 4688 | 11945 | 16972 | 1.39 | 145 | 330 |
