Dunlop SP 1538 Industrial Air Spring Sales W01-R58-4058 Firestone Rubber Air Bellows
Product Description
FIRESTONE
W01-R58-4058
DUNLOP
SP 1538
CONTITECH
FD 210-22 1/2 M10
NORGEN
M 31102(10X2)
SAMRO
H2500189
H2500021
10X2 SBR ASSEMBLY
Firestone W01R584058
Firestone W01-R58-4058
Firestone w01r584058
Firestone w01-r58-4058
Dunlop SP1538
Dunlop SP 1538
Samro H25 001 89
Samro H25 000 21
Norgen M31102
Norgen M/31102
Norgen M 31102
Contitech FD 210-22 DS
Contitech FD 210-22 1/2
Contitech FD 210-22 DS G1/2
Contitech FD 210-22 DS G1/2 CR
Contitech FD 210-22 DS CR G1/2
Airkraft 2B-255 113100
Granning 15807
Technical Parameter Details
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Bottom Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Cover Plate
Top Cover Plate Diameter : 210mm
Screw Center Distance of Top Cover Plate : 181mm
Bottom Cover Plate Diameter : 210mm
Screw Center Distance of Top Cover Plate : 181mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet :1/2 BSP
Rubber Bellow
Rubber Bellows MAX Diameter :254mm
Minimum Height : 70mm
10x2 Air Spring
Firestone : W01-R58-4048
Dunlop : SP 255
Firestone : W01-R58-4092
Dunlop : SP 1538
Convoluted Air Spring
| Firestone No. | Dimensions(Pouces) | Dunlop No. | Air Inlet | The Screw |
| W01-R58-40812 | 2 3/4 X3 | SP2910 | 1/4 BSP | M6X8 |
| W01-R58-4050 | 4 1/2 X1 | SP 2334 | 3/8 BSP | -M6(C'BORE) |
| W01-R58-4051 | 4 1/2 X2 | SP 2441 | 3/8 BSP | -M6 |
| W01-R58-4052 | 6X1 | SP1368 | 1/2 BSP | -M10X1.5 |
| W01-R58-4078 | 6X1 | SP2913 | 1/2 BSP | -M8X14 |
| W01-R58-4053 | 6X2 | SP1482 | 1/2 BSP | M10X1.5 |
| W01-R58-4070 | 6X2 | SP2917 | 1/2 BSP | -M8X1.25 |
| W01-R58-4095 | 6X3 | SP2861 | 1/2 BSP | M10X1.5 |
| W01-R58-4054 | 8X1 | SP1637 | 1/2 BSP | M10X1.5 |
| W01-R58-4055 | 8X2 | | 1/2 BSP | M10X1.5 |
| W01-R58-4056 | 8X3 | SP2863 | 1/2 BSP | M10X1.5 |
| W01-R58-4057 | 10X1 | SP2623 | 1/2 BSP | M10X1.5 |
| W01-R58-4059 | 10X3 | SP1539 | 1/2 BSP | M10X1.5 |
| W01-R58-4086 | 10X3 | SP1539 | | M10X1.5 |
| W01-R58-4060 | 12X1 | SP1640 | 1/2 BSP | M10X1.5 |
| W01-R58-4038 | 12X2 | SP2782NB | M16X1.5 | -M10X1.5 |
| W01-R58-4061 | 12X2 | SP921NB | 1/2 BSP | M10X1.5 |
| W01-R58-4073 | 12X2 | SP2665NB | M16X1.5 | M10X1.5 |
| W01-R58-4037 | 12X3 | SP2666NB | M16X1.5 | M10X1.5 |
| W01-R58-4062 | 12X3 | SP1542NB | 1/2 BSP | M10X1.5 |
| W01-R58-4091 | 12X3 | SP1642 | 1/2 BSP | M10X1.5 |
| W01-R58-4063 | 14 1/2 X1 | SP1643 | 1/2 BSP | M10X1.5 |
| W01-R58-4064 | 14 1/2X2 | SP257 | 1/2 BSP | M10X1.5 |
| W01-R58-4074 | 14 1/2 X2 | SP1988 | M22X1.5 | M10X1.5 |
| W01-R58-4075 | 14 1/2 X2 | SP257 | 1/2 BSP | M10X1.5 |
| W01-R58-4065 | 14 1/2X3 | SP1558 | 1/2 BSP | M10X1.5 |
| W01-R58-4100 | 14 1/2X3 | 14 1/2X3 4 PLY | 1/2 BSP | M10X1.5 |
| W01-R58-4066 | 16X1 | 16X1 | 1/2 BSP | M10X1.5 |
| W01-R58-4067 | SP1557 | 16X2 | 1/2 BSP | M10X2 |
| W01-R58-4068 | SP2141 | 16X3 | 1/2 BSP | -M10X1.5 |

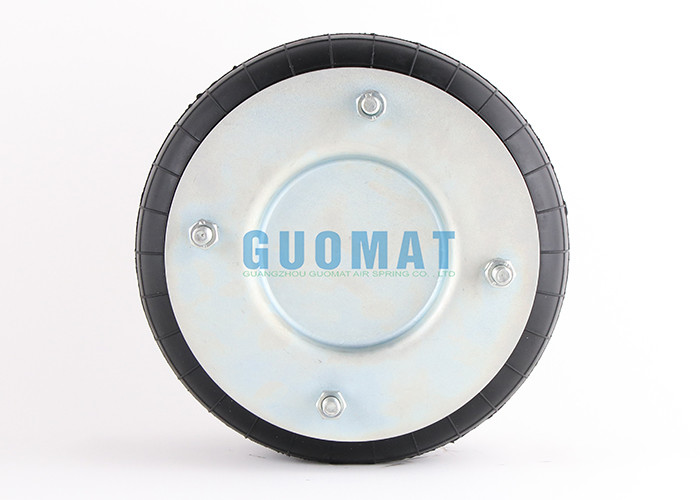

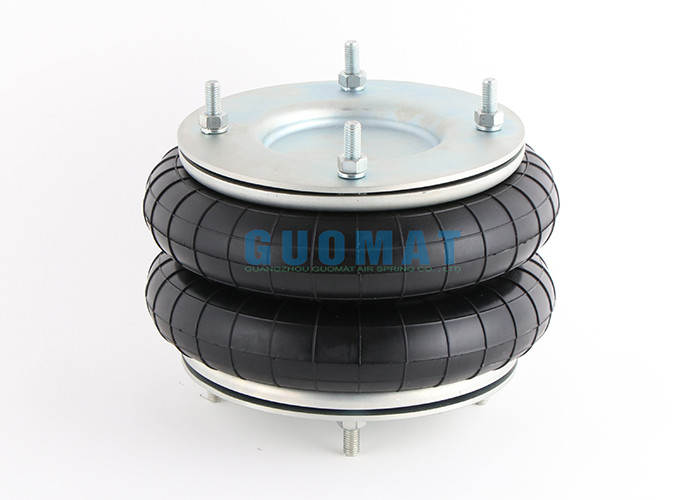

Product Picture
