Brand Name : GUOMAT
Model Number : FS1710-12
Certification : ISO/TS16949:2009
Place of Origin : GuangDong, China
MOQ : 6PCS
Price : $49.9-59.9/pc
Payment Terms : L/C, T/T, Western Union
Supply Ability : 1000pcs/week
Delivery Time : 2-8 work days
Packaging Details : Strong Carton Box Or As Customers Need
Product Name : Single Convoluted Air Bellow Spring
Other Name : Air Spring, Air Suspension, Air Bellow
Material : Steel+Rubber
Warranty : 12 months
service : OEM / Sample
Shock Absorber Type : Gas-Filled
Quality : 100% Tested
Min Pressure : 0 bar
Contitech Natural Rubber FS1710-12 RS Single Convoluted Air Spring For Industrial Machine
Product Information
Description: Convoluted Industrial Air Spring Air Suspension Bellows
Contitech : FS 330-11 474
Model:For Truck / Trailer/Industrial
Material: Rubber Steel
Condition:Brand new
Warranty:12 Months
Packing: Neutral Packing Or As Requirement
Delivery:after payment 2-8 working days
Payment terms: Paypal, Western Union ,TT,L/C
Technical Parameter
Min Pressure: 0 bar
Restoration Force to Minimum Height: ≤ 120 N
Total Weight (including snap rings, bolts, nuts and washers): 8.7KG
Vibration Isolation Applications - Dynamic Eigenvalues -------Design Height H :125mm , Min 110mm | |||||||
Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Volume V [I] |
Load [KN] | 53.6 | 70.6 | 87.5 | 110.0 | 126.7 | 145.7 | 25.0 |
Stiffness [N/cm] | 10190 | 12880 | 15510 | 18970 | 21540 | 24480 | |
Natural Frequency [Hz] | 2.2 | 2.2 | 2.1 | 2.1 | 2.1 | 2.1 |
Pneumatic Applications - Static Eigenvalues -------Load [KN] | ||||||||
Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Volume V [I] | |
Height H [mm] | 140 | 48.2 | 64.4 | 81.2 | 98.0 | 115.2 | 132.3 | 27.9 |
120 | 53.8 | 72.1 | 90.6 | 109.3 | 128.2 | 147.2 | 23.9 | |
100 | 60.2 | 80.2 | 100.5 | 121.0 | 141.6 | 162.3 | 19.2 | |
80 | 65.0 | 86.6 | 108.5 | 130.1 | 152.1 | 174.0 | 14.8 | |
60 | 67.8 | 90.2 | 112.9 | 135.5 | 158.2 | 180.8 | 9.5 |
Other Related Rubber Air Spring
FS40-6,FS50-5,FS70-7,FS100-10,FS120-9,FS120-10,FS120-12,FS200-10,FS330-11,FS330-14
FS530-11,FS530-14,FS960-12,FS1330-11,FD40-10,FD70-13,FD110-15,FD120-17,FD120-20
FD200-19,FD200-22,FD200-25,FD330-22,FD330-30,FD530-35,FD960-22,FT330-29,FT430-32
FT530-32,FT530-35,FT960-34,FD1330-25,FT1330-35
Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. As an actuator, air springs provide linear or angular motion. These air springs offer a favorable stroke-to-compressed-height ratio when compared to air cylinders, and can accept a wide variety of actuation media such as air, water, nitrogen or anti-freeze. As an isolator, air springs are effective in reducing the harmful effects of vibration. They can simultaneously isolate vibration and regulate load height, as well as allow for consistent vibration isolation under varying loads.We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convolute Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Air Spring Application Examples
• Material Handling Industry
• Lumber Industry
• Aluminum Can Recycling
• Container Manufacturers
• Paper Industry
• Press Manufacturing
• Vibrating Equipment & Conveyors
• Shaker Screens
• Steel Manufacturing Equipment
• Automotive Related (Plate Glass)
• Oil Exploration
• Foundries
• Bottling Equipment
• Valve Manufacturing
• Logging Industry
• Rubber Industry
• Amusement Rides
• Food Packaging
• Scissor Lift Manufacturing
• Glass Manufacturing (Plate Glass)
• Sewage Processing Equipment

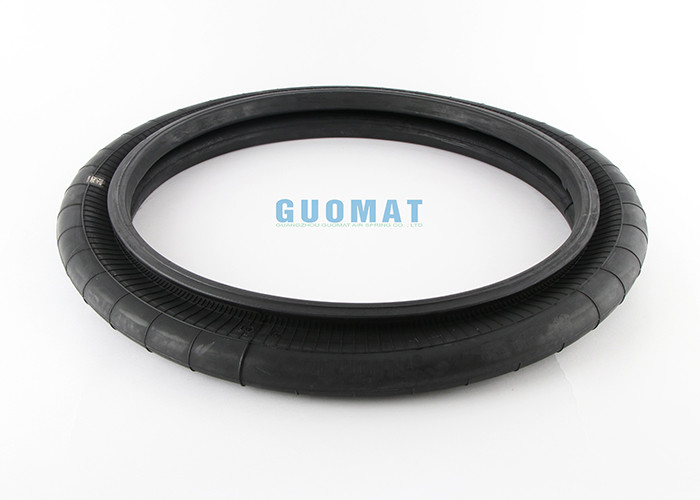

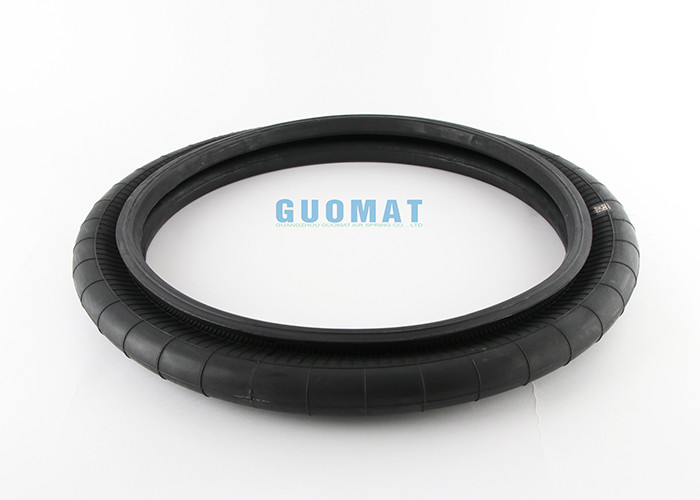

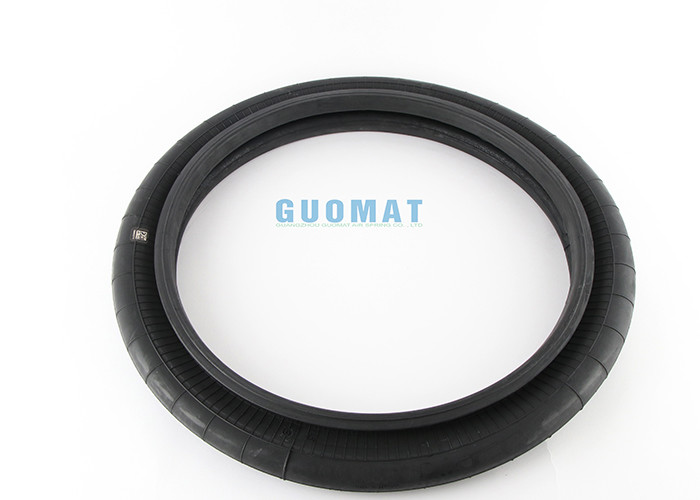

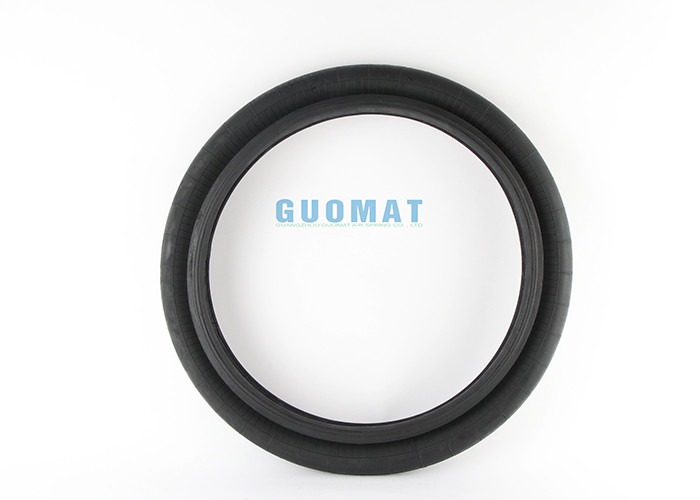

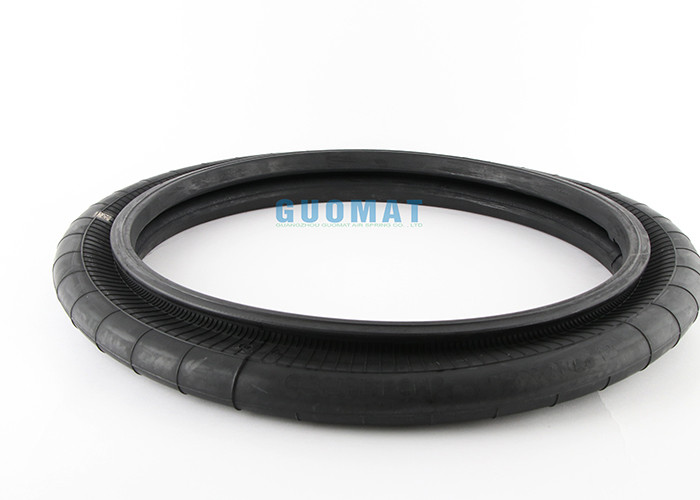

Air Spring Picture
![]() |
Contitech FS1710-12 RS Single Convoluted Air Spring Natural Rubber For Industrial Machine Images |
