Durable Firestone W01-358-6910 Suspension Spring Contitech Air Lift/Air Ride/ Air Spring
Product Introduction
| Item | Value |
| OEM.NO. | W01-358-6910 |
| Type | Air Spring |
| Warranty | 12 Months |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Position | Auto/Truck parts/Industrial equipment |
| Application | Auto Suspension Systems |
| Cross references |
| Firestone | W01-358-6910 | Contitech | FD200-19 320 |
| Goodyear | 2B9-200 | Goodyear | 578423202 |
| Triangle | 6325/4320 | Taurus | KF218-6910 |
| Original parts |
| Brake&Wheel | M3501 | Dina | A812719/AZ812719 |
| Dayton | 3546910 | Leland | Sc2011 |
| Navistar | 554783C1 | Hendrickson | S8768/458433 |
| Ridewell | 1003586910C | SAF Holland | 57006910 |
| Trailers De | 133128 | Tuthill | 1371 |
| Watson&Chalin | AS-0001 | Watson&Chalin | AS-0156G |
2B200 Durable Firestone Suspension Spring Technical Data
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2X3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth :2X3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
Screw and Gas Hole Distance of Top Cover Plate:44.5mm
Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
Rubber Bellows
Rubber Bellows MAX Diameter: MAX.251mm
Rubber Bellows Natural Diameter :224mm
The Working Stroke : MAX 260 mm to MIN 75 mm
Maximum Height : 260 mm
Minimum Height :75 mmx
Compression Height :185 mm
We also have many sizes of air springs, if you need them, please contact me.
| Contitech | Goodyear | Firestone | Phoenix |
| 928N | 8042 | W01-095-0228 | 2E23A |
| 943N | 9001 | W01-095-0189 | |
| 973N | 8012 | W01-095-0198 | 1F21A |
| 945N | 9014 | W01-095-0063 | 1E21C |
| 975N | | W01-095-0437 | 1E10 |
| | | W01-095-0294 | |
| | | W01-358-9391 | |
| 4913NP02 | 1R14-753 | W01-095-0500 | 1D28H-16 |
| | 1R14-869 | | |
| 4159NP06 | | W01-M58-0736 | |
| 810NTB | 1R14-713 | W01-M58-0749 | 1DK28A4 |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 836MB | | W01-M58-0775 | 1DF25-4 |
| 836MB | 1R12-700 | W01-M58-0776 | 1DF25-1 |
| 836M2K1 | 1R12-711 | W01-M58-8721 | 1DF25-13 |
| 887M | 1R11-796 | W01-M58-0780 | |
| 889MK2 | | W01-M58-0781 | |
| | | W01-M58-0918 | |
| 4004NP02 | | W01-M58-0919 | |
| 4004NP02 | | W01-M58-0919 | |
| | | | |
| | | | |
| 6603NP02 | | | |
| 4183NP23 | | | |
| 4883N1P07 | | | |
| 6609NP01 | | | |

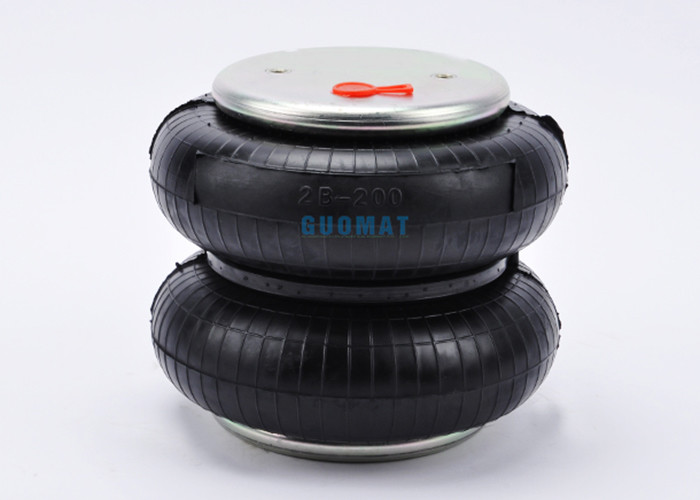

Product Image
