Brand Name : GUOMAT
Model Number : W01-358-8029
Certification : ISO/TS16949:2009
Place of Origin : GuangDong, China
MOQ : 6PCS
Price : $69.9-79.9/pc
Payment Terms : L/C, T/T, Western Union
Supply Ability : 1000pcs/week
Delivery Time : 2-8 work days
Packaging Details : Strong Carton Box Or As Customers Need
Product Name : Air Spring, Airbags, Air Suspension Spring
Material : Rubber + Steel
Warranty : 12 months
Operation : Gas-filled
Quality : 100% Tested
Plate Dia. : 231mm
Air Inlet : 1/4NPT
Application : Auto Suspension System
Truck Suspensions 3B12-310 / Triple Convoluted Air Spring W01-358-8029
Air Spring
Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load while the spring
rate increases.The larger the air spring, the greater the maximum load it can support.
Air Suspension
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs.Computer operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
Type | Triple Convoluted Air Spring | Item Number | 3B8029 |
Rubber Type | Natural Rubber | Specs | Three Convoluted |
Firestone | W01-358-8027/38 W01-358-8029 | Contitech | FT 330-29 466 |
Goodyear | 3B12-310 578933100 | Triangle | 6334/4466 |
Arvin Meritor | 200117 | Suspensions | 200117 |
Silent Drive | AS8027 | Histeer | 200117 |
3B 8029 Technical Data
Top Cover Plate Screw (Nut) Tooth :1/2-13UNC
Top Cover Plate Diameter: 231 mm
Distance Between Air Inlet And Bolt of Top Cover Plate Diameter:157mm
Screw Center Distance of Bottom Cover Plate : 157 mm
Bottom Cover Plate Diameter:231mm
Air Inlet/Gas Hole:1/4NPT
The Working Stroke:MAX 460 mm to MIN 117 mm
Rubber Bellows MAX Diameter:330mm
Features
Meticulously evaluated based on OEM specifications
Long-lasting and problem-free thanks to high strength fabric and rubber compounds
Reputation for superior performance
Reduces driver fatigue and increases attentiveness on the road
Engineered using the latest technological developments and improvements
Product Image
Please make sure the air ride fit your vehicle. Compare the air spring's hole size and hole spacing is very important!
![]() |

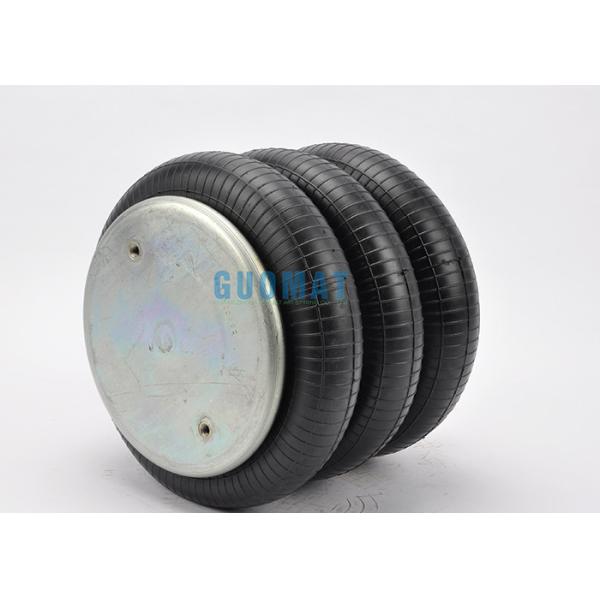

Truck Suspension 3B12-310 Triple Convoluted Air Spring W01-358-8029 Images |
