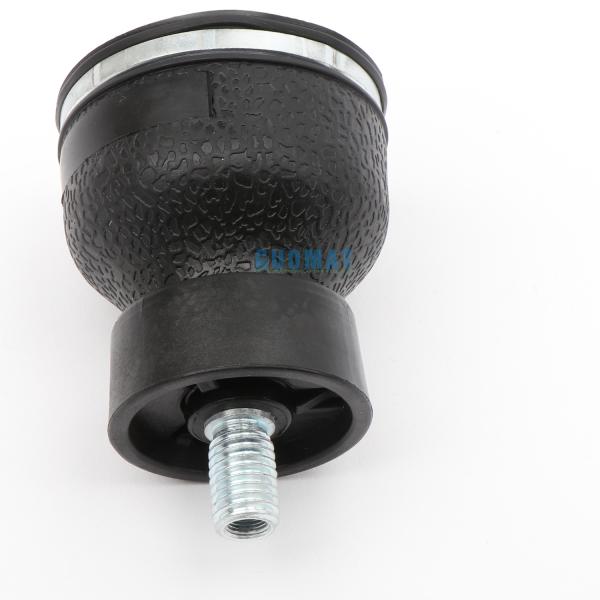

W02-358-3005 Firestone Air Spring With Brass Blind Stud and Stainless Steel Ring For MOUNTAIN/TRAIL BIKE
Cross OEM Of this item:
GUOMAT:G3005
Firestone Rubber bellows NO.:1M1A-0
Firestone NO.:W02-358-3005
Firestone NO.:W023583005
Firestone NO.: W02 358 3005
Style 1M1A-0
Two Ply Rubber Bellows
Description Assembly Order No.
Blind nut, 1/8 NPT,
plastic stud W02-358-3000
Blind nut, 1/8 NPT,
brass stud W02-358-3001
Blind nut, 1/8 NPT, brass
stud, stainless steel ring W02-358-3005
Descripition and Specifications Of G3005:
| Maximum Diameter @ 100 PSIG (MM) | 86.36 |
| Maximum Height (MM) | 73.66 |
| Maximum Stroke (MM) | 35.56 |
| Minimum Usable Height (MM) | 38.1 |
| 1 Inch (pounds) | 450 |
| Maximum Stroke (pounds) | 400 |
| Material | 2-Ply Standard Cord |
| Design Height | 63.5 |
| 40 psig (pounds) | 210 |
| 60 psig (pounds) | 330 |
| 80 psig (pounds) | 450 |
| Natural Frequency (@80 psig) (cpm) | 220 |
| 800 CPM % | 91.8 |
| 1500 CPM % | 97.8 |
W02-358-3005, WO23583005, WO2-358-3005
Additional information: WO2-358-3005, 1M1A-0 type air spring, reversible/sleeve type 16-5 type 18 blind nut, 5/8-11X1.00" brass stud with 1/8" NPT port , Stainless steel ring
GUOMAT air spring solemn commitment to the customer:
1, we don't spell at a low price, we only make quality products.
2, the same price on the market of air spring, we must be the best quality.
3, the same quality of air spring on the market, we must be the best price.
4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.
5, GUOMAT air spring not profiteering, only genuine, solid products.
6, all customers for the product quality problems need to be replaced, we have to change.
Packing List of G3005 Air Spring :
| Description | PCS | Net Weight | Package Weight | Gross Weight | Length
(cm) | Width
(cm) | Height
(cm) | Measurememt
(cbm) |
| Air Suspension | 1 | 0.6 kg | 0.4 kg | 1.0 kg | 12 | 9.2 | 9.2 | 0.00102 |
| Shipping Terms | By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express. |
| Payment Terms | T/T, Western Union,Paypal and Others |
Applications:
• Press Manufacturing
• Vibrating Equipment &
Conveyers
• Shaker Screens
• Steel Manufacturing
Equipment
• Automotive Related
(Plate Glass)
• Material Handling Industry
• Lumber Industry
• Aluminum Can Recycling
• Container Manufacturers
• Paper Industry
Note:
We always have goods in stock.
This air spring is generally in stock. The products produced by GUOMAT conform to national standards. The warranty is one year. Any quality problem can be exchanged within one year.
Other kinds we can produce:
| ORDER NUMBER | STYLE NUMBER | SEE PAGE |
| W02-M58-3000 | 1M1A-0 | 34 |
| W02-358-3005 | 1M1A-0 | 34 |
| W02-M58-3002 | 2M1A | 36 |
| W02-M58-3006 | 1M1A-1 | 35 |
| W02-358-4001 | 4001 | 81 |
| W02-M58-5001 | 116-ST | 39 |
| W02-M58-5003 | 16-ST | 39 |
| W02-358-7002 | 7002 | 82 |
| W02-358-7010 | 7010 | 83 |
| W02-358-7012 | 7012 | 84 |
