Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw

Name: Rubber Steel FS20010 Contitech Industrial Air Bags M8 Screw
Brand: Contitech
Price: 1 USD

China Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw wholesale

Brand Name : Contitech

Model Number : FS200-10

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Rubber Steel

Contitech : FS 200-10 1/4

Warranty : 12 Months

Weight : 1.6 kg

Other name : industrial air actuator

Pressure Ability : 0.2-0.8 M Pa

Screw : M8

Air inlet : G1/4

Contact Now

FS200-10 Contitech Air Spring Industrial Air Bags Really original Actuator

Product Description

OEM Original Equipment Manufacturer:FS 200-10 CI

Technical Data

Minimum pressure-0 psi
Restoration force to minimum height-<45LBF / 200N
Whole machine weight-4.4LB
Minimum design height-2.01 inches / 51 mm
Required space-9.65 inches / 245 mm
Maximum stroke-3.9 inches / 99 mm
Top plate diameter 160mm
Diameter of bottom cover 160 mm
Screw center distance 89 mm
The air hole distance between the nuts is 44.5 mm
air hole g1/4
Screw (teeth) teeth 2pcsXM8

FS 200-10 VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	981	1,530	2,040	2,570	3,090	124
Spring rate c [lbf/in]	701	1,000	1,290	1,560	1,870	124
Natural Frequency f0 [Hz]	2.7	2.7	2.6	2.5	2.5	124
Design height H: recommended 4.53 inch, minimum 3.94 inch

FS 200-10 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
H 4.50 in.	939	1440	1920	2430	2950	120
H 4.00 in.	1120	1690	2260	2850	3430	110
H 3.50 in.	1250	1880	2530	3170	3850	96
H 3.00 in.	1370	2050	2760	3460	4170	83
H 2.50 in.	1450	2170	2930	3640	4410	68

FS 200-10 PURCHASE ORDER DATA

Type	Air Inlet	Order No.
Rubber bellows only	–	62828
with crimped plates	1/4 NPT 0 in. excentrical	75229
with crimped plates	–	75248

FS 200-10 SERVICE INSTRUCTIONS

	Thread	max. Torque
	2X3/8-16UNC	20 lbf ft / 2.26N.M
1/4NPT	20 lbf ft / 2.26N.M

FS 200-10 Features:

1,It can be used with height adjustment valve, which can always maintain a constant height to prevent load fluctuations.

2, It can be used together with auxiliary tank and throttle valve to obtain excellent damping effect. And it can reduce the resonance amplitude.

3, This air spring is simple in structure and easy to install and disassemble.

Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw

Product Tags:

FS200-10 Industrial Air Bags

Rubber Steel Industrial Air Bags

FS 200-10 1/4 Industrial Air Spring

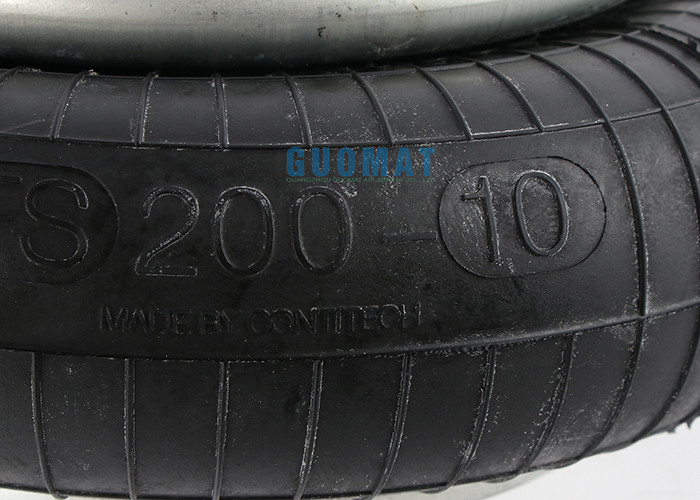

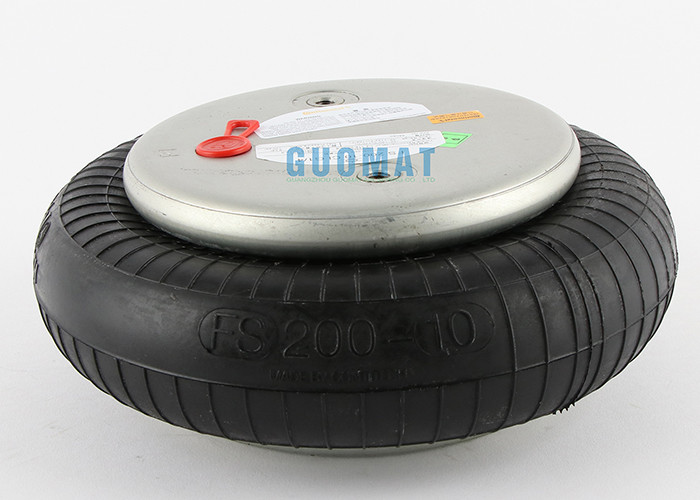

Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw Images
