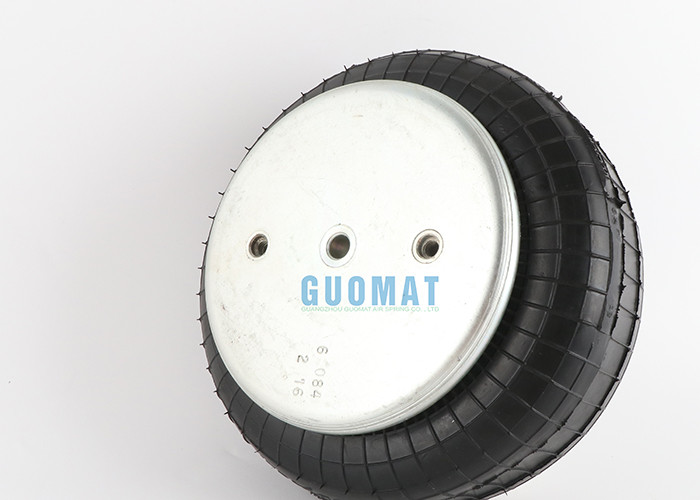

Actuators 1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton
1B9-208 OEM Original Equipment Manufacturer:
Goodyear Part NO.: 1B9-208
Goodyear Part NO.: 1B9 208
Goodyear Part NO.: 1B9208
Goodyear Bellows NO.: 578-91-3-201
Goodyear Bellows NO.: 578 91 3 201
Goodyear Bellows NO.: 578913201
1B9-208 Goodyear Air Spring Parameter Description:
Maximum stroke 2.90 inches
Height range 4-1/2 to 5 inches
Spring type single convolution
Forced at a maximum stroke of 100 psi 2850 pounds
Load range of 3200 to 3900 pounds at 100 psi
Bumper type none
Air port thread type 3/4 UNC
System natural frequency 2.50 Hz
100 psi (11 inches) in diameter
End plate diameter 6.4 inches
Tap pitch 3-1/2 inches
Port thread standard UNC
Air port thread diameter 3/4 in
Raw latex
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 NPT
Center Distance Between Nut and Air inlet: 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm
❹Rubber Bellows
Rubber Bellows Diameter : 222 mm
Compressed Height: 100 mm / 4.1 inches
Maximum Height: 160 mm
Working Stroke : 60 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :No of Girdle Hoop
