W01-358-7925 Firestone Air Spring Style 28 Double Convoluted Only Rubber Bellows Refer to GUOMAT 2H320240
GUOMAT 2H320240 Industrial Double Convoluted Air Spring Specifications
GUOMAT 2H320240 can replace the Part # W013587925,which is the same size as W01-358-7925.
Part # Variations: W01-358-7925, WO13587925, WO1-358-7925
Additional Info: WO1-358-7925, 28C Style AirSpring, Rubber Bellows
| Design Height (mm) | 241 | Maximum Diameter @ 7 Bar (mm) | 442 |
| Load (at Design Height) at: 3 Bar (kN) | 22.2 | Maximum Height (mm) | 84 |
| Load (at Design Height) at: 5 Bar (kN) | 51.6 | Maximum Stroke (mm) | 173 |
| Load (at Design Height) at: 7 Bar (kN) | 54.1 | Minimum Usable Height (mm) | 257 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.7 | Force in kN @ 5 Bar at Stroke of 25 mm | 60.5 |
| % of Isolation at Forced Frequency 7 Hz | 92.8 | Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 50.9 |
| % of Isolation at Forced Frequency 13 Hz | 98.3 | Force in kN @ 5 Bar at Stroke of Maximum Stroke | 34.4 |
| % of Isolation at Forced Frequency 25 Hz | 99.5 | Style Cross-Ref High Strength Style Number | 201 |
| | | Material | 2-Ply Standard Cord
|
GUOMAT 2H320240 Cross Firestone Air Spring
Rubber bellows only
Style 28 Two Ply Bellows
Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-7531;W01 M58 7531;W01M587531
Rolled plate assembly,1/2 blind nuts, 3/4 NPT:SEE NOTE BELOW
Rubber bellows only:W01-358-7925;W01 358 7925;W013587925
Assembly weight.:.8.62 kg.
Force to collapse to minimum height (@ 0 BAR):169N.
W01-358-7191
W01-358-7194
W01-358-7192
W01-358-7271
W01-358-7925
W013587191
W013587194
W013587192
W013587271
W013587925
W01 358 7191
W01 358 7194
W01 358 7192
W01 358 7271
W01 358 7925
Style 201
High Strength Construction
Rubber bellows only:W01-358-0201;W01 3580201;W013580201
Product Tags:
|
|

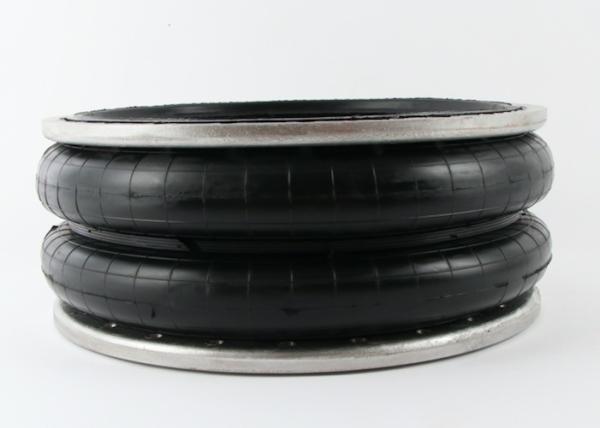

W01-358-7925 Firestone Air Spring Double Convoluted GUOMAT 2H320240 Images
|
