1R9-065 Goodyear Air Spring Rolling Lobe Truck Air Suspension Springs Air balloons
Goodyear Part Number:: 1R9-065
Bellows type: rolling leaf
Ultraman Bellow Part Number:: 1DK10
Firestone bellows Part Number:: Not applicable
Goodyear Bellows Part Number:: 566-18-3-003
Contitech bellows Part Number:: 6 6.5-11
Triangle bellows Part Number:: Not applicable
Base plate/neutron type: steel
Number of top plate holes/studs: 2
Top plate diameter: 7.4
Top plate C to C diameter: 3.38
Base plate hole bolt Qyt: 1
Base plate diameter: 7.5
Diameter of base plate C to C: N/A
Base plate part number: 566-16-7-009
Bottom plate alignment: parallel
Bumper: No
Bracket: Not applicable
Minimum height: 4.3
Maximum height: 11.8
| AUTOMANN | TRIANGLE |
| AB1DK10A-2119 AB1DK10D-8997 | 8525 |
| HENDRICKSON | WATSON & CHALIN AS-0026 |
| B-2394 | CONTI |
| NEWAY | 6 6 5-11 S 027 68108 |
| 905-57-029 905-57-034 | FIRESTONE |
| RIDEWELL | 2119 |
| 1003588997C | 8997 W013582119 W013588997 |
| | GRANNING |
| | 5112 |

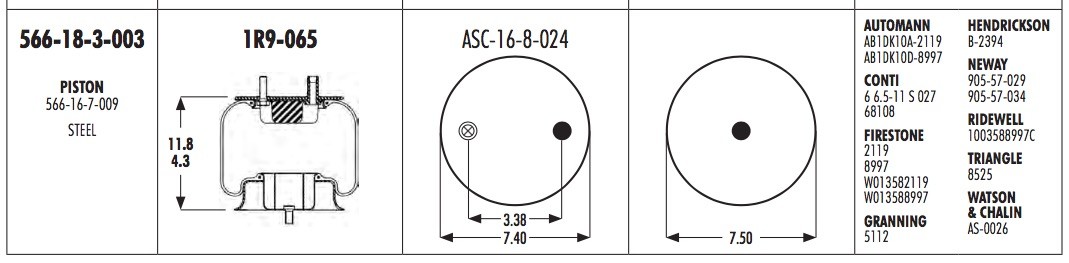

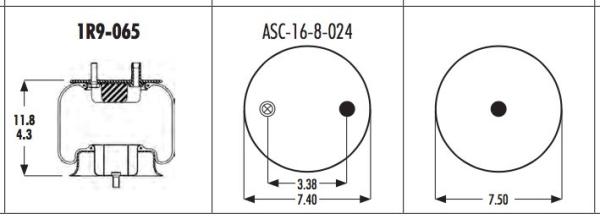

The drawing of Goodyear Air Spring 1R9-065:
| GUOMAT Number | Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) |
| For a Distributing Frequency Of: |
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM |
| 1R10 089 | 1R10-089 | 11 | 900 - 5,200 | 9.5 - 13.5 | 14.1 | 6 | 20.1 | NO | 96 | 99 | 99 | 99 | 1/4 CS |
| 1R11 028 | 1R11-028 | 11.5 | 1,100 - 6,700 | 6.0 - 10.0 | 9.3 | 3.7 | 13 | NO | 95 | 98 | 99 | 99 | 1/4 CS |
| 1R11 039 | 1R11-039 | 11.7 | 1,300 - 7,000 | 8.0 - 12.0 | 11 | 6.1 | 17.1 | YES | 94 | 98 | 99 | 99 | 1/4 CS |
| 1R12 092 | 1R12-092 | 12.7 | 1,350 - 7,600 | 10.5 - 16.5 | 13.4 | 7.7 | 21.1 | YES | 96 | 99 | 99 | 99 | 1/4 CS |
| 1R12 095 | 1R12-095 | 12.7 | 1,350 - 7,300 | 7.0 - 9.0 | 9.1 | 4.4 | 13.5 | YES | 94 | 98 | 99 | 99 | 1/4 CS |
| 1R12 103 | 1R12-103 | 12.7 | 1,300 - 7,300 | 15.0 - 20.0 | 17.5 | 9.5 | 27 | YES | 96 | 99 | 99 | 99 | 1/4 CS |
| 1R12 132 | 1R12-132 | 12.9 | 1,400 - 7,600 | 8.0 - 10.0 | 10.8 | 6.1 | 16.9 | YES | 93 | 98 | 99 | 99 | 1/4 CS |
| 1R12 256 | 1R12-256 | 12.6 | 1,350 - 7,300 | 16.0 - 20.0 | 19.6 | 9.5 | 29.1 | YES | 96 | 99 | 99 | 99 | 1/4 CS |
| 1R12 274 | 1R12-274 | 12.8 | 1,450 - 7,300 | 11.3 - 14.3 | 14.7 | 8.1 | 22.8 | YES | 96 | 99 | 99 | 99 | 1/4 CS |
| 1R14 018 | 1R14-018 | 14.6 | 1,500 - 8,500 | 11.0 - 16.5 | 14.8 | 7.7 | 22.5 | YES | 96 | 99 | 99 | 99 | 1/4 OS |
| 1R14 019 | 1R14-019 | 14.6 | 1,500 - 8,500 | 14.0 - 18.0 | 16.9 | 8.9 | 25.8 | YES | 96 | 99 | 99 | 99 | 1/4 OS |
| 1R14 037 | 1R14-037 | 14.8 | 1,900 - 11,000 | 7.5 - 11.0 | 12.3 | 5.7 | 18 | YES | 92 | 98 | 98 | 99 | 1/4 OS |
| 1R8 005 | 1R8-005 | 8.7 | 560 - 3,100 | 10.5 - 13.0 | 13 | 5.6 | 18.6 | NO | 95 | 98 | 99 | 99 | 1/4 CS |
| 1R8 009 | 1R8-009 | 8.7 | 480 - 2,700 | 10.5 - 13.0 | 11.8 | 6.8 | 18.6 | YES | 96 | 98 | 99 | 99 | 1/4 CS |
| 1R9 003 | 1R9-003 | 9.5 | 560 - 3,700 | 8.0 - 12.0 | 12.3 | 5.6 | 17.9 | NO | 93 | 98 | 99 | 99 | 1/4 CS |
| 1R9 009 | 1R9-009 | 9.5 | 800 - 4,400 | 6.0 - 7.5 | 8.6 | 3.2 | 11.8 | NO | 91 | 97 | 98 | 99 | 1/4 CS |
