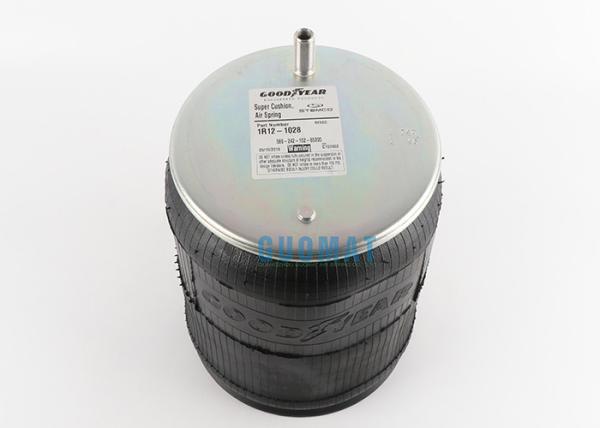

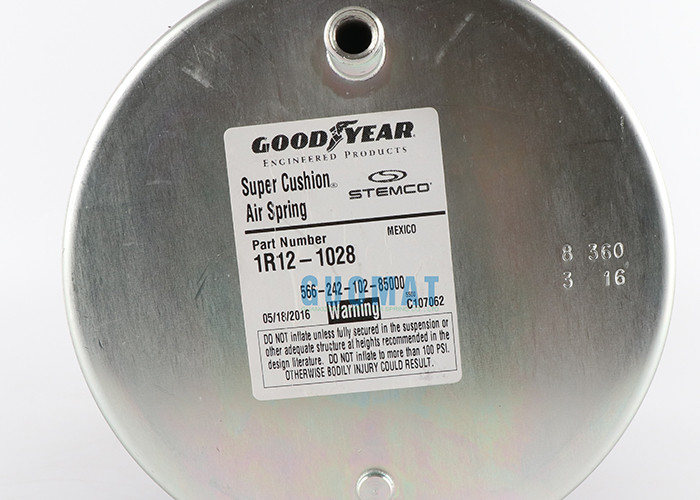

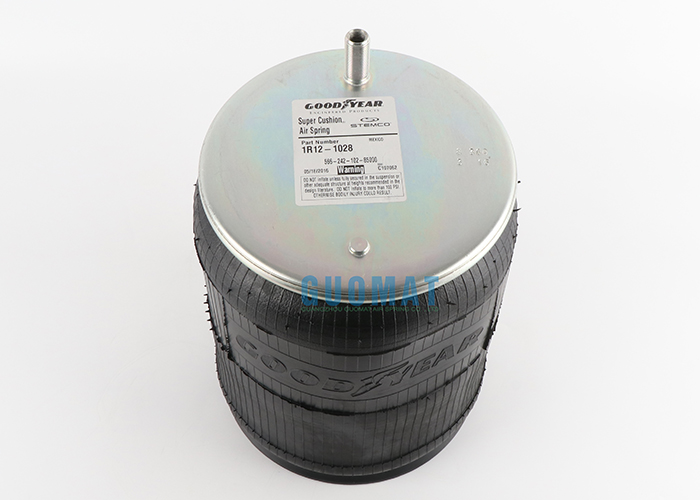

56624210285 Goodyear Rolling Lobe Air Spring Bellow 1R12-1028

Name: 56624210285 Goodyear Rolling Lobe Air Spring Bellow 1R121028
Brand: Goodyear
Price: 59 USD

China 56624210285 Goodyear Rolling Lobe Air Spring Bellow 1R12-1028 wholesale

Brand Name : Goodyear

Model Number : 1R12-1028

Certification : ISO/TS16949

Place of Origin : Guangdong , China

MOQ : 1pc

Price : $59-159/pc

Payment Terms : T/T, Western Union,paypal or others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customer's need

Material : Rubber Bellows ,Steel Piston

Goodyear : 1R12-1028

Other Name : Suspension Air Spring

Cover Plate OD : 228.6 MM

Air inlet / Air Fitting : M22

Goodyear Bellow No. : 566-24-2-10285

Contact Now

1R12-1028 Goodyear Bellow No. 56624210285 Goodyear Rolling Lobe Air Spring

OEM Cross Number:

Goodyear 1R12-1028
Goodyear Flexmember 56624210285

Top Plate Hole/Stud: 2
Bottom Plate Hole/Stud: 4
Top Plate Diameter: 228.6 MM
Bottom Plate Diameter:249 MM
Collapsed Height: 165.1 MM
Piston Type: C

Base plate / neutron type: composite material
Number of top plate holes / studs: 2
Top plate diameter: 228.6 MM
Top plate C to C diameter: 249 MM
Base plate hole bolt Qyt: 4
Base plate diameter: 249 MM
Diameter of base plates C to C: 199.898
Base plate alignment: parallel
Bumper: yes
Bracket: Not applicable
Minimum height: 165.1 MM
Maximum height: 525.78 MM

56624210285 Goodyear Rolling Lobe Air Spring Bellow 1R12-1028

Flexmember	Plate	Piston	Part NO.	Fit for
56624210285000	20549486	N	1R12-1028	1R12-1028
56624210295004	20583718	Y	1R12-1029AN	1R12-1029AN
56624210300000	20054293	Y	1R12-103	1R12-103
1R12-103	20035872	N	1R12-103 Rolling Lobe Air Spring	1R12-103 Rolling Lobe Air Spring
56624210300019	20092750	Y	ENIDINE YI-1R12-103	ENIDINE YI-1R12-103
56624210305004	20583717	Y	1R12-1030AN	1R12-1030AN
56624210315004	20583711	Y	1R12-1031AN	1R12-1031AN
56624210380000	20682766	Y	1R12-1038 Oshkosh 3949144	1R12-1038 Oshkosh 3949144
56624210395000	20590055	Y	1R12-1039 VOL-VO 21627074	1R12-1039 VOL-VO 21627074
56624210395035	20612708	Y	VOL-VO 21627074 1R12-1039	VOL-VO 21627074 1R12-1039
56624210405000	20613773	Y	1R12-1040 Mac-k truck 21627076	1R12-1040 Mac-k truck 21627076
56624210405049	20612709	Y	1R12-1040 Mac-k truck 21627076	1R12-1040 Mac-k truck 21627076
56624210415000	20630333	Y	1R12-1041 Mac-k truck 21669088	1R12-1041 Mac-k truck 21669088
56624210415049	20630841	Y	1R12-1041 Mac-k truck 21669088	1R12-1041 Mac-k truck 21669088
56624210425071	20615249	Y	1R12-1042 MITSUBISHI SERVICE ASSBLY	1R12-1042 MITSUBISHI SERVICE ASSBLY
1R12-1047	20689392	N	1R12-1047 Rolling Lobe Air Spring	1R12-1047 Rolling Lobe Air Spring
1R12-1048	20737250	N	1R12-1048 Rolling Lobe Air Spring	1R12-1048 Rolling Lobe Air Spring
1R12-1049	20672740	N	1R12-1049 Rolling Lobe Air Spring	1R12-1049 Rolling Lobe Air Spring
56624210500000	20682658	Y	1R12-1050 PREVOST 630285	1R12-1050 PREVOST 630285
56624210515000	20689480	Y	VOL-VO 22039026 1R12-1051	VOL-VO 22039026 1R12-1051
56624210515035	20689483	Y	VOL-VO 22039026 1R12-1051	VOL-VO 22039026 1R12-1051
56624210600000	20466778	Y	1R12-106 NOVABUS PROTOTYPE	1R12-106 NOVABUS PROTOTYPE
1R12-1060	20682283	N	1R12-1060 FLT1R12090	1R12-1060 FLT1R12090
1R12-1061	20682286	N	1R12-1061 FLT1R12095	1R12-1061 FLT1R12095
1R12-1065	20713600	N	1R12-1065	1R12-1065
1R12-1065 BULK	20713089	N	1R12-1065 BULK	1R12-1065 BULK
56624210660000	20733971	Y	1R12-1066 PREVST 630286 Tag Blk Pck	1R12-1066 PREVST 630286 Tag Blk Pck
56624210660004	20697200	Y	1R12-1066 Prevost Tag Axle	1R12-1066 Prevost Tag Axle
56624210670000	20744274	Y	1R12-1067	1R12-1067
56624210695083	20682230	Y	1R12-1069 FLT1R12069	1R12-1069 FLT1R12069
1R12-1069	20746469	N	1R12-1069 SPRINGRIDE 1R12-069	1R12-1069 SPRINGRIDE 1R12-069
56624210705083	20682232	Y	1R12-1070 FLT1R12092	1R12-1070 FLT1R12092
1R12-1070	20746480	N	1R12-1070 SPRINGRIDE 1R12-092	1R12-1070 SPRINGRIDE 1R12-092
56624210715083	20768122	Y	1R12-1071 FLT1R12256	1R12-1071 FLT1R12256
1R12-1071	20746481	N	1R12-1071 SPRINGRIDE 1R12-256	1R12-1071 SPRINGRIDE 1R12-256
56624210725083	20682235	Y	1R12-1072 FLT1R12303	1R12-1072 FLT1R12303
1R12-1072	20746482	N	1R12-1072 SPRINGRIDE REPL 1R12-303	1R12-1072 SPRINGRIDE REPL 1R12-303
