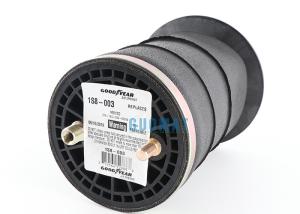

1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002

Name: 1S8003 Goodyear Cab Air Shock Sleeve 579161002
Brand: GUOMAT
Price: 1 USD

China 1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 wholesale

Brand Name : GUOMAT

Model Number : 1S8-003

Certification : ISO/TS16949:2009

Place of Origin : Guangdong , China

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal and Others

Supply Ability : 10000 pcs / week

Delivery Time : 2 - 8 Work Days

Packaging Details : Strong Carton Box or as Customer's Require

Main Material : Steel Rubber

Position : Seat

Weight : 0.7KG

Other Name : Air Spring

Car Make : TRUCK

OEM : 1S8003

Contact Now

1S8-003 Goodyear Cab Air Shock Sleeve Style Air Spring Flexmember 579-16-1-002

Brand	Goodyear
Item Weight	1.5 pounds / 0.7 KG
Package Dimensions	20.2 x 12.3 x 7.3 inches / 51 x 31 x 18.5 cm
Item model number	1S8-003
Exterior	Smooth
Manufacturer Part Number	1S8003

Cross OEM NO.
Goodyear:	1S8-002
Goodyear:	1R8-036
Firestone:

Goodyear #: 1S8-003
Top Plate Hole/Stud Qty: 2
Top Plate Dia: 6.51 inch
Top Plate C to C Diameter: 3.38
Bottom Plate Hole Stud Qyt: 1
Bottom Plate Dia: 8.25 inch
Min Height: 18.5 inch
Max Height: 8.1 inch

1S8-003

Flexmember 579-16-1-002

Piston 579-16-7-103

Product description

Goodyear sleeve air springs will use flexible parts without the need for internally molded beads. The flexible member is attached to the end of the retainer by clamping the material between the end and the external crimp ring, and then adjusting the outer crimp ring to an appropriate diameter. Goodyear sleeve airbag springs have many applications. The most common uses are passenger ride springs and trucks, isolators and springs for truck cab and seat springs, as well as many common industrial applications. 1S4-007 sets of sleeve air spring durability and service life of the length.

Goodyear product features:

Goodyear® Super Cushion® series and Spring Ride® series also have enhanced design, such as: high-strength base, anti-corrosion coating and innovative rubber chemical composition, etc., together giving Goodyear® SuperCushion® and Spring Ride® series air spring vibration isolation Performance and durability, helping its users' fleets reach new levels of operation and profitability. These two series of air springs are made of high-quality rubber materials.

Chemical additives injected into natural rubber provide excellent ozone resistance, effectively reduce flex cracking and extend service life. With a stable bracket, the non-extended design provides a more The safe air spring installation method can prolong the life and reduce vibration and coaxial deviation; and has a solid inner wall, and the high-strength, ultra-tight network cable makes the inner wall and the internal joint part extremely strong.

1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002

GOODYEAR SLEEVE AIR SPRINGS
Part Number	Top Plate Qty	Bottom Piston Qty	Top Plate Dia	Bottom Plate Dia.	Collapsed Height	Piston
1S3-011	1	1	2.2	1.54	3.6	ASB-06-7-014
1S4-008	1	1	2.65	2.12	4	ASC-08-7-005
1S4-030	1	1	2.65	2.12	4	ASC-08-7-093
1S4-035	1	1	2.65	2.12	4	ASC-08-7-163
1S4-042	1	1	2.65	2.12	4	ASC-08-7-219
1S4-044	1	1	2.65	2.12	4	ASC-08-7-194
1S4-056	1	1	2.65	2.12	4	ASC-08-7-194
1S5-005	1	1	2.65	2.12	4	ASC-080-7-005
1S5-006	1	1	2.65	2.12	4	ASC-08-7-005
1S5-038	1	1	2.65	2.12	4	ASC-08-7-194
1S5-055	1	1	2.65	2.12	4	ASC-08-7-194
1S5-060	1	1	2.65	2.12	4	ASC-08-7-219
1S5-072	1	1	2.65	2.12	4	ASC-08-7-219
1S5-070	1	1	2.65	2.12	5.5	ASC-08-7-134
1S5-010	1	1	2.65	2.8	2.25	AS3-08-7-006
1S4-007	1	1	2.65	2.88	2.2	ASC-08-7-139
1S5-045	1	1	2.65	2.88	2.25	ASC-08-7-139
1S4-016	1	1	2.65	3.25	2.2	ASC-08-7-137
1S4-067	1	1	2.65	3.25	2.2	ASC-08-7-137
1S5-133	1	1	2.65	3.25	2.2	ASC-08-7-157
1S5-040	1	1	2.65	3.25	2.25	ASC-08-7-137
1S5-173	1	1	2.65	3.25	2.25	ASC-08-7-137
1S6-025	1	1	3.15	3.89	4.1	ASC-08-7-215
1S6-026	1	1	3.15	3.89	4.1	ASC-08-7-223
1S6-031	1	1	3.15	3.89	4.1	ASC-08-7-215
1S3-013	1	1	3.2	2.4	1.5	ASC-06-7-017
1S6-023	1	1	3.23	3.89	4.1	AS2-08-7-079
1S5-135	2	1	2.65	3.25	2.2	ASC-08-7-157
1S5-024	2	1	3.15	2.12	7	ASC-08-7-034
1S4-074	3	2	2.65	2.12	5.5	ASB-08-7-134
