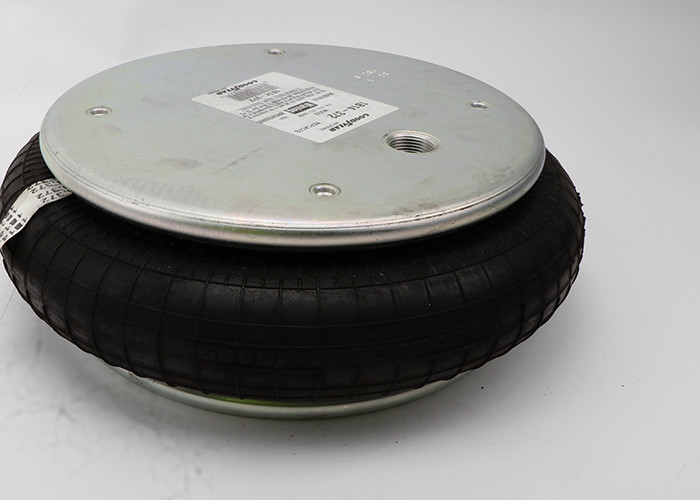

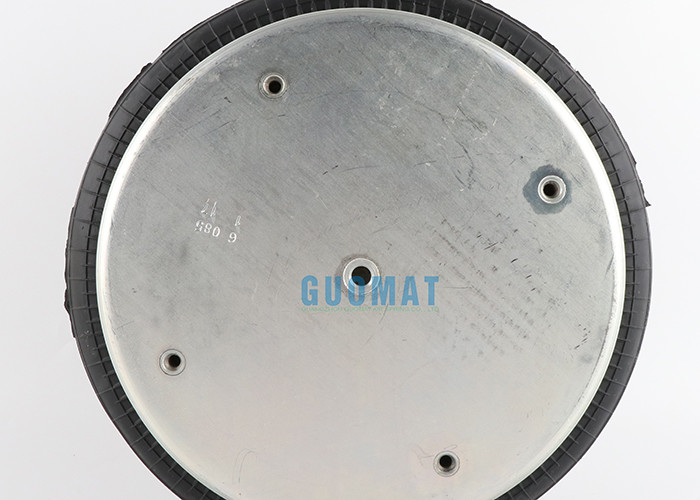

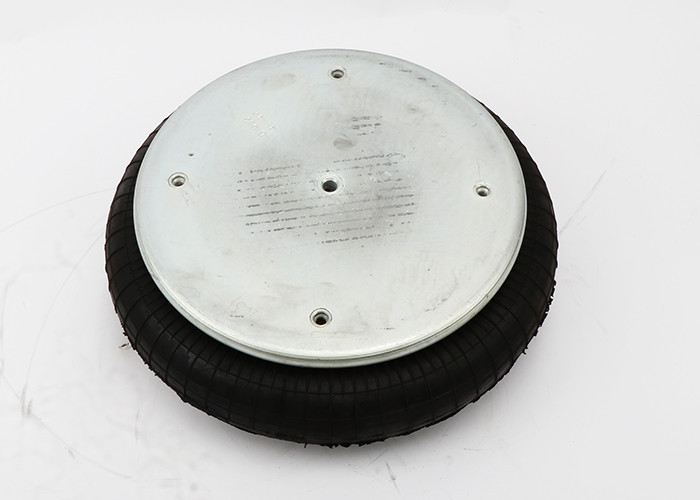

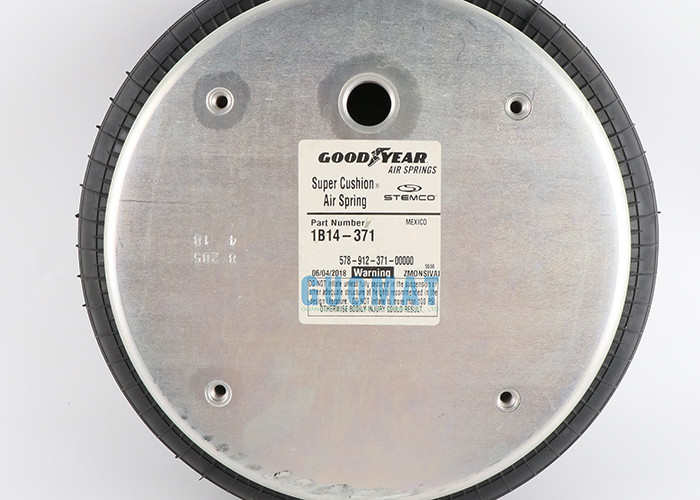

1B14-371 Goodyear Industrial Air Spring With 3/4 NPT Air Inlet M8 Bolts Bellows 578 912 371
1B14-371 Goodyear Specifications and Technical Data
Operating Temperature: 57Cº to -54Cº
Goodyear 1B14-371 ;1B14 371; 1B14371
Goodyear Bellows 578 912 371;578912371;578-91-2-371
Goodyear Bellows 578-91-3-352
UPPER BEAD PL ATE
ASA-92-8-285
LOWER BEAD PL ATE
ASA-92-6-085
FLEXIBLE MEVBER
ASD-91-3-352
Cross NO.:FS 530-14;FS53014;FS530-14
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :4pcsX M8
Screw Center Distance of Top Cover Plate :158.8 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX M8
Screw Center Distance of Bottom Cover Plate : 158.8 mm
Distance Gas Hole Between Nut 79.4 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 N P.T.F.
❸ Cover Plate
Top Cover Plate Diameter (Width): 289mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter 380 mm
Rubber Bellows Max Diameter : 406 mm
Rubber Bellows Natural Height : 120 mm
The Working Stroke : MAX 160 mm to MIN 81 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop
| Vibration isolation - dynamic characteristic value
Design height H: 5.91 inches recommended, minimum 4.72 inches |
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.3] |
| Force (Load) [lbf] | 3840 | 5800 | 7820 | 9830 | 11800 | 685 |
| Spring rate [lbf/in.] | 1980 | 2590 | 3280 | 4060 | 4630 |
| Natural frequency [Hz] | 2.2 | 2.1 | 2.1 | 2.0 | 2.0 |
| Pneumatic Applications - Static Characteristics Force F [lbf] |
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.3] |
| Height H [in.] | 6.5 | 3340 | 5060 | 6840 | 8660 | 10500 | 740 |
| 6.0 | 3760 | 5690 | 7650 | 9660 | 11600 | 690 |
| 5.5 | 4140 | 6250 | 8380 | 10600 | 12700 | 650 |
| 5.0 | 4450 | 6680 | 8960 | 11300 | 13500 | 610 |
| 4.5 | 4720 | 7070 | 9460 | 11900 | 14300 | 560 |
| 4.0 | 4940 | 7380 | 9870 | 12400 | 14900 | 510 |
| 3.5 | 5120 | 7610 | 10200 | 12800 | 15300 | 450 |
| 3.0 | 5260 | 7810 | 10500 | 13100 | 15700 | 380 |
| 2.5 | 5350 | 7970 | 10700 | 13400 | 16000 | 300 |
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator |
| All Measurements Are In Mm |
| Goodyear NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| | | | | |
| 1B14-371 | FS 530-14 | 51 | 420 | 134 |
| | | | | |
Description OF Goodyear 1B14-371 :
The traditional method of fluidized bed damping mainly rubber pad, requiring a higher steel spring. However, both of these shock absorption methods fail to meet the needs of the end user. However, the introduction of "air spring isolation system" from abroad has enabled isolation rather than shock absorption. With its unique energy conversion Way, the vibration of the mechanical energy into internal energy, making 95 percent of the vibration are isolated, to achieve the true isolation effect.
Different types of fluidized bed, according to the overall weight of the fluidized bed to choose the appropriate bearing capacity of the air spring, and fluidized bed according to the length and width and height of the design of a specific installation, and air spring convenient installation, but also makes isolation System installation is much easier than installing a steel spring.
Airbag isolation, there are two control methods. One is a group (usually 4 or 6) airbag single one-way valve packing, like a car tire.
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
1B14-371 FS 530-14.PDF
