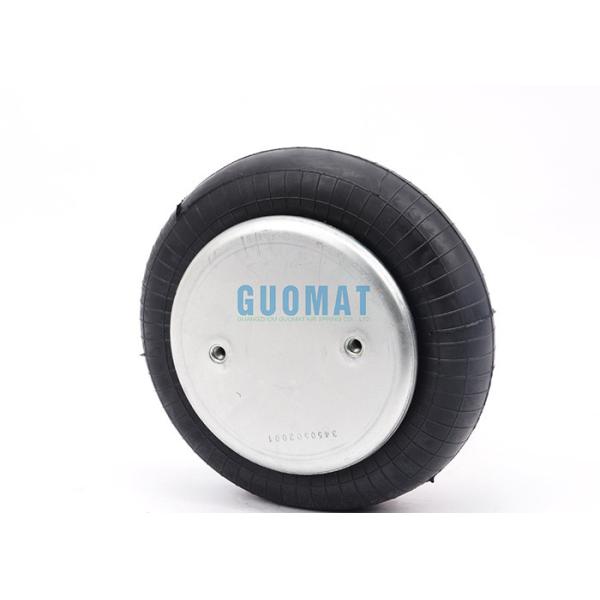

Firestone Industrial Air Bags W01-M58-6182 Rubber Bellows Style 124 For High pressure Equipment
Product Description
Technical Data
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8
Screw Center Distance of Top Cover Plate : 44.45 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8
Screw Center Distance of Bottom Cover Plate : 44.45 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4NPTF
Screw Center Distance Between Gas Hole and Nut : 22.25 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 257 mm
Rubber Bellows Natural Diameter : 220 mm
The Working Stroke : MIN 50 mm to MAX 140 mm
Maximum Height : 140 mm
Minimum Height :50mm
Stroke Height : 90mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
- Min. pressure – 0 psi
- Return force to min. height – <45LBF/200N
- Overall Weight – 4.4LB
- Min. Design Height – 2.01inch / 51MM
- Inst.Space Required – 9.65inch / 245 MM
- Max. Stroke – 3.9inch / 99MM
OEM Original Equipment Manufacturer:
GUOMAT NO.1B6182
FIRESTONE NO.:W01-M58-6182;W01M586182;W01 M58 6182
PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] |
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] |
| H 4.50 in. | 939 | 1440 | 1920 | 2430 | 2950 | 120 |
| H 4.00 in. | 1120 | 1690 | 2260 | 2850 | 3430 | 110 |
| H 3.50 in. | 1250 | 1880 | 2530 | 3170 | 3850 | 96 |
| H 3.00 in. | 1370 | 2050 | 2760 | 3460 | 4170 | 83 |
| H 2.50 in. | 1450 | 2170 | 2930 | 3640 | 4410 | 68 |
Other kinds of air springs Models we can produce:
Style 115 Two Ply Bellows
Blind nuts, 1/4 BSP:W01-M58-6375;W01 M58 6375;W01M586375
Blind nuts, 1/4 BSP,rubber bumper:W0 -M58-6376,W01 M58 6376,W01M586376
Blind nuts, 3/4 BSP:W01-M58-6374;W01 M58 6374;W01M586374
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-6977;W01 M58 6977;W01M586977
Rubber bellows only:W01-358-0118;W01 358 0118;W013580118
Force to collapse to minimum height (@ 0 BAR):36 N.
Style:124 High Strength Con-struction
Blind nuts, 1/4 BSP:W01-M58-6181;W01M586181;W01 M58 6181
Blind nuts, 3/4 BSP:W01-M58-6182;W01M586182;W01 M58 6182
