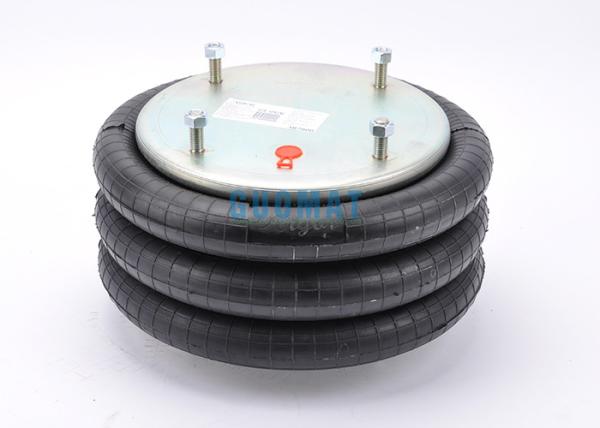

FT 530-35 457 Contitech Air Lift Bags Firestone W01-358-7847 Hendrickson Auxiliary S-8874
| Cross Manufacturer |
Cross OEM |
| Firestone : |
W01-358-7847/ W01 358 7847/W013587847 |
| Firestone Bellows Number: |
333 |
| Contitech : |
FT 530-35 457/ FT 530 35 457 |
| Goodyear |
3B14-367 |
| Goodyear Number: |
3B14367 |
| Goodyear Bellows Number: |
578933350/578-93-3-350 |
| |
|
Compressed Height: 6.40 inches
Top Plate Number:3193
Top Plate Width:11.31 inches
Piston Number:3149
Piston Width:11.31 inches
Firestone Bellows Number:333
Goodyear Part Number:3B14-367
Goodyear Bellows Number:578-93-3-350
Triangle Part Number:4457
Triangle Bellows Number:6335
Hendrickson Auxiliary Number:S-8874
Air Spring Supplier: ContiTech
Competitor / Supplier Number: FT53035457
Air Spring Supplier: Goodyear
Reference: 578933350
Competitor / Supplier Number: 3B14367
Air Spring Supplier: Triangle
Reference number: 6335
Competitor / Supplier Number: 4457
Air Spring Supplier: Dayton Parts
Competitor / Supplier Number: 3547847
Suspension Supplier: Hendrickson
FSIP OEM: W014557847
Suspension Supplier: Hendrickson Auxillary
Hanging number: RT14DX
Suspension Supplier: Hendrickson Auxillary
Hanging number: RW14CX
Suspension Supplier: Hendrickson Auxillary
Hanging number: RW14BX
Suspension Supplier: Hendrickson Trailer
Competitor / Supplier Number: S8874
Suspension supplier: Liland
Competitor / Supplier Number: SC2136
Firestone trim: w013587847
❶Bolts
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/4-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 141 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 197 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 287 mm
Bottom Cover Plate Diameter (Width): 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 404mm
Compressed Height: 114 mm
Maximum Height: 511 mm
Working Stroke : 117mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :2 Pieces of Girdle Hoop
