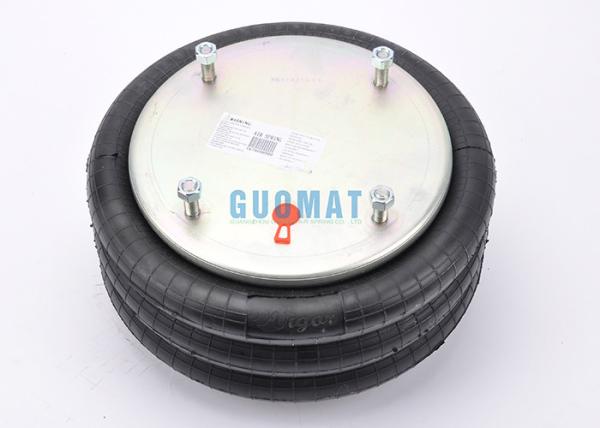

Goodyear Air Spring 3B14-451 Truck Air Spring Shocks For Hendrickson Trailer S7853
| Cross Manufacturer |
Cross OEM |
| Firestone : |
W01-358-7846/ W01 358 7846/W013587846 |
| Firestone Bellows Number: |
333 |
| Contitech : |
FT 530-35 456/ FT 530 35 456 |
| Goodyear |
3B14-451 |
| Goodyear Number: |
3B14451 |
| Goodyear Bellows Number: |
578933350/578-93-3-350 |
| |
|
Air Spring Supplier: ContiTech
Competitor / Supplier Number: FT53035456
Air Spring Supplier: Goodyear
Reference: 578933351
Competitor / Supplier Number: 3B14365
Air Spring Supplier: Goodyear
Reference: 556338335
Competitor / Supplier Number: 3B14451
Air Spring Supplier: Goodyear
Reference: 578933350
Air Spring Supplier: Triangle
Reference number: 6335
Competitor / Supplier Number: 4456
Air Spring Supplier: Dayton Parts
Competitor / Supplier Number: 3547846
Suspension Supplier: Hendrickson
FSIP OEM: W014557846
Suspension Supplier: Hendrickson Auxillary
Hanging number: ST031
Suspension Supplier: Hendrickson Trailer
Competitor / Supplier Number: S7853
Suspension Supplier: Ridewell
Competitor / Supplier Number: 1003587846C
Firestone trim: w013587846
❶Bolts
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/4-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 197 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 287 mm
Bottom Cover Plate Diameter (Width): 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 404mm
Compressed Height: 114 mm
Maximum Height: 511 mm
Working Stroke : 117mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :2 Pieces of Girdle Hoop
