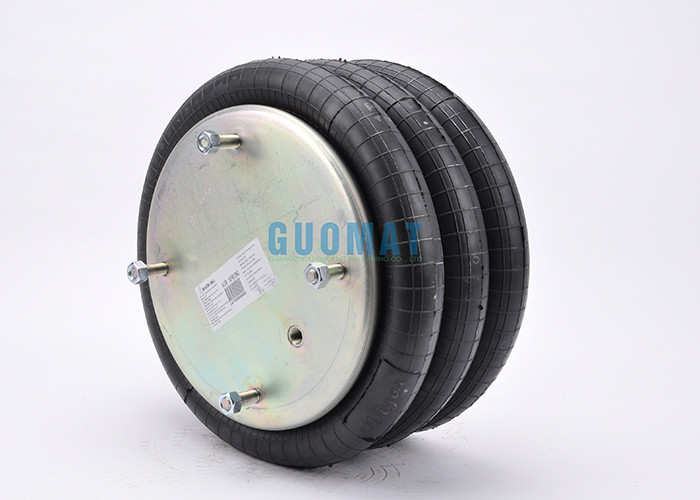

Firestone Air Spring W013587839 Triple Convoluted Air Bag For Euclid/Meritor: E-FS7814
| Cross Manufacturer | Cross OEM |
| Firestone : | W01-358-7839/ W01 358 7839/W013587839 |
| Firestone Bellows Number: | 333C |
| Contitech : | FT 530-35 437 / FT 530 35 437 |
| Goodyear | 3B14-444 |
| Goodyear Number: | 3B14-459 |
| Goodyear Bellows Number: | 578933350 |
| | |
Granning: 1014
Granning: 1476
Triangle Spring: 4325
Triangle Spring: 4437
Firestone: 7814
Firestone: 7816
Firestone: 7818
Firestone: 7839
Firestone: 7852
Conti Tech: 64503
Conti Tech: 64577
E-Z Ride: 8030180
Neway: 57007818
Neway: 57007839
Ridewell: 1003587818C
Ridewell: 1003587839C
Batco: 10-97818
Batco: 10-97839
Goodyear Airspg: 3B14-444
Navistar/IHC: 554803C1
UCF/Impex: AB-3B14-359
T.W. Distribution: AB7814
T.W. Distribution: AB7816
T.W. Distribution: AB7818
T.W. Distribution: AB7839
Watson & Chalin: AS0025
Watson & Chalin: AS0033
Dallas Spring: AS7818
Midland/Haldex: CS314359
Euclid/Meritor: E-FS7814
Euclid/Meritor: E-FS7816
Euclid/Meritor: E-FS7818
Euclid/Meritor: E-FS7839
Euclid/Meritor: E-FS7852
Euclid/Meritor: FS7816
Euclid/Meritor: FS7818
Euclid/Meritor: FS7839
Euclid/Meritor: FS7852
ContiTech: FT530-32325
ContiTech: FT530-35437
Ridewell: S2685C
Leland: SC2032
| Blind nuts, 1/4 NPT | WO1-358-7845 /W01-358-7845 |
| Blind nuts, 1/4 NPT, bumper | WO1-358-7838 / W01-358-7838 |
| Blind nuts, 3/4 NPT | WO1-358-7842 / W01-358-7842 |
| Blind nuts, 3/4 NPT, bumper | WO1-358-7849 / W01-358-7849 |
| Countersunk steel bead ring 13/4 bolts, nuts, washers | WO1-358-7830 /W01-358-7830 |
| Rubber bellows only | WO1-358-7019 / W01-358-7019 |

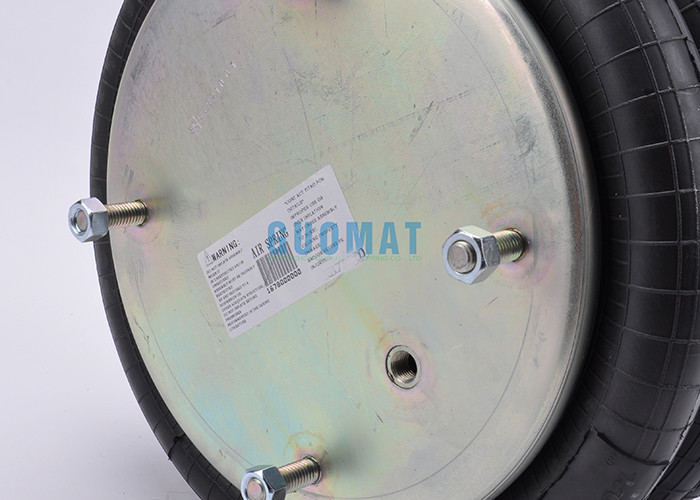

❶Bolts
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 404mm
Compressed Height: 114 mm
Maximum Height: 511 mm
Working Stroke : 117mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :2 Pieces of Girdle Hoop
Product Tags:
|
|

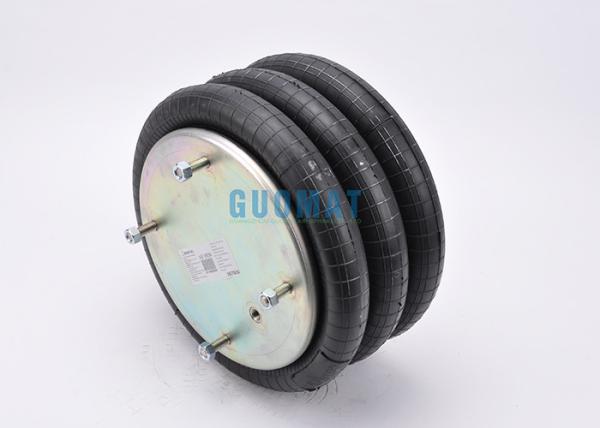

W013587839 Industrial Air Spring Triple Convoluted Air Bag For Euclid / Meritor E-FS7814 Images
|
