W01-358-8032 Firestone Air Spring Actuator 3B12-319 For Suspensions Inc. Number 202394
3B8032 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 140 mm
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm

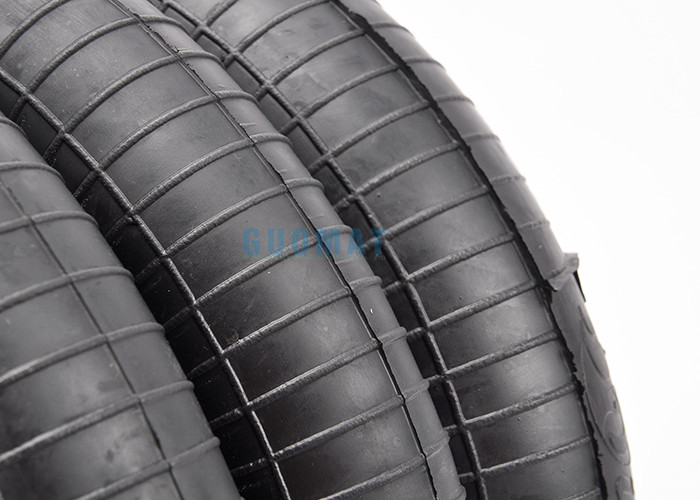

❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
❺ Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
| AIRKRAFT 116008 | | |
| FIRESTONE FLEX 38R/38D | CONTITECH FT 330-29 413 | CONTITECH FT 330-29 413 |
| FIRESTONE 095.0047 | FIRESTONE W01-358-8032 | FIRESTONE W01-358-8032 |
| GOODYEAR FLEX 556 3 3 8334 | W01-358-8025 | GOODYEAR 3B12-315 |
| 578 93 3 100 | W01-358-8028 | |
| | GOODYEAR 3B12-315 | |
Compressed height: 4.55 inches
Number of top plates: 3210
Top plate width: 9.00 inches
Piston number: 3183
Piston width: 9.00 inches
Firestone Corrugated Tube Number: 38
Triangle part number: 4413
Triangle bellows number: 6334
Hendrickson Auxiliary Number: S-12405
Watson&Chalin#:AS-0048
The usal kinds of Triple Convoluted Air Springs
| Triple Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 3B33029 | FT 330-29 | 110 | 345 | 320 |
| 3B43032 | FT 430-32 | 115 | 355 | 315 |
| 3B53032 | FT 530-32 | 110 | 410 | 325 |
| 3B53035 | FT 530-35 | 115 | 430 | 395 |
| 3B96034 | FT 960-34 | 120 | 510 | 335 |
| 3B133035 | FT 1330-35 | 120 | 570 | 350 |
Use in many applications including:
- Directional-change actuators in roller conveying systems
- Actuators for flask lifts on foundry shake-outs
- Mountain bike
- Actuators on bottle and carton filling machines
- Bin-tilting actuators (for ease of access)
- Paper machine equipment air spring air spring,
- Actuators on transfer tables
- Vibrating screen cover clamping device
- Actuators in sand blast rooms
- Actuators in glass grinding rooms
- Industrial laundry equipment actuators
- Crawling pipeline machine
- Vibrating screen
- Energy storage device actuators
- Can forming actuators (beverage and fuel industries)
- Car/truck front end alignment rack actuat
Air spring production process:
1. Rubber mixing: exercise and rubber processing
2. The production of rubber bellows: bellows is made of inner is a layer of rubber, the middle is two layers of cord fabric and the outside is a layer of rubber. Through the fixed mold them together.
3. Other forming accessories: plastic parts, iron base, aluminum base, iron plate, and other hardware accessories, these parts have been made in different moulds.
4. The bellows and other accessories are gotten together by machine and make out air spring.
5. Air tightness detection: each production of good air spring fills the air, and then put into the water to test whether the bubbling gas leakage.
6. Quality: blasting test, fatigue test, the air spring blasting pressure GUOMAT factory is up to 30 atmospheric pressure, fatigue to reach 3 million times, meet the international standards.
7. Packing: the qualified products for packaging, are usually carton packaging, need some special strong wooden case packing, others are labeling packaging according to customer's requirements.
