W01-358-8014 Firestone Air Spring Triple Convoluted Air Bag For Ridewell 1003588014C
3B8014 Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1" N P.T.F. / 1" NPTF

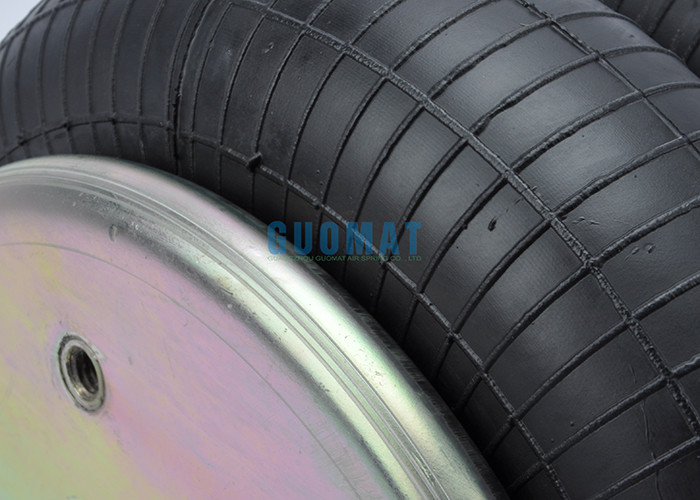

❸ Cover Plate
Top Cover Plate Diameter: 229mm
Bottom Cover Plate Diameter: 229 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
3B8014 Cross others OEM
Airspring Supplier: Triangle
Reference: 6334
Suspension Supplier: Ridewell
Competitor/Supplier Number: 1003588014C
Firestone Trimmed: w013588014
| BELLOW Numbers | COMPLETE NO. | COMPLETE Numbers |
| AIRKRAFT 116008 | AIRKRAFT 115033 | AIRKRAFT 115027 |
| FIRESTONE FLEX 38R/38D | CONTITECH FT 330-29 773 | CONTITECH FT 330-29 430 |
| FIRESTONE 095.0047 | FIRESTONE W01-358-8014 | FT 330-29 498 |
| GOODYEAR FLEX 556 3 3 8334 | GOODYEAR 3B12-305 | FT 330-29 503 |
| 578 93 3 100 | AIRKRAFT 115035 | FT 330-29 702 |
| | CONTITECH FT 330-29 432 | FIRESTONE W01 358 8006 |
| | FIRESTONE W01-358-8010 | W01 358 8030 |
| | GOODYEAR 3B12-301 | GOODYEAR 3B12-304 |
