Industrial Rubber Air Spring W01-358-3403 Shock For American Carrier 8003-009

Name: Industrial Rubber Air Spring W013583403 Shock For American Carrier 8003009
Brand: GUOMAT
Price: 1 USD

China Industrial Rubber Air Spring W01-358-3403 Shock For American Carrier 8003-009 wholesale

Brand Name : GUOMAT

Model Number : 2B3403

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel cover plate , rubber bellows

Firestone : W013583403

Goodyear : 2B7-540

American Carrier : 8003-009

Assembly Weight : 4.6 lbs

Maximum Diameter : 203mm

Pressure Ability : 0.2-0.8 M Pa

Design Height : 75-230mm

Contact Now

Firestone Rubber Air Spring W01-358-3403 Shock For American Carrier 8003-009

GUOMAT 2B3403 Data

❶Nut/ Blind Nut

Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 70 mm
Bottom cover screw (nut) teeth: 2 X 3 / 8-16UNC
Bottom cover screw center distance: 70 mm

❷ air hole / air inlet / air connector
Air vent / air inlet: 3 / 4 NPTF
Screw center distance between air vent and nut: 35 mm

❸ cover
Top cover diameter (width): 132 mm / 5.31 inches
Bottom cover diameter (width): 132 mm 5.31 inches

❹Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 75 mm to MAX 230 mm
Maximum height: 230 mm
Minimum height (compression height): 75 mm / 2.75 inches
Stroke height: 155 mm

❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop

GUOMAT 2B3400 Specifications

Firestone Top Plate Number: 3450

Firestone Piston Number: 3436

Firestone Bellows Number: 224

Goodyear Part Number: 2B7-540

Goodyear Part Number:2B7 540

Goodyear Part Number:2B7540

American Carrier Number: 8003-009

Firestone Part Number: W01-358-3403

Firestone Part Number:W01 358 3403

Firestone Part Number:W013583403

Firestone Order Number: W01-358-3403

Bellows #: 224

Assembly Weight: 4.6 lbs

Design Height: 6-7 inches

Loading Capacity at 20 psig: 342 lbsf

Loading Capacity at 60 psig: 1,026 lbsf

Loading Capacity at 90 psig: 1,539 lbsf

Maximum Diameter: 8 inches

Operating Temperature: 56Cº to -53Cº

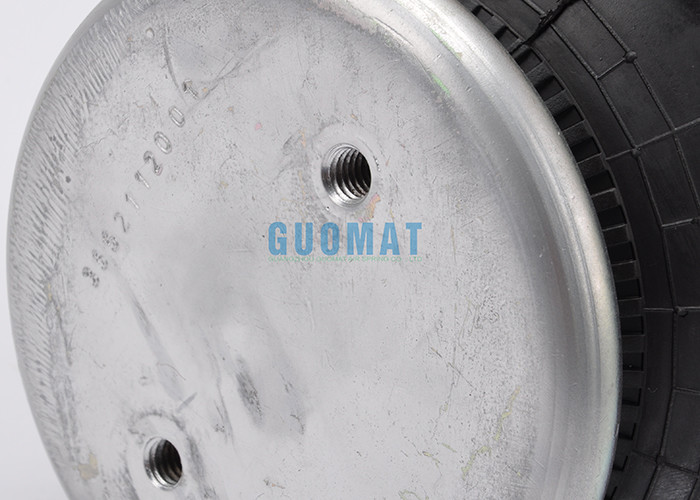

GUOMAT 2B3403 Photos:

Industrial Rubber Air Spring W01-358-3403 Shock For American Carrier 8003-009
