1/4NPTF Gas Hole Industrial Air Spring M10 Screw GUOMAT NO. 3B6617 Rubber Bellow No.3B300

Name: 14NPTF Gas Hole Industrial Air Spring M10 Screw GUOMAT NO 3B6617 Rubber Bellow No3B300
Brand: GUOMAT
Price: 1 USD

China 1/4NPTF Gas Hole Industrial Air Spring M10 Screw GUOMAT NO. 3B6617 Rubber Bellow No.3B300 wholesale

Brand Name : GUOMAT

Model Number : 3B6617

Certification : ISO/TS16949:2009

Place of Origin : Guangdong,China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel cover plate , rubber bellows

Firestone : W01-358-8010

Gas Hole : 1/4NPTF

Two Pillars Stick Nuts : M10-

Screw Center Distance : 157.5 mm

Cover Plate Diameter : 231mm

Pressure Ability : 0.2-0.8 M Pa

Natural Height : 297 mm

Contact Now

GUOMAT NO. 3B6617 Bellow No.3B300 Industrial Air Spring M10 Screw

3B6617 Technical Parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2pcsXM10-1.5

Screw Center Distance of Top Cover Plate : 157.5mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM10-1.5

Screw Center Distance of Bottom Cover Plate : 157.5mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

❸ Cover Plate

Top Cover Plate Diameter: 231 mm

Bottom Cover Plate Diameter: 231 mm

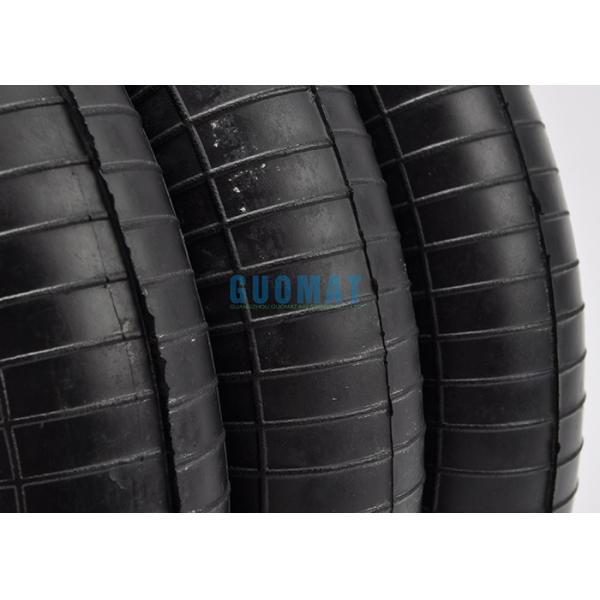

❹Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

CONTITECH FT 330-29 Cross others OEM

BELLOW Numbers	COMPLETE NO.	COMPLETE Numbers
AIRKRAFT 116008	AIRKRAFT 115033	AIRKRAFT 115027
FIRESTONE FLEX 38R/38D	CONTITECH FT 330-29 773	CONTITECH FT 330-29 430
FIRESTONE 095.0047	FIRESTONE W01-358-8013	FT 330-29 498
GOODYEAR FLEX 556 3 3 8334	GOODYEAR 3B12-305	FT 330-29 503
578 93 3 100	AIRKRAFT 115035	FT 330-29 702
	CONTITECH FT 330-29 432	FIRESTONE W01 358 8006
	FIRESTONE W01-358-8010	W01 358 8030
	GOODYEAR 3B12-301	GOODYEAR 3B12-304

1/4NPTF Gas Hole Industrial Air Spring M10 Screw GUOMAT NO. 3B6617 Rubber Bellow No.3B300
