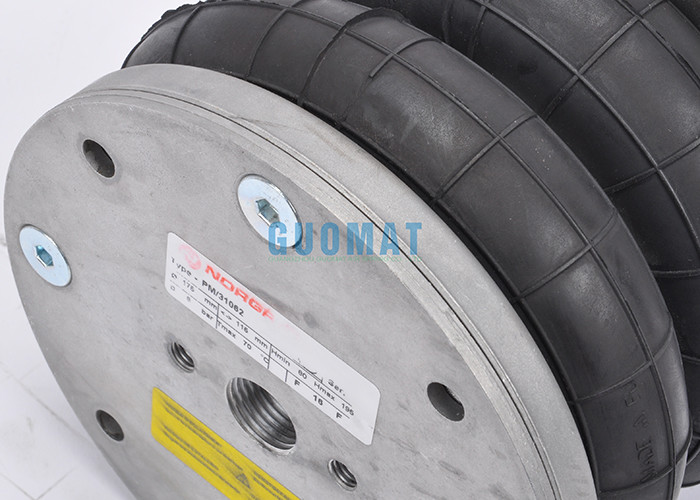

Firestone W01-R58-4070 (6 x 2 Aluminum ) Norgren PM31062 Air Spring Actuator Industrial Air Bags
Specifications and Detail Technical Parameters
❶Nut/ Blind Nut
Top cover screw (nut) teeth: 4 X M8
Bottom cover screw (nut) teeth: 4 X M8
❷ air hole / air inlet / air connector
Air vent / air inlet: G1 / 2

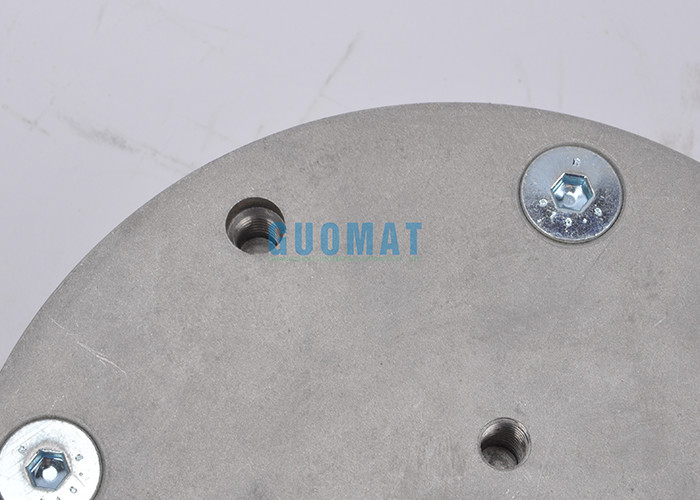

❸ cover
Top cover diameter (width): 153.5 mm
Bottom cover diameter (width): 153.5 mm
Material top and bottom plate: aluminum

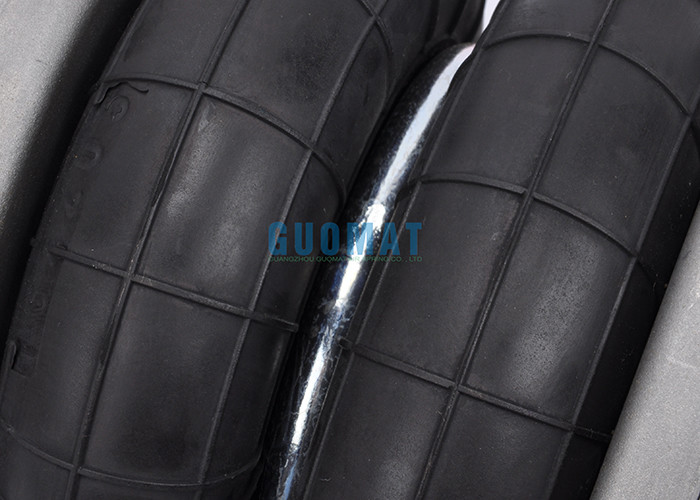

❹Rubber bellows
Maximum diameter 7 bar: 175MM
Rubber bellows stroke: 80mm-195m
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Girdle Hoop: a belt hoop
Maximum load is 80 mm height and 8 bar: 1415 daN
Other kinds of model air bellows:
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4078 - (6 x1 Alu )
W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)
Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1
