2B2600 Air Bag Suspension For Pickup Truck Modification Replace Spring

Name: 2B2600 Air Bag Suspension For Pickup Truck Modification Replace Spring
Brand: GUOMAT
Price: 1 USD

China 2B2600 Air Bag Suspension For Pickup Truck Modification Replace Spring wholesale

Brand Name : GUOMAT

Model Number : 2B2600

Certification : ISO/TS16949:2009

Place of Origin : Guangdong,China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel cover plate , rubber bellows

Gas Hole : 1/2 NPTF

Screw Tooth : 3/8-16UNC

Screw Center Distance : 70 mm

Cover Plate Diameter : 140 mm

Pressure Ability : 0.2-0.8 M Pa

stroke : 120~255 mm

Net Weight : 2.6 kg

Package Size : 24*24*24 CM

Contact Now

2B2600 Truck Air Bag Suspension For Pickup Truck Modification Replace Spring

GUOMAT 2B2600 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 70 mm

Bottom Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : in the center

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2-14NPTF

Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter: 140 mm

Bottom Cover Plate Diameter: 140 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : 135 mm

Maximum Height : 255mm

Minimum Height :120mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Weight:2.54 kg

Loading cap. at 3.0bar :3.85kN

Loading cap. At 7.0bar:9.52kN

2B2600 Air Bag Suspension For Pickup Truck Modification Replace Spring

Product Tags:

air helper springs

air suspension parts

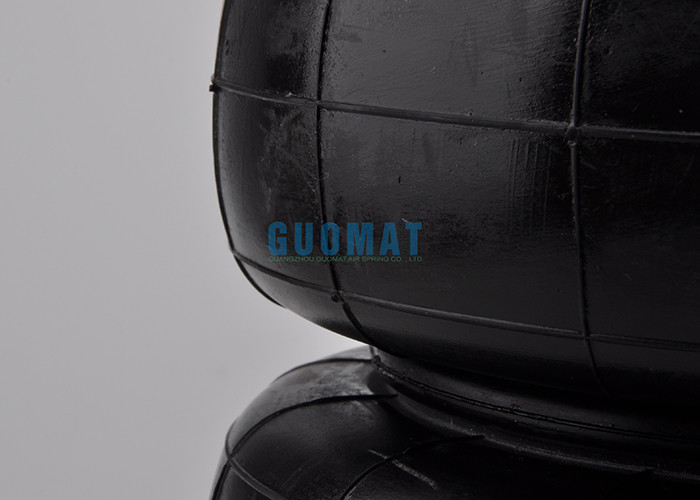

2B2600 Air Bag Suspension For Pickup Truck Modification Replace Spring Images
