Steel Cover Plate Industrial Air Spring 2B5813 Air Ride Suspension Parts

Name: Steel Cover Plate Industrial Air Spring 2B5813 Air Ride Suspension Parts
Brand: GUOMAT
Price: 1 USD

China Steel Cover Plate Industrial Air Spring 2B5813 Air Ride Suspension Parts wholesale

Brand Name : GUOMAT

Model Number : 2B5813

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel cover plate , rubber bellows

GUOMAT : 2B5813

Air lift : 5813

Air inlet : PT1/4

Screw : 3/8-16UNC

Cover Plate DIA : 105.5 mm

Contact Now

Air Lift 2B5813 Air Ride Suspension Parts AIr Spring Replace The Steel Spring

Product parameters:

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 69.5 mm

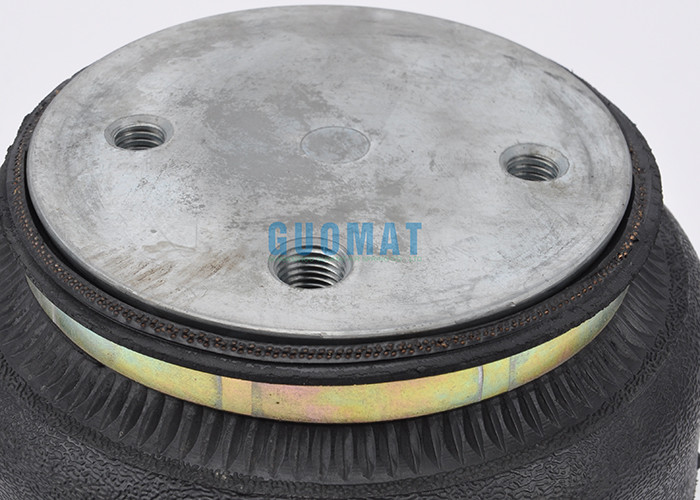

Bottom Cover Plate Screw (Nut) Tooth :3 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 69.5 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : PT1/4

Center Distance Between air inlet and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter (Width): 105.5 mm

Bottom Cover Plate Diameter (Width): 105.5 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 141 mm

Rubber Bellows MAX Diameter : 161 mm

Design Height: 188 MM

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Product Description:

This is the GUOMAT air spring from AIR SPRING. The bellows air spring has one, two or three windings in the flexible member. Such double-turn airbags are commonly used in lift springs or axles for trucks and trailers, as pneumatic springs, and as actuators or insulators in industrial and commercial applications. The specifications of the 2B5813 will vary, but the double-curved GUOMAT bag has a crimp design and a sleeve bellows. They will provide similar features and functions, but the sleeve type permanently connects the end retainers by clamping the flexible member between the end retainer and the outer crimp ring.

glasses

Steel Cover Plate Industrial Air Spring 2B5813 Air Ride Suspension Parts

Product Tags:

convoluted air spring

air helper springs

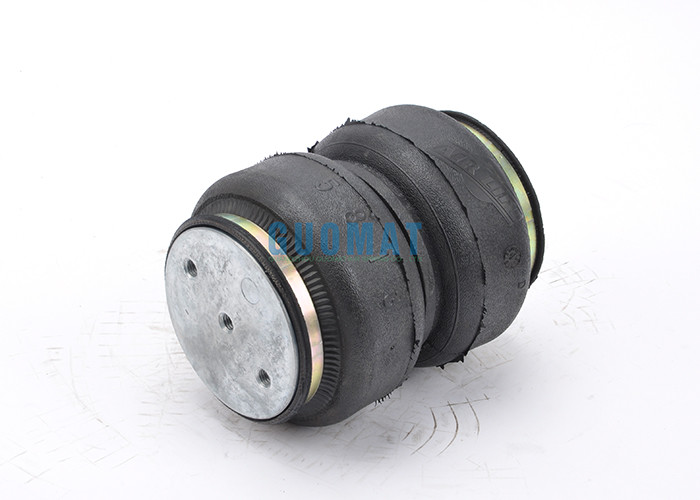

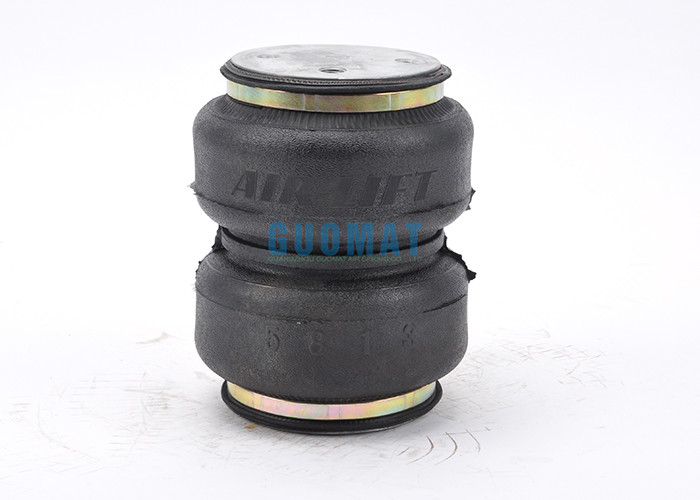

Steel Cover Plate Industrial Air Spring 2B5813 Air Ride Suspension Parts Images
