2B12-346 2B12-440 GoodYear Double Convoluted Air Bag For Histeer 10315

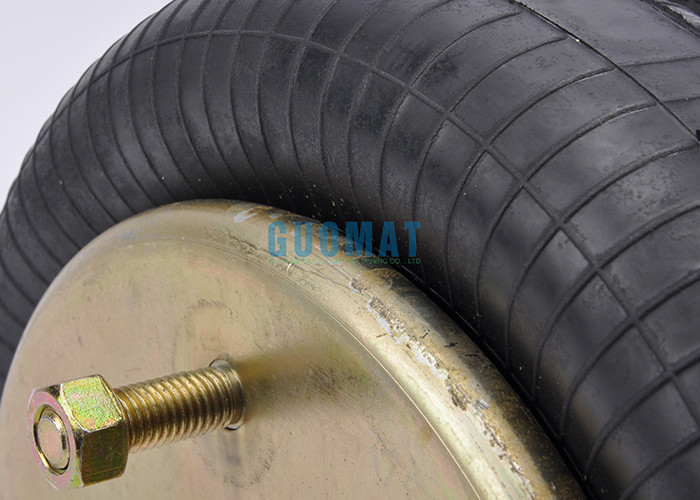

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X M12
Top Cover Plate Combination Nut : M20,M12
Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10
Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches

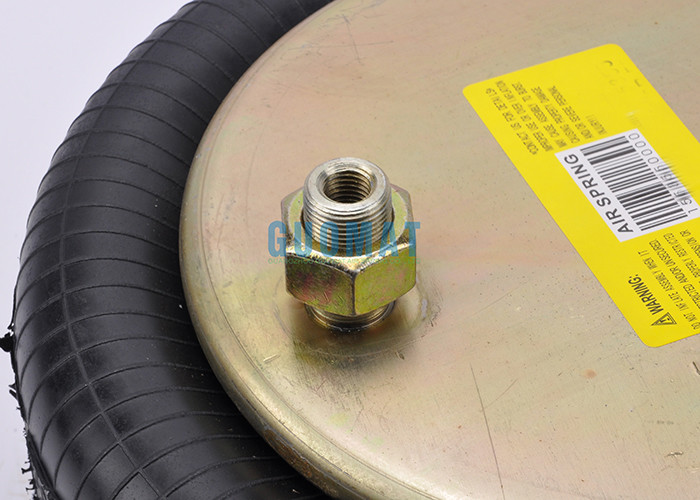

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : M12 , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

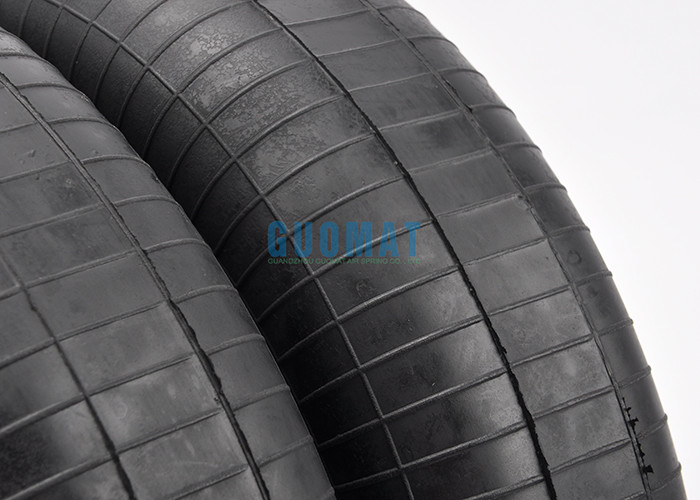

❹Rubber Bellows
Rubber Bellows MAX Diameter : 343 mm / 9.7 inches
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 363mm / 14.3 inches
Working Stroke : 259 mm / 10.2 inches
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
| Manufacturer | OEM REFERENCE |
| GUOMAT NO. CONTITECH | 2B12346 FD 331-26 480/FD 331-26 541 / FD 331-26 541 |
| Firestone Bellows Number | 228-1.5 |
| Firestone part Number | W01 358 7550 / W01 358 7555 / W01-358-7550 / W01-358 -555 |
| GOODYEAR | 2B12-440 / 2B12-346 / 2B12 440 / 2B12 346 |
| GOODYEAR-FLEXMEMBER | 578-92-3-315 / 578923315 / 578 92 3 315 |
| Triangle | 6375/4480 |
| HISTEER | 10315 |
| WATSON & CHALIN | AS-0087 |
| Histeer | 10315 |
| HS INDUSTRIES/LINK # | 10315 |
| Top Plate Number | 3271 |
| Piston Number | 3183 |
Assembly Weight: 13.4 lbs
Design Height: 9-11 inches
Minimum Jounce Height: 3.55 inches
Loading Capacity at 20 psig: 1,240 lbsf
Loading Capacity at 60 psig: 3,720 lbsf
Loading Capacity at 90 psig: 5,580 lbsf
Maximum Diameter: 13.5 inches
Operating Temperature: 57Cº to -54Cº
Air Spring 7550 AS-0087 4541 10325
Goodyear #: 2B12-346
Bellow Type: Double
Automann Bellow #: SP2B22RB
Firestone Bellow #: 228C-1.5 was 228-1.5
Goodyear Bellow #: 578-92-3-315
Contitech Bellow #: FD 331-26
Triangle Bellow #: N/A
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty: 2
Top Plate Dia: 9 ,
Top Plate C to C Diameter: 6.2
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 9
Bottom Plate C to C Diameter: 6.2
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: Yes
Bracket:
Min Height: 3.8
Max Height: 14.4
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
