2B2200 Air Suspension Air Bags / Air inlet 1 / 4NPT Double Convoluted Air Bag

2B2200 Air Suspension Air Bags Double Convoluted Air Bag Replace The Coil Spring​

Operating Temperature: 57Cº to -54Cº

❶Nut/ Blind Nut
Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 44.5 mm
Bottom cover screw (nut) teeth: 1 X 3 / 8-16UNC
Bottom cover screw center distance: middle

❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 4 NPT
Center distance between air inlet and nut: 22 mm

❸ cover
Top cover diameter (width): 97 mm
Bottom cover diameter (width): 97 mm

❹Rubber bellows
Rubber bellows natural diameter: 100 mm
Rubber bellows MAX diameter: 120 mm
Design height: 124mm
Bellows no.:2200

❺ bumper block / buffer block
No Bumper Block

Twisted waist/waist ring
Belt loop: two belt loops

• Air spring volume saves space compared to other springs
• Roller protects air springs from wear and increases load capacity
• No drilling required - Most kits use existing holes in the vehicle frame for bolt mounting
• Easy to install, ordinary car repairers can operate
• All kits are compatible with most 5-wheel and gooseneck hooks

The GUOMAT 2B2200 is suitable for smaller cars and SUVs and can tow a small load of only 1000 pounds. This 2B2200 air spring product helps your vehicle squat when pulling heavy loads. This kit helps to drive comfortably with a lighter load while driving. Design and installation is simple and straightforward.

convoluted air spring

air helper springs

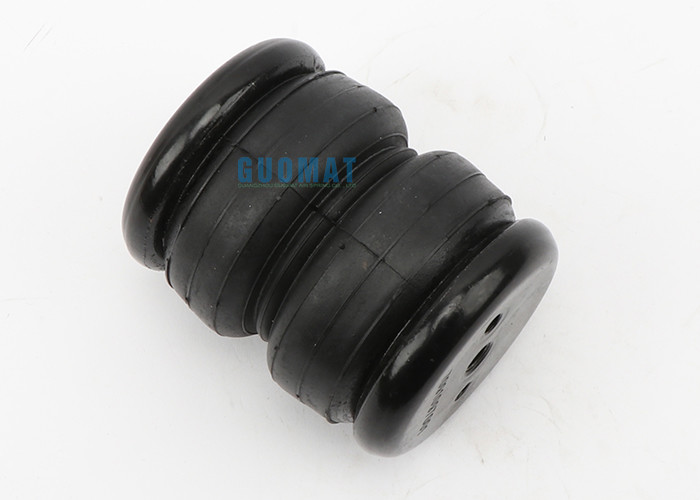

2B2200 Air Suspension Air Bags / Air inlet 1 / 4NPT Double Convoluted Air Bag Images
