Rubber Bellows Industrial Air Spring Dual Convoluted 64284 For Histeer 10315 FD 331-26 480

Name: Rubber Bellows Industrial Air Spring Dual Convoluted 64284 For Histeer 10315 FD 33126 480
Brand: GUOMAT
Price: 1 USD

China Rubber Bellows Industrial Air Spring Dual Convoluted 64284 For Histeer 10315 FD 331-26 480 wholesale

Brand Name : GUOMAT

Model Number : 2B7555

Certification : ISO/TS16949:2009

Place of Origin : Guangdong,China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel cover plate , rubber bellows

Contitech : FD 331-26 480, FD331-26480, FD33126480

GoodYear Bellows# : 578923315 / 578-92-3-315

Gas Hole / Air inlet : 1/4-18NPT , Combination Stud/Air Inlet Stud

Cover Plate Diameter (Width) : 224.5 mm / 9.00 inches

Compressed Height : 104 mm / 4.1 inches

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

GoodYear : 2B12346, 2B12-440

Firestone : W01-358-7555, W013587555

Contact Now

FD 331-26 480 Double Convoluted Air Bag 64284 For Histeer 10315

❶Nut/ Blind Nut
Top cover screw (nut) teeth: 1 X 1 / 2-13UNC

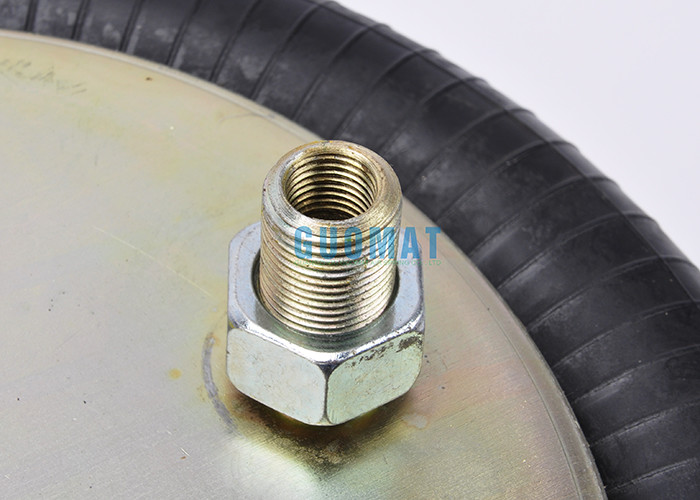

Top cover combination nut: 3 / 4-16UNF
Top cover screw center distance: 157 mm / 6.2 inches
Bottom cover screw (nut) teeth: 2 X 2X1 / 2-13UNC
Screw center distance of bottom cover: 157 mm / 6.2 inches

❷ air hole / air inlet / air connector
Stomatal / air inlet: 1 / 4-18NPT, combined stud / intake stud

❸ cover
Top cover diameter (width): 224.5 mm / 9.00 inches
Bottom cover diameter (width): 224.5 mm / 9.00 inches

❹Rubber bellows
Rubber bellows MAX diameter: 343 mm / 9.7 inches
Compressed height: 104 mm / 4.1 inches
Maximum height: 363 mm / 14.3 inches
Working stroke: 259 mm / 10.2 inches

❺ bumper block / buffer block
Bumper seat
Twisted waist/waist ring
Girdle Hoop: a belt hoop

Compressed Height: 3.60 inches
Top Plate Number:3271
Top Plate Width:9.00 inches
Piston Width:9.00 inches
Firestone Part Number:W01-358-7555
Firestone Bellows Number:228-1.5
Goodyear Part Number:2B12-440, ASA-92-2-005
Goodyear Bellows Number:578-92-3-315
ContiTech Number:64284, FD 331-26 480
Reyco Number:20018-01
Triangle Part Number:6375, 4480

Cross OEM References	OEM References
Firestone : W01-358-7555 / W01 358 7555 / W013587555	Firestone: 7450
Firestone Bellows Number: 228C-1.5	Firestone: 7555
Contitech : FD 331-26 480	Conti Tech: 64284
Goodyear : 2B12-440 / 2B12440	Batco: 10-97450
Goodyear: 578923315 / 578-92-3-315	Batco: 10-97555
Reyco : 20018-01 (86AR)/ 18813-01	Reyco: 18813-01
Holland/Binkley: XB-SPN-053-37	Reyco: 20018-01
Binkley XB-SPN-053-37	UCF/Impex: AB-2B12-440
Brake&Wheel : M3531	Dallas Spring: AS7555
Twthill : 1881301/2001801	Sirco: AS-7555
Triangle Part Number:4480	Midland/Haldex: CS212440
Triangle Bellows Number:6375	Euclid/Meritor Aftermarket: E-FS7555
Euclid/Meritor Aftermarket: FS7555	Conti Tech: FD331-26480
Leland: SC2676

Rubber Bellows Industrial Air Spring Dual Convoluted 64284 For Histeer 10315 FD 331-26 480

GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!

They almost do not need to maintain.
Increase the service life of tires and brake pads.
Let you pull anything; Eliminate expensive admission cost.
Greatly reduce the breakage of the other vehicle components and maintenance.
Back to you in the scrappage, truck and trailer with air suspension is more valuable.
Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
