2B9-218 Goodyear Lift Springs Or Axles For Trucks And Trailers Flexmember 578923206 Airbag
Description of 2B9-218:
This is a bellows style GUOMAT air spring. The bellows air spring has one, two or three windings in the flexible member. Such double-turn airbags are commonly used in lift springs or axles for trucks and trailers, as pneumatic springs, and as actuators or insulators in industrial and commercial applications. The specifications for 2B9-218 will vary, but the double-curved GUOMAT bag has a crimp design and a sleeve bellows. They will provide similar features and functions, but the sleeve type permanently connects the end retainers by clamping the flexible member between the end retainer and the outer crimp ring.
Specifications of 2B9-218:
Roof hole / stud: 1
Floor hole / stud: 2
Roof diameter: 6.4
Base plate diameter: 6.4
Collapsed height: 3.5
Firestone Bellows Number:20-2
ContiTech : FD20025453 / FD200-25453 FD200-25 453
Firestone Part Number:W01-358-6927 / w013586927 / w01 358 6927
Flexmember: 578-92-3-202 / :578923202 / :578 92 3 202
Goodyear Trimmed: 2B9-218 / 2B9218 / 2B9 218
Frequency divider
Triangle Spring: 4453
Firestone: 6927
Conti Tech: 64553
Reyco: 12906-01
Reyco: 12906-02
Navistar / IHC: 1685176C1
UCF / Impex: AB-2B9-218
Taurus: AS218-6927
Dallas Spring: AS6927
Midland / Haldex: CS209218
Euclid / Meritor Aftermarket: E-FS6927
Conti Tech: FD200-25453
Euclid / Meritor aftermarket: FS6927
BWP: M-3556
Leland: SC2072
GUOMAT 2B6927 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX 3/4-16UNF
Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is In The Middle Of The Top Cover Plate
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

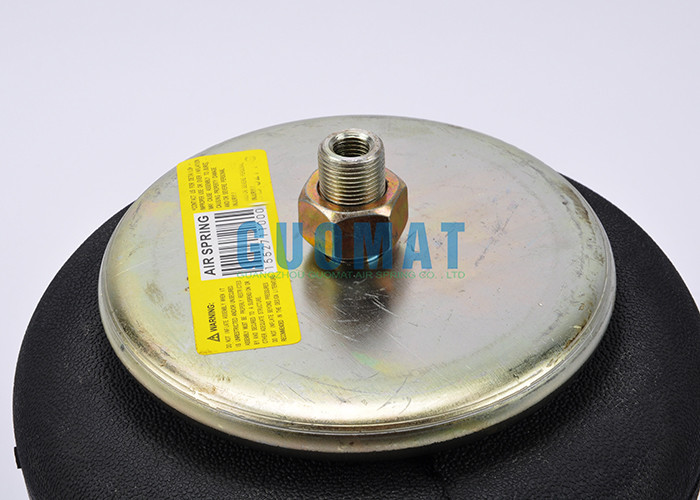

❸ Cover Plate
Top Cover Plate Diameter: 160 mm / 6.31 inches
Bottom Cover Plate Diameter: 160 mm / 6.31 inches

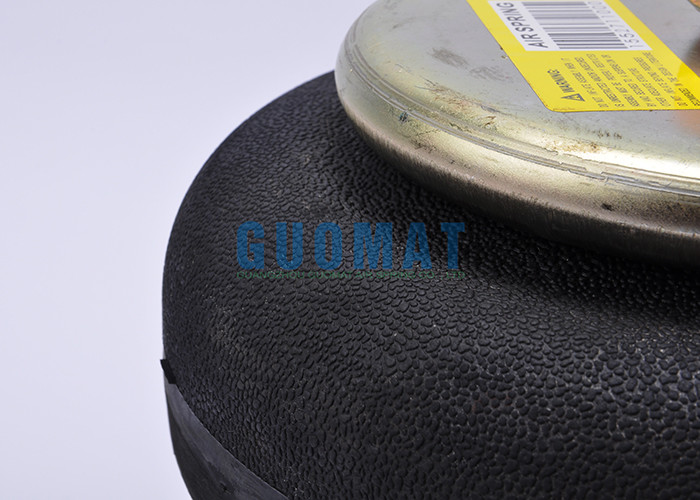

❹Rubber Bellows
Rubber Bellows MAX Diameter: 262 mm
Rubber Bellows Natural Diameter :225 mm / 8.88 inches
The Working Stroke : MAX 325mm to MIN 81 mm
Maximum Height : 325 mm
Minimum Height :81 mm / 3.12 inches
Stroke Height : 224 mm
❺ Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
Design height H: recommended 10 inch, minimum 9.06 inch |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
Pneumatic application - static characteristic values Force F [kN]
