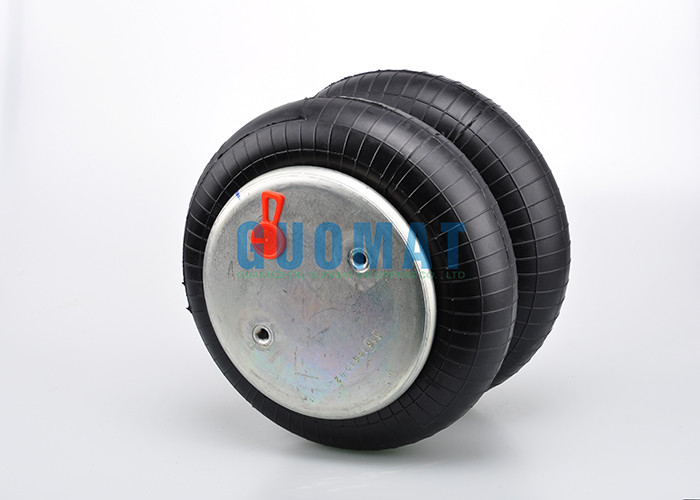

FD 200-19 499 64515 ContiTech Firestone No. W01-358-6856 OE Manufacturer Granning 4848
GUOMAT 2B6856 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
With Bumper Block

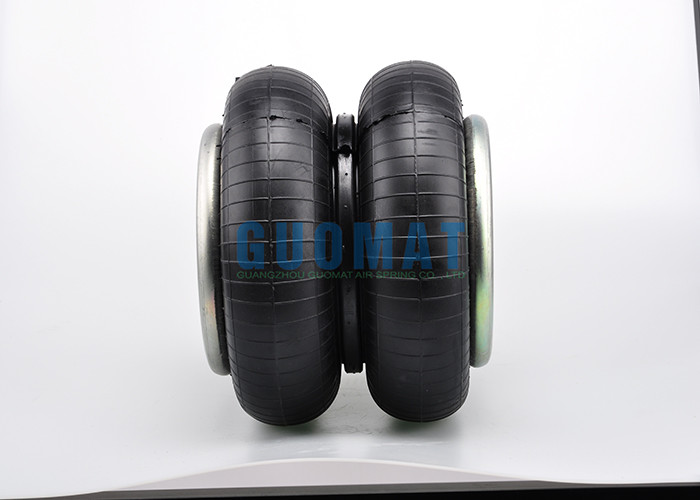

❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B6856 Cross others OEM
GUOMAT NO.2B6856
FD 200-19 499 ／ FD200-19 499 ／ FD20019 499
| |
Firestone No. W01-358-6935 ／ W01 358 6935 ／ W013586935 |
Firestone No. W01-358-6856 ／ W013586856 ／ W01 358 6856 |
| |
Goodyear 2B9-201 ／ 2B9201 ／ 2B9 201 |
Goodyear Flex No. 578923202 |
| |
| |
| TRP AS69350 |
OE Manufacturer/Reference No.
Manufacturer Original-part no. Model |
| |
| |
| |
Navistar/Fleetrite 554784C1 |
| |
| |
| |
| |
| |
| |
Navistar/Fleetrite 2B9-491 |
Freightliner 16-14318-000 |
| |
| |
Air spring supplier brand name: ContiTech
Reference: 161298
Competitor/supplier ID: FD20019499
Air spring supplier brand name: Goodyear
Competitor/supplier number: 2B9201
Air spring supplier brand name: Triangle
Reference: 6325
Competitor/supplier ID: 4310
Air spring supplier brand name: Triangle
Competitor/supplier number: 4499
Suspended supplier: Arvin Meritor
Competitor/supplier ID: 201548
Suspension supplier name: Hendrickson
FSIP OEM: W014556881
Suspension supplier name: Hendrickson
Suspension Number: HLM1＆2 LIFT
FSIP OEM: W014556935
Suspension supplier name: Hendrickson Aid
Competitor/supplier ID: 3318
Suspension supplier name: Hendrickson Trailer
Competitor/supplier number: S14318
Firestone Trim: w013586935
Other kinds of FD 200-19 that GUOMAT have:
| | | | | | | | | | |
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] |
| 80 psi | 100 psi | Min | MAX |
| FD 200 19 310 | FD 200-19 310 | 161292 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 315 | FD 200-19 315 | 161293 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 320 | FD 200-19 320 | 161008 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 362 | FD 200-19 362 | 161294 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 448 | FD 200-19 448 | 161295 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 450 | FD 200-19 450 | 161296 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 452 | FD 200-19 452 | 161297 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 499 | FD 200-19 499 | 161298 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 504 | FD 200-19 504 | 161299 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 505 | FD 200-19 505 | 161300 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 506 | FD 200-19 506 | 161301 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 510 | FD 200-19 510 | 161302 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 524 | FD 200-19 524 | 161385 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 539 | FD 200-19 539 | 161303 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 600 | FD 200-19 600 | 161017 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
