W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138
Description:
GUOMAT 2B6900 This rubber air spring is produced and assembled by natural rubber and steel. Produced by the GUOMAT factory, quality assurance, strict quality inspection, and praised by many customers.
It can replace Firestone part number: W01-358-6900. The size of GUOMAT 2B6900 is the same as Firestone part number:W01-358-6900.
Specifications and Technical Data of W01-358-6900
Firestone part number: W01-358-6900 / W013586900 / W01 358 6900
Compressed height: 3.12
Number of top plates: 3079
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm
Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm
Air vent / air inlet: 3/4 NPTF
Firestone Corrugated Tube Number: 20
Goodyear part number: 2B9-200 / 2B9200 / 2B9 200
Goodyear Bellows Number: 578-92-3-202 / 578923202/578 92 3 202
Number of grids: 1371
Hendrickson Trailer No.: S-8768
Hendrickson Truck Number: 45843-3
Ridewell number: 1003586910C
Triangle part number: 4320
Triangle bellows number: 6325
Watson&Chalin#:AS-0001
Description Assembly Order No.
Blind nuts, 1/4 NPT W01-358-6910
Blind nuts, 1/4 NPT, bumper W01-358-6911
Blind nuts, 3/4 NPT W01-358-6900
Blind nuts, 3/4 NPT, bumper W01-358-6901
Countersunk steel bead rings,
13/4 bolts, nuts, washers W01-358-6923
Rubber bellows only W01-358-0138
OEM Original Equipment Manufacturer:
| BELLOW Numbers | COMPLETE Numbers |
| | |
| CONTITECH FD 20019 S / 895 N | Firestone : W01-358-6900 |
| FIRESTONE FLEX 20 | Contitech : FD 200-19 320 |
| FIRESTONE W01-358-0138 | Goodyear : 2B9-200/202/216 |
| 095-0009 | Hendrickson : S8768/458433 |
| GOODYEAR 2B 9-200 | : 578423202 |
| 578923202 | Triangle: 6325/4320 |
| PHOENIX 2B 12R | Dayton : 3546910 |
| PIRELLI T20 86600 | Leland : Sc2011 |
| AIRKRAFT 114001 | Navistar : 554783C1 |
| | Dina : A812719/AZ812719 |
| | SAF Holland : 57006910 |
| | Trailers De : 133128 |
| | Brake & Wheel : M3501 |
| | Ridewell : 1003586910C |
| | Tuthill : 1371 |
| | Watson&Chalin : AS-0001/AS-0156G |
The composition of convoluted air springs
Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
Waist ring: Stable part skins to prevent deformation
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
Flexible bellows: The main part, can lock the air and flexible activities up and down
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
Technical Data of W01-358-6900:
| size | 250 mm | Working medium | Compressed air as per ISO 8573-1:2010 [-:-:4] |
| Installation required Ø | 265 mm | Information about operation and test media | Operation with oil lubrication not possible |
| Stroke | 185 mm | Corrosion resistance grade (CRC) | 2-Moderate corrosion stress |
| Highest height, advanced | 275 mm | Ambient temperature | -40 °C ... 70 °C |
| Maximum tilt angle | 25 deg | Reset force | 200 N |
| Highest offset | 20 mm | product weight | 3000 g |
| Minimum installation height | 75 mm | Type of installation | With internal thread |
| Type code | 2B | Pneumatic connection | G3/4 |
| Operation mode | Single-acting | Material Description | RoHS-compliant Free of copper and PTFE |
| symbol | 991205 | Bellows material | NR/BR |
| Operating pressure | 0 bar ;1 bar;2 bar;3 bar;4 bar;5 bar;6 bar;7 bar;8 bar | Building materials | Galvanized Steel |

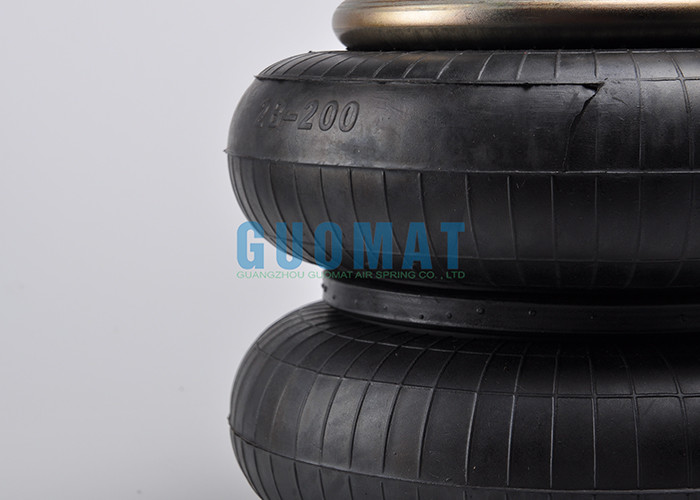

Detail photos 1 of W01-358-6900:
