W01-M58-6374 Firestone Industrial Rubber Air Spring For Commercial Vibrating Screen

Name: W01M586374 Firestone Industrial Rubber Air Spring For Commercial Vibrating Screen
Brand: GUOMAT
Price: 1 USD

China W01-M58-6374 Firestone Industrial Rubber Air Spring For Commercial Vibrating Screen wholesale

Brand Name : GUOMAT

Model Number : 1B6374

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel And Rubber

Firestone : W01M586374

Warranty : 12 Months

Weight : 2.3 kg

Other Name : Air Bags For Pneumatics

Pressure Ability : 0.2-0.8 M Pa

Air inlet : G 3/4

Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Dunlop(FR) : 9’’1/4x1 S09101

Contact Now

W01-M58-6374 Firestone Industrial Rubber Air Spring For Commercial Vibrating Screen

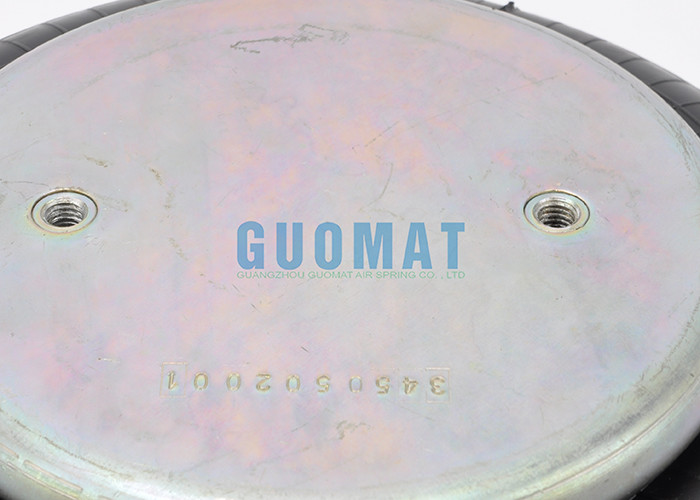

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G3/4

❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm

❹Rubber Bellows
Rubber Bellows Natural Diameter : 220 mm
Rubber Bellows Natural Height : 110 mm

❺ Bumper block / Buffer block
Without Bumper Block

❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop

OEM Original Equipment Manufacturer:

BELLOW NO.	COMPLETE NO.
AIRKRAFT 112005	AIRKRAFT 111004
CONTITECH FS 200-10 60319	CONTITECH FS 200-10
FIRESTONE FLEX 115	2681 045000
FIRESTONE W01-358-0118	FIRESTONE W01 M58 6374
Goodyear Part # 1B9-215	DUNLOP (FR) 9"1/4x1 S09101
	BOSCH 822419004
	FESTO EB-250-85
	NORGREN PM/31091 (91/4x1)
	WEFORMA WBE 400-E1

REASONS FOR USING AIR SPRINGS Bellows

To offer a more comfortable ride for vehicle owners.
To obtain better goods protection through lower spring rate and
natural frequency
To let longer vehicle life through less damage from road
shock and vibration.
To make a lighter vehicle possible, thus allowing an equivalent
increase in cargo mass.

Other product parameters:

Design Height	5.5	Maximum Stroke (kN)	6.5
Maximum Height (mm)	51	High Strength Style Number	124
Maximum Stroke (mm)	79	Material	2-Ply Standard Cord
Minimum Usable Height (mm)	130	Bead plate Type	3
25 mm (kN)	14.3	Dim# A (Blind Nut Centers) (mm)	89
50% of Max Stroke (kN)	13.2	Dim# B (mm)	38
Design Height (mm)	114
