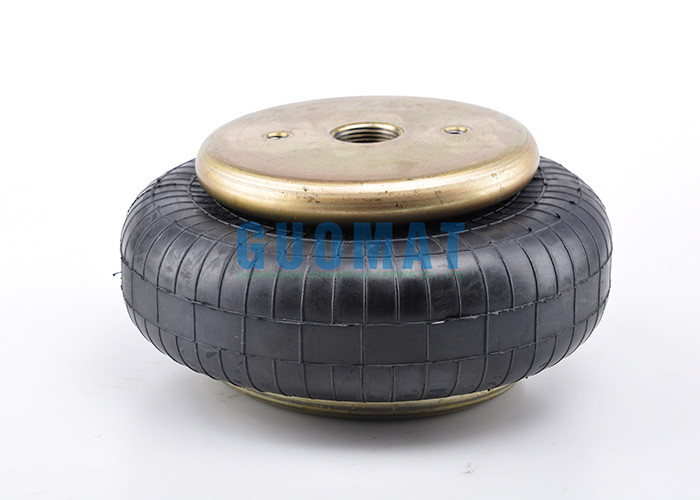

Industrial Air Spring FS 120-10 CI Single Convolution With Crimped Plates, G3/4 Air Inlet
Product Description
GUOMAT 1B8X4-3/4 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70 mm

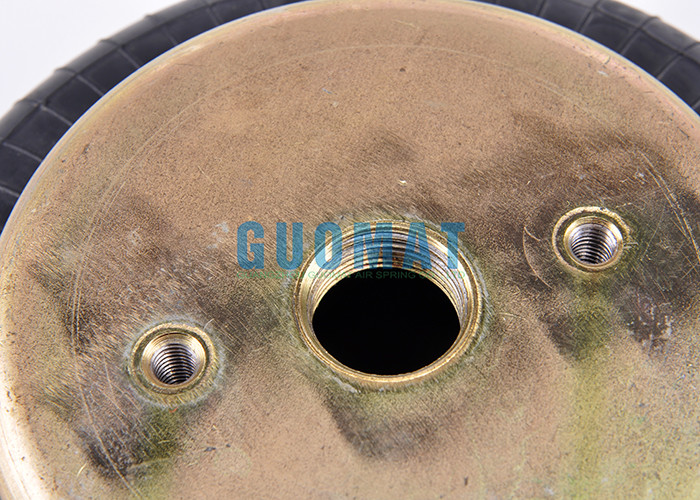

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 35 mm
❸ Cover Plate
Top Cover Plate Diameter: 135 mm
Bottom Cover Plate Diameter: 135 mm

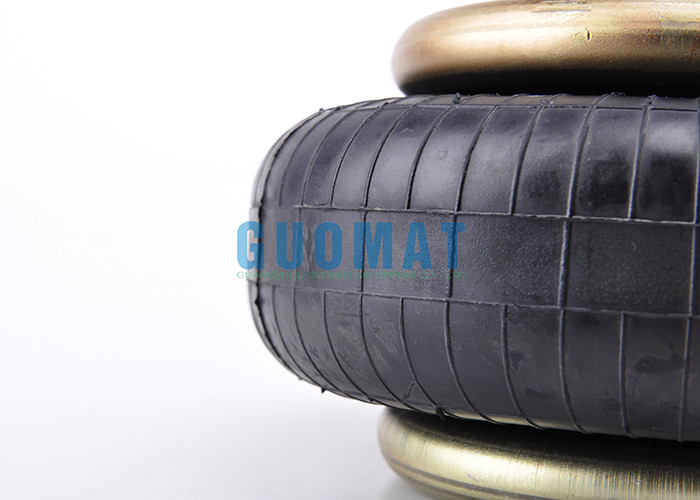

❹Rubber Bellows
Rubber Bellows MAX Diameter: 230 mm
Rubber Bellows Natural Diameter : 205 mm
The Working Stroke : MIN 50 mm to MAX 140 mm
Maximum Height : 140 mm
Minimum Height :50 mm
Stroke Height : 90mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
Reference OEM:
Firestone : W01-358-7564
Goodyear:1B8-550
Contitech:FS120-10
PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] |
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 |
| Design height H: recommended 4.33 inch, minimum 3.54 inch |
PURCHASE ORDER DATA
| Type | Air Inlet | Order No. | |
| | | |
| with crimped plates | 3/4 NPT 0 in. excentrical | |
Product Tags:
|
|
2.4 kg Industrial Air Spring FS 120-10 CI Single Convolution With Crimped Plates G3/4 Air Inlet Images
|
