FS 40-6 Contitech Phoenix SP1B04 Weforma WBE100-E1 Rubber Air Spring
GUOMAT:1B40-6 Specific parameters and specifications:
Top Plate Hole/Stud: 3 Pieces
Top Plate Hole/Stud: 2 PiecesXM8X1.25
Bottom Plate Hole/Stud: 2 PiecesXM8X1.25
Air inlet:G1/8
Top Cover Plate: 3.54 inches / 90 mm
Bottom Cover Plate Diameter: 3.54 inches / 90 mm
Collapsed Height: 2.36 inches / 60 mm
Screw Center Distance of Top Cover Plate : 0.8 inches / 20 mm
Screw Center Distance of Bottom Cover Plate : 0.8 inches / 20 mm
Rubber Bellows Natural Diameter : 125 mm
The Working Stroke : MAX 110 mm to MIN 50 mm
Maximum Height : 4.33 inches / 110mm
Minimum Height :1.97 inches / 50 mm

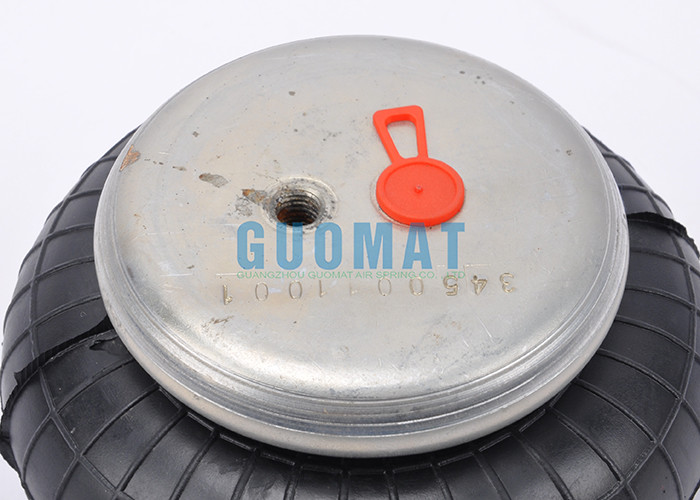

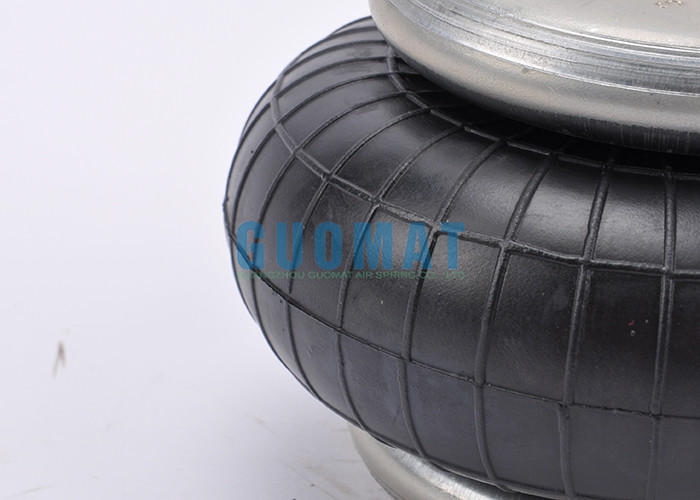

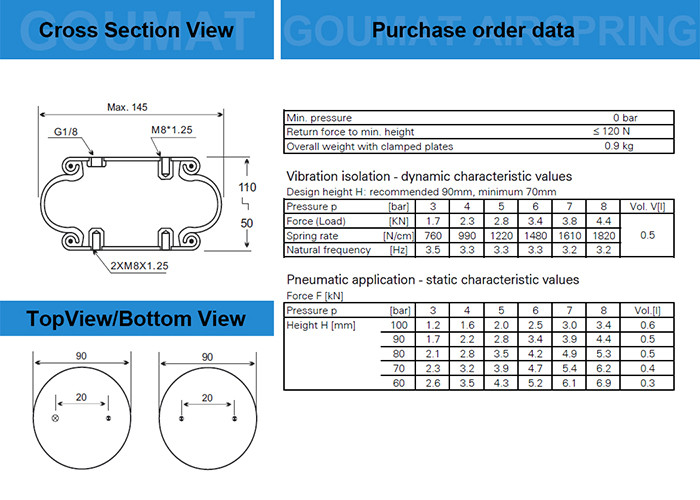

| FS40-6 Technical Parameters |
| Top Cover Plate Diameter | 90mm |
| Bottom Cover Plate Diameter | 90mm |
| Screw Center Distance | 20mm |
| Distance Gas Hole Between Nut | Together |
| Gas Hole | G1/8 |
| Screw (Nut) Tooth | 2pcsXM8X1.25 |
| Rubber Bellows MAX Diameter | 145mm |
| The Stroke | 50-110mm |
OEM Original Equipment Manufacturer:
| Phoenix | SP1B04 |
| Weforma | WBE100-E1 |
| contitech | FS 40-6 |
| | |
| Technical data |
| Min. pressure | 0 bar |
| Return force to min. height | ≤ 120 N |
| Overall weight with clamped plates | 1.0 kg |
| Pneumatic application - static characteristic values |
| Force F [kN] |
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Height H [mm] 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 |
| 100 | 1.2 | 1.6 | 2 | 2.5 | 3 | 3.4 | 0.6 |
GUOMAT air spring 1B4060 replace FS 40-6 Contitech.pdf
This FS46-6 Industrial Air Spring can be used for:
Such as:
Blower and Motor,
Control Panel,
Conveyor End Stop,
Mountain/Trail Bike,
Delicate Electronic Equipment
and Vibrating Screen.
