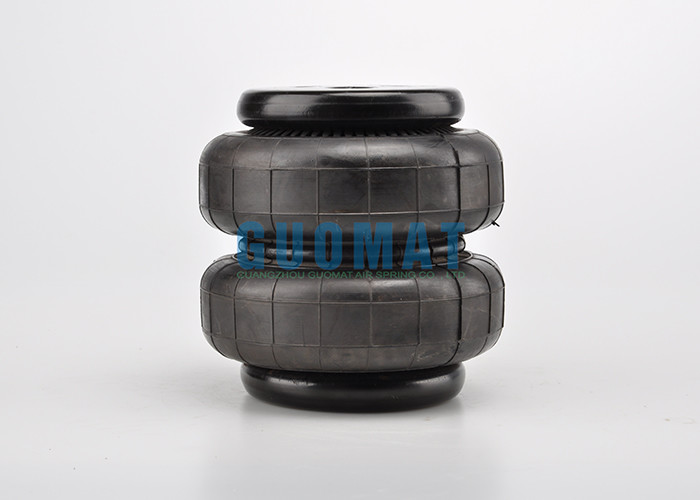

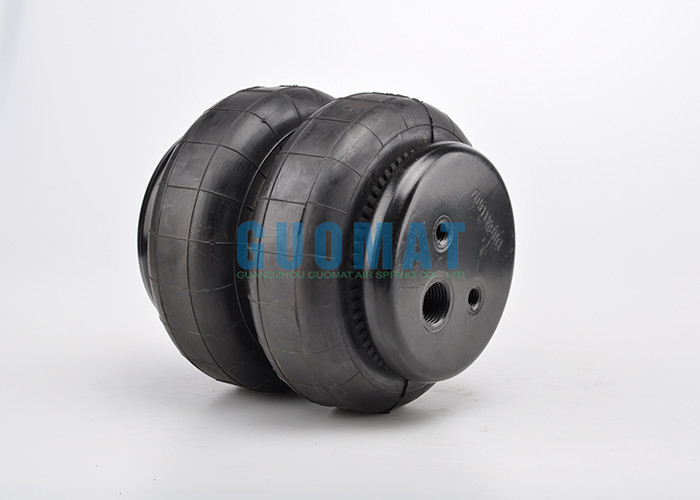

2B2500 Double Convoluted Air Spring Style For Car Renovation
Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC
In Middle of Bottom Cover Plate
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/2-14NPT
❸ Cover Plate
Top Cover Plate Diameter (Width): 113 mm
Bottom Cover Plate Diameter (Width): 113 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 152 mm
Rubber Bellows MAX Diameter : 165 mm
Installation Space Diameter : 180 mm
Rubber Bellows Natural Height : 212 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
About the 2B2500 Air Spring:
GUOMAT springs can be installed on most light trucks, RVs, RVs, SUVs and vans. They are mounted between the frame and axle of the vehicle and provide variable load support by adjusting the air pressure. GUOMAT springs can re-adjust the level of heavy-duty vehicles. Sport-Rite air springs, such as the GUOMAT air-assisted spring, improve driving and handling. While the GUOMAT kit includes a convoluted air spring, the Sport-Rite kit includes an innovative tapered sleeve air spring that is more conducive to specific applications.
| Air Spring NO. | Load | Design H. | Min. H. | Safe Elongation | Full Stroke |
| Air Spring NO. | Load | Design H. | Min. H. | Safe Elongation | Full Stroke |
| 310312J-2 | | | 115 | 360 | |
| 420185J-2 | | 111 | 100 | 211 | 111 |
| 310220J-2 | | | 85 | 250 | 165 |
| 235210J-2 | | | 85 | 245 | 160 |
| 156130J-2 | | | 70 | 145 | 75 |
| 130140J-2 | | | 70 | 155 | 85 |
| 380228J-2 | 5251 | 170 | 90 | 260 | 170 |
| 360220J-2 | 4596 | 170 | 80 | 250 | 170 |
| 330220J-2 | 3672 | 170 | 80 | 250 | 170 |
| 300180J-2 | 3021 | 240 | 85 | 213 | 240 |
| 260230J-2 | 1506 | 173 | 90 | 263 | 173 |
| 250190J-2 | 1834 | 135 | 85 | 220 | 135 |
| 235160J-2 | 1943 | 103 | 80 | 183 | 103 |
| 220200J-2 | 1310 | 139 | 90 | 229 | 139 |
| 200160J-2 | 1216 | 110 | 80 | 190 | 110 |
| 188195J-2 | 695 | 136 | 87 | 223 | 136 |
| 168156J-2 | 780 | 104 | 75 | 179 | 104 |
| 160174J-2 | 572 | 129 | 67 | 196 | 129 |
| 146132J-2 | 607 | 71 | 80 | 151 | 71 |
| 130118J-2 | 561 | 72 | 65 | 137 | 72 |
