3.5 kg Continental Air Springs FD200-19 452 Firestone Dumper W013586932 For Ridewell 1003586932C

Product Categories

GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

3.5 kg Continental Air Springs FD200-19 452 Firestone Dumper W013586932 For Ridewell 1003586932C

Name: 35 kg Continental Air Springs FD20019 452 Firestone Dumper W013586932 For Ridewell 1003586932C
Brand: GUOMAT
Price: 1 USD

China 3.5 kg Continental Air Springs FD200-19 452 Firestone Dumper W013586932 For Ridewell 1003586932C wholesale

Brand Name : GUOMAT

Model Number : 2B6932

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel And Rubber

Contitech : FD200-19 452

Warranty : 12 Months

Weight : 3.5 kg

Other Name : Contitech Air Spring

Pressure Ability : 0.2-0.8 M Pa

Firestone : W01 358 6932

Goodyear : 2B9-246

Contact Now

Continental Air Springs FD200-19 452 Firestone Dumper W013586932 For Ridewell 1003586932C

OEM Original Equipment Manufacturer:

Reference	OEM
GUOMAT NO.	2B6932
Firestone	W01-358-6932 / W013586932 / W01 358 6932
Contitech	FD 200-19 452 / FD200 19 452 / FD 20019 452
Goodyear	2B9-246 / 2B9246 / 2B9 246
Ridewell	1003586932C

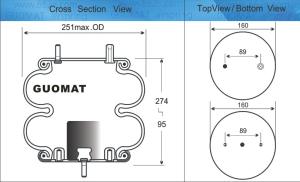

Specifications and Technical Data of 2B6932

Compressed Height: 3.12 / 79mm

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut :in the middle of the plate

Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-12UNC

Bottom Cover Plate Screw (Nut) Tooth : 1pcsX 1/2-16UNC

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 224 mm

The Working Stroke : MAX 274 mm to MIN 95 mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number:20
