GUOMAT 1B8X4 Refer To Firestone W01-358-7564 And Goodyear 1B8-550 For Machine
Product Description of 1B8X4 Refer To W01-358-7564
Top Cover Plate Diameter: 135mm
Bottom Piston Number: no
Bottom Cover Plate Diameter: 135mm
Screw Center Distance : 70mm
Distance Gas Hole Between Nut: 35 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Rubber Bellows MAX Diameter(Maximum Diameter): 230 mm
Rubber Bellows Natural Diameter 210 mm
The Working Stroke : MAX 140 mm to MIN 50 mm
Compressed Height: 50 mm
Gas Hole / Air inlet : 1/4NPTF
| Types of | [Other types] Air spring | Height adjustment handle | no |
| Width W (mm) | 221 | Load range (kN) | 12.501〜16.000 |
| Allowable load (kN) | 13.1 | Thread length L1 (mm) | -- |
| Height of main body h (mm) | 134 | Nominal thread M (mm) | 10 |
| Property | Standard/Shockproof performance | Installation method | 2 |
| Air supply port | 1/4 | With or without bumpers | no |
| RoHS directive | 10 | - | -- |
Technical Data of 1B8X4 Refer To W01-358-7564
- Min. pressure – 0 psi
- Return force to min. height – <45LBF/200N
- Overall Weight – 2.4KG
- Min. Design Height – 50MM
- Inst.Space Required – 140MM
- Max. Stroke – 90MM
GUOMAT:1B8X4
OEM Original Equipment Manufacturer:FS 120-10 CI
AIR INLET 1/4 NPT:
Firestone : W01-358-7564
Goodyear:1B8-550
Contitech:FS120-10
Description of 1B8X4 Refer To W01-358-7564
Assembly Order No.
Style 116 Two Ply Bellows
Blind nuts, 1/4 NPT:W01-358-7564；W01 358 7564；W013587564
Blind nuts, 3/4 NPT:W01-358-7561；W01 358 7561；W013587561
Countersunk steel bead rings,19/4 bolts, nuts, washers:W01-358-7568；W01 358 7568；W013587568
Blind nuts with installed 1/4 tank valve W01-A72-7518；W01 A72 7518；W01A727518
Rubber bellows only:W01-358-0133；W01 358 0133；W013580133
Style 117 High Bellows
Blind nuts, 1/4 NPT:W01-358-7600；W01 358 7600；W013587600
Blind nuts, 3/4 NPT:W01-358-7602；W01 358 7602；W013587602
Countersunk steel bead rings,Strength 13/4 bolts, nuts, washers:W01-358-7606；W01 358 7606；W013587606
1B8X4 Refer To W01-358-7564 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] |
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 |
| Design height H: recommended 4.33 inch, minimum 3.54 inch |
PURCHASE ORDER DATA
| Type | Air Inlet | Order No. | |
| | | |
| with crimped plates | 1/4 NPT 0 in. excentrical | |
| 57991256700090 | 20810735 | Y | C 1B8-560 | C 1B8-560 |
| 57991256800091 | 20810607 | Y | P 1B8-560 | P 1B8-560 |
| 57991256900091 | 20811403 | Y | P 1B8-550 | P 1B8-550 |
| 57991257000090 | 20811604 | Y | C 1B8-562 | C 1B8-562 |
| 57991257100090 | 20811605 | Y | C 1B8-564 | C 1B8-564 |
| 57991257200090 | 20811606 | Y | C 1B8-850 | C 1B8-850 |
| 57991262700090 | 20806174 | Y | C 1B8-550 | C 1B8-550 |
| 1B5-800 | 20469101 | N | 1B5-800 | 1B5-800 |
| 57991280000019 | 20095537 | Y | ENIDINE YI-1B5-800 | ENIDINE YI-1B5-800 |
| 57991280100000 | 20607917 | Y | GOODYEAR 1B5-801 | GOODYEAR 1B5-801 |
| 57991280100019 | 20095538 | Y | ENIDINE YI-1B5-801 | ENIDINE YI-1B5-801 |
| 1B5-810 | 20254245 | N | 1B5-810 | 1B5-810 |
| 57991281000019 | 20095539 | Y | ENIDINE YI-1B5-810 | ENIDINE YI-1B5-810 |
| 57991282000019 | 20095540 | Y | ENIDINE YI-1B5-820 | ENIDINE YI-1B5-820 |
| 57991282100019 | 20224307 | Y | ENIDINE YI-1B5-821 | ENIDINE YI-1B5-821 |
| 57991283100019 | 20095541 | Y | ENIDINE YI-1B6-831 | ENIDINE YI-1B6-831 |
| 1B6-833 | 20263189 | N | 1B6-833 | 1B6-833 |
| 57991283300019 | 20095542 | Y | ENIDINE YI-1B6-833 | ENIDINE YI-1B6-833 |
| 57991283400090 | 20806000 | Y | C 1B6-833 | C 1B6-833 |
| 1B6-835 | 20488587 | N | 1B6-835 | 1B6-835 |
| 57991283500019 | 20117074 | Y | ENIDINE YI-1B6-835 | ENIDINE YI-1B6-835 |
| 1B7-840 | 20680822 | N | 1B7-840 | 1B7-840 |
| 57991284000019 | 20095543 | Y | ENIDINE YI-1B7-840 | ENIDINE YI-1B7-840 |
| 57991285000000 | 20384830 | Y | 1B8-850 | 1B8-850 |
| 57991285000019 | 20095544 | Y | ENIDINE YI-1B8-850 | ENIDINE YI-1B8-850 |
| 57991286000019 | 20117076 | Y | ENIDINE YI-1B8-860 | ENIDINE YI-1B8-860 |
Product Tags:
|
|

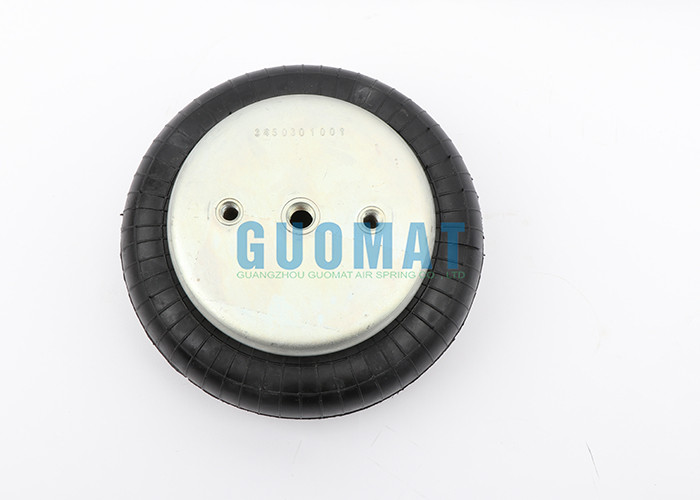

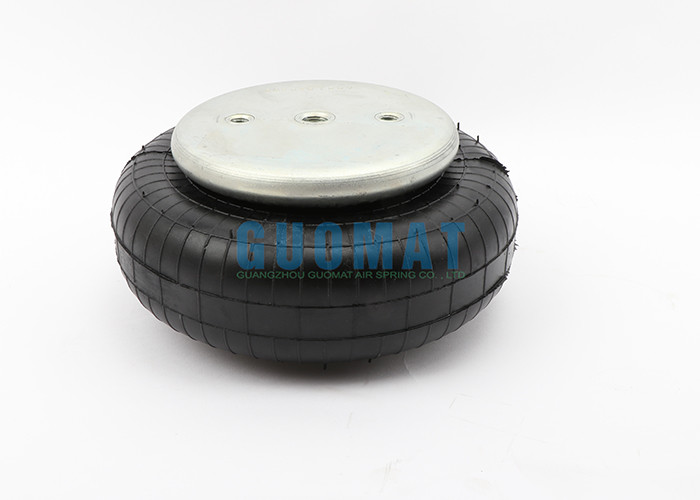

GUOMAT 1B8X4 Refer To Firestone W01-358-7564 And Goodyear 1B8-550 For Machine Images
|
