Firestone Industrial Air Spring W01-358-6945 With Two Pillars Nuts And Two Blind Nuts
GUOMAT 2B6945 Specifications and Technical Data
Compressed Height: 3.12 inches /
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut: 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
One hole in the middle of the Bottom Cover Plate:10.3
Rubber Bellows MAX Diameter: 262 mm
The Working Stroke : MAX 325 mm to MIN 95 mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number: 20-2
Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206
Bellows NO.: 20-2
Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
Loading Capacity at 20 psig: 648 lbsf
Loading Capacity at 60 psig: 1,944 lbsf
Loading Capacity at 90 psig: 2,916 lbsf
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº
GUOMAT: 2B6945 Cross others OEM
GUOMAT NO.2B6945
Firestone:W01-358-6945
Firestone:W01 358 6945
Firestone:W013586945
Contitech : FD 200-25 427
Contitech :FD200-25 427
Contitech :FD20025 427
Goodyear: 2B9-253
Goodyear:2B9253
Goodyear:2B9253
Goodyear Bellows: 578-92-3-206
Goodyear Bellows:578 92 3 206
Goodyear Bellows:578923206
Triangle: 6332/4427
Leland : Sc2125
Watson&Chalin: AS0119F
Watson&Chalin:AS01451G
Ridewell1003586945C
| GUOMAT NO.2B6945 | Contitech 64550 |
| Firestone:W01-358-6945 | Firestone:20-2 |
| Firestone:W01 358 6945 | Firestone:20 2 |
| Firestone:W013586945 | Batco 10-96945 |
| Contitech : FD 200-25 427 | Goodyear: 2B9-253 |
| Contitech :FD200-25 427 | Goodyear:2B9253 |
| Contitech :FD20025 427 | Goodyear:2B9253 |
| Goodyear Bellows: 578-92-3-206 | Triangle: 6332/4427 |
| Goodyear Bellows:578 92 3 206 | Leland : Sc2125 |
| Goodyear Bellows:578923206 | Watson&Chalin: AS0119F |
| Watson&Chalin:AS01451G | Ridewell1003586945C |
| UCF Impex AB-2B9-253 | UCF Impex AB6945 |
| Midland CS209253 | Euclid E-FS6945 |
| Loadguard SC2125 | Euclid FS6945 |
Description and application Of GUOMAT 2B6945 air spring:
This kind of GUOMAT 2B6945 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.
Note:
• The air spring can only move on the workpiece, or it must be equipped with a limit stop at the end of the stroke, otherwise the rubber material of the air spring will be overloaded or cause internal damage
• A reset force is required to compress the air spring to the minimum height. Usually achieved by applying external force
• The entire air spring surface of the upper and lower plates must be used to absorb force
• Before disassembling the air spring, the air pressure in it must be exhausted
•During operation, the wall of the air spring must not be in contact with other parts, otherwise the air spring will be worn and damaged and air leakage will occur.

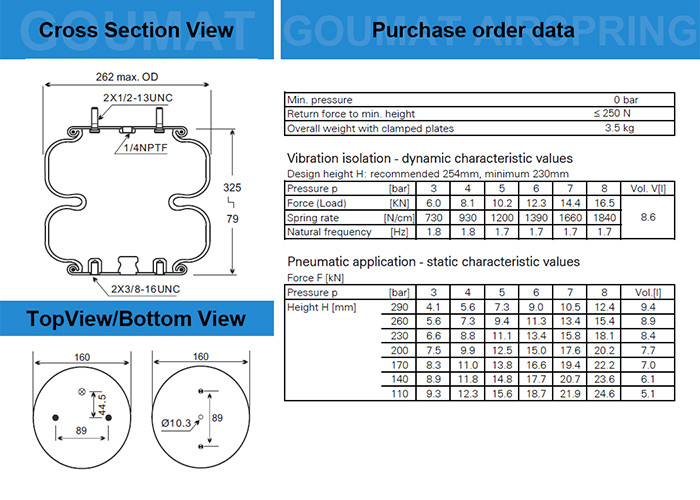

Details Technical data at the below photo
