CONTITECH 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122
Product Information
GUOMAT NO. : 1T4811NP03
VEHICLE TYPE: Truck
POSITION: The Floating Bridge
PISTON : With Piston
OEM REFERENCES
FIRESTONE 1T19F-11 / 1T19F 11 / 1T19F11
W01-358-8792 / W01 358 8792 / W013588792
CONTITECH 11 10.5-21 A 313 / 1110.5-21A313 / 11 10.5-21 A 313
GOODYEAR 1R14-045 / 1R14 045 / 1R14045
GOODYEAR 1R13-038 / 1R13 038 / 1R13038
566-26-3-072 / 566 26 3 072 / 566263072
CONTITECH 4811 N P03 / 4811NP03 / 4811 N P03
PHOENIX 1DK28B-7 E2 / 1DK28B7E2 / 1DK28B-7 E2
TAURUS KR 622-9122
Firestone Bellows Number:1T19F-11 or 1T19L-11
Note:Aluminum version of W01-358-9122
Manufacturers Part Number:W01-358-8792
VEHICLE OEM REFERENCES
HENDRICKSON 36514-2
HENDRICKSON 36514-8
HENDRICKSON 506003
HENDRICKSON B 3467
NEWAY 905 57 076/077
NEWAY 905.57.077
WESTAR PART 87-79122
EUCLID PART E-FS9122
AUTOMANN PART 1D28C-9122
Technical Parameters
Top Plate Number:3388
Piston Number:9580
Extended Height:27.30
Compressed Height: 8.70
Top Plate Width:11.31
Piston Width:10.30
Assembly Weight: 24.7 lbs
Design Height: 14.5-18.5 inches
Minimum Jounce Height: 8.88 inches
Maximum Diameter: 13.7 inches
Material Type: Natural Rubber

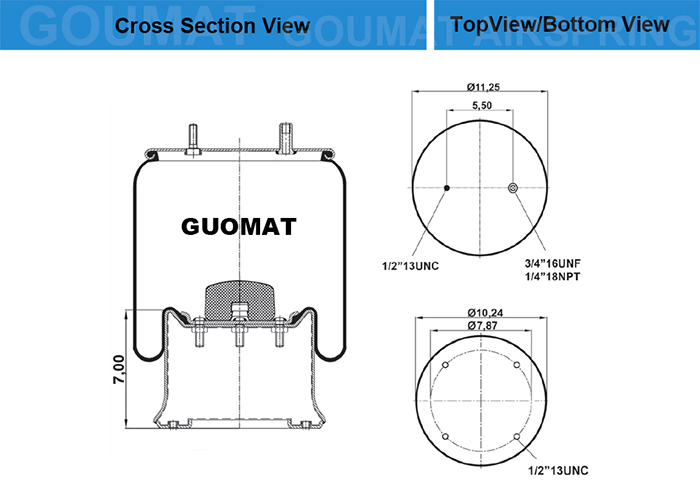

screw bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :1 pcs 1/2-13UNC
Combine bolt : 1 pcs 3/4-16UNF
Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : 1/4NPT
Cover Plate
Top Cover Plate Diameter: ?289 mm
Rubber Bellows
Rubber Bellows Natural Diameter: 320 mm
Min Height :240 mm
MAX Height : 660 mm
The stroke : 420 mm
Bumper block / Buffer block
Bumper Block height :41mm

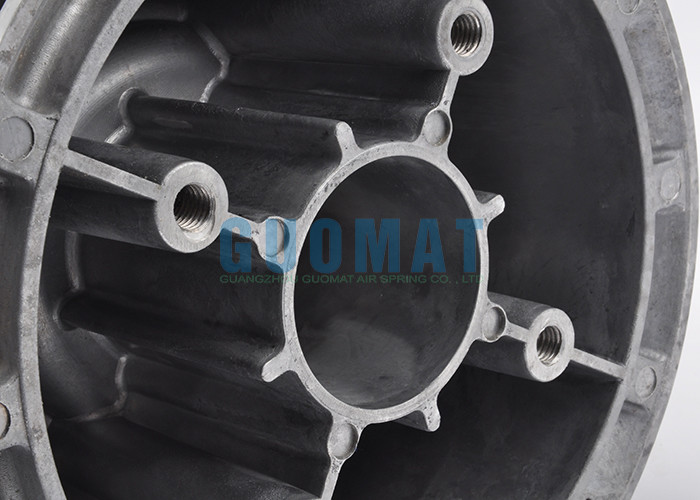

Bottom Piston
Aluminum Piston
Bottom Piston Diameter : 263mm
Bottom Piston Height :178 mm
Piston Bolt
Piston Bolt Tooth : 4X1/2-13UNC
4 pieces of Bolt
Middle inside between center Bolt : 200 mm
ABOUT US...
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The warranty period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
