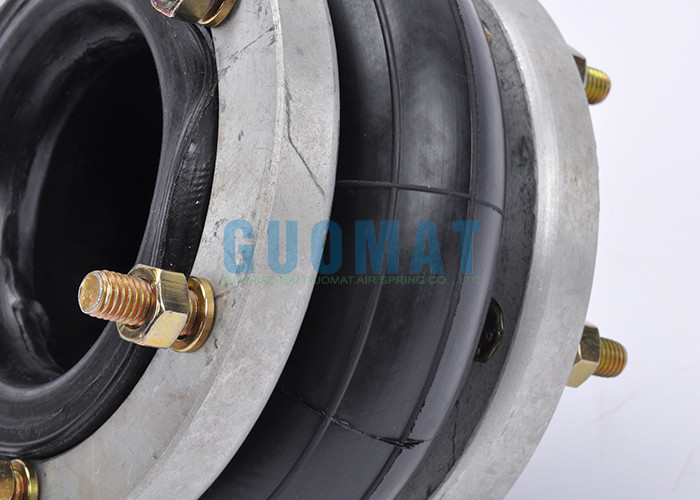

215120CY-1 Industrial Single Convoluted Air Spring With Flange Ring and Plate
Guomat 215120CY-1 Single Convoluted Air Spring Specifications
❶Nut / Blind Nut
The Long Of The Nut:25 mm
Top Cover Plate Screw number: 6 pcs
Bottom Cover Plate Screw number : 6 pcs
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 210 mm
Bottom Cover Plate Diameter: 210 mm
❹Rubber Bellows

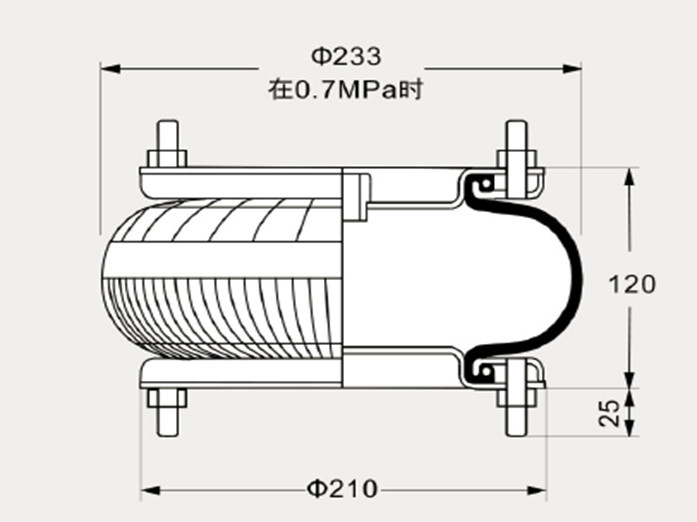

In 0.7 M pa,Rubber Bellows Diameter : 233 mm
Rubber Bellows Natural Height :120 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
| Flange connection type of air spring model comparison table |
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT22-6DICR | FT 22-6 DI CR | | |
| FT44-15DICR | FT 44-15 DI CR | | |
| FT76-20DICR | FT 76-20 DI CR | | |
| FT76-20DSCR | FT 76-20 DS CR | | |
| FT138-26DS | FT 138-26 DS | | |
| FT210-32DS | FT 210-32 DS | | |
| FT412-32DS | FT 412-32 DS | | |
| FT614-36DS | FT 614-36 DS | | |
| FT816-40DS | FT 816-40 DS |
