Suspension Air Spring 2B12-440 / 2B12440 Bellows No. 578923315 Cross FD 331-26 480
| Cross OEM References | OEM References |
| Firestone : W01-358-7555 / W01 358 7555 / W013587555 | Firestone: 7450 |
| Firestone Bellows Number: 228C-1.5 | Firestone: 7555 |
| Contitech : FD 331-26 480 | Conti Tech: 64284 |
| Goodyear : 2B12-440 / 2B12440 | Batco: 10-97450 |
| Goodyear: 578923315 / 578-92-3-315 | Batco: 10-97555 |
| Reyco : 20018-01 (86AR)/ 18813-01 | Reyco: 18813-01 |
| Holland/Binkley: XB-SPN-053-37 | Reyco: 20018-01 |
| Binkley XB-SPN-053-37 | UCF/Impex: AB-2B12-440 |
| Brake&Wheel : M3531 | Dallas Spring: AS7555 |
| Twthill : 1881301/2001801 | Sirco: AS-7555 |
| Triangle Part Number:4480 | Midland/Haldex: CS212440 |
| Triangle Bellows Number:6375 | Euclid/Meritor Aftermarket: E-FS7555 |
| Euclid/Meritor Aftermarket: FS7555 | Conti Tech: FD331-26480 |
| Leland: SC2676 | |
Assembly Weight: 13.4 lbs
Design Height: 9-11 inches
Minimum Jounce Height: 3.55 inches
Loading Capacity at 20 psig: 1,240 lbsf
Loading Capacity at 60 psig: 3,720 lbsf
Loading Capacity at 90 psig: 5,580 lbsf
Operating Temperature: 57Cº to -54Cº

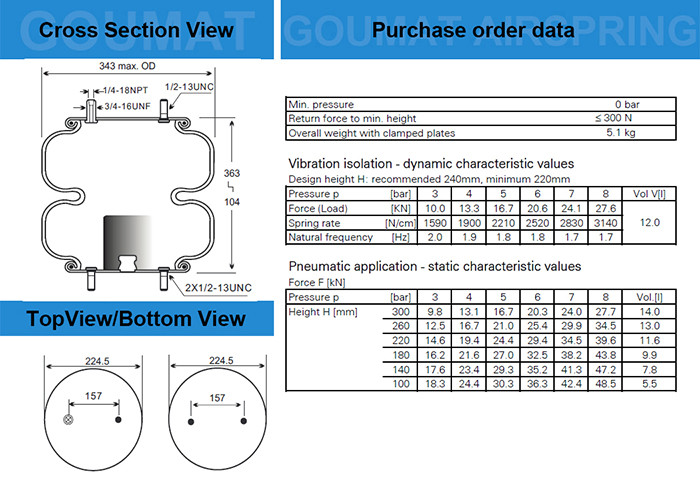

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC
Top Cover Plate Combination Nut : 3/4-16UNF
Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 2X1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPT , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches
❹Rubber Bellows
Rubber Bellows MAX Diameter : 343 mm / 9.7 inches
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 363mm / 14.3 inches
Working Stroke : 259 mm / 10.2 inches
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
- They almost do not need to maintain.
- Increase the service life of tires and brake pads.
- Let you pull anything; Eliminate expensive admission cost.
- Greatly reduce the breakage of the other vehicle components and maintenance.
- Back to you in the scrappage, truck and trailer with air suspension is more valuable.
- Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
- Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
- To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
