Silk Screen Mechanical Single Convoluted Air Spring FS 200-10

Name: Silk Screen Mechanical Single Convoluted Air Spring FS 20010
Brand: GUOMAT
Price: 1 USD

China Silk Screen Mechanical Single Convoluted Air Spring FS 200-10 wholesale

Brand Name : GUOMAT

Model Number : FS 200-10

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Rubber Steel

FIRESTONE : W01 M58 6375

Warranty : 12 Months

Weight : 1.6 kg

Other name : industrial air shock absorbers

Pressure Ability : 0.2-0.8 M Pa

CONTITECH : FS 200-10 60030

BOSCH : 822419009

Contact Now

Silk screen equipment mechanical Industria air spring FIRESTONE W01 M58 6375 FS 200-10

Product Description

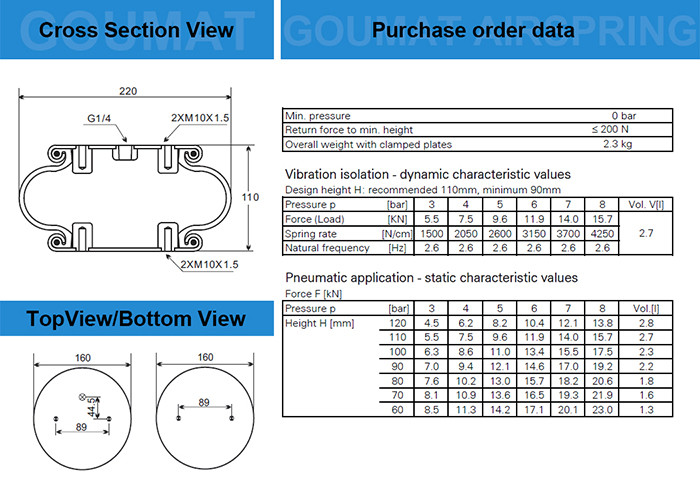

Technical Data

Min. pressure – 0 psi
Return force to min. height – <45LBF/200N
Overall Weight – 4.4LB
Min. Design Height – 2.01inch / 51MM
Inst.Space Required – 9.65inch / 245 MM
Max. Stroke – 3.9inch / 99MM

OEM Original Equipment Manufacturer:

BELLOW NO.	COMPLETE NO.
AIRKRAFT 112005	AIRKRAFT 111006
CONTITECH FS 200-10 60319	CONTITECH FS 200-10 60030
FIRESTONE FLEX 115	FIRESTONE FLEX 115
FIRESTONE W01-358-0118	FIRESTONE W01 M58 6375
	BOSCH 822419009
	WEFORMA WBE 400-E2 / 410-E1

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	981	1,530	2,040	2,570	3,090	124
Spring rate c [lbf/in]	701	1,000	1,290	1,560	1,870	124
Natural Frequency f0 [Hz]	2.7	2.7	2.6	2.5	2.5	124
Design height H: recommended 4.53 inch, minimum 3.94 inch

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
H 4.50 in.	939	1440	1920	2430	2950	120
H 4.00 in.	1120	1690	2260	2850	3430	110
H 3.50 in.	1250	1880	2530	3170	3850	96
H 3.00 in.	1370	2050	2760	3460	4170	83
H 2.50 in.	1450	2170	2930	3640	4410	68

PURCHASE ORDER DATA

Type	Air Inlet	Order No.
Rubber bellows only	–
with crimped plates	G1/4 0 in. excentrical
with crimped plates	–

SERVICE INSTRUCTIONS

	Thread	max. Torque
	2XM10X1.5	20 lbf ft / 2.26N.M
	G1/4	20 lbf ft / 2.26N.M

Silk Screen Mechanical Single Convoluted Air Spring FS 200-10

Product Tags:

convoluted air spring

air suspension parts

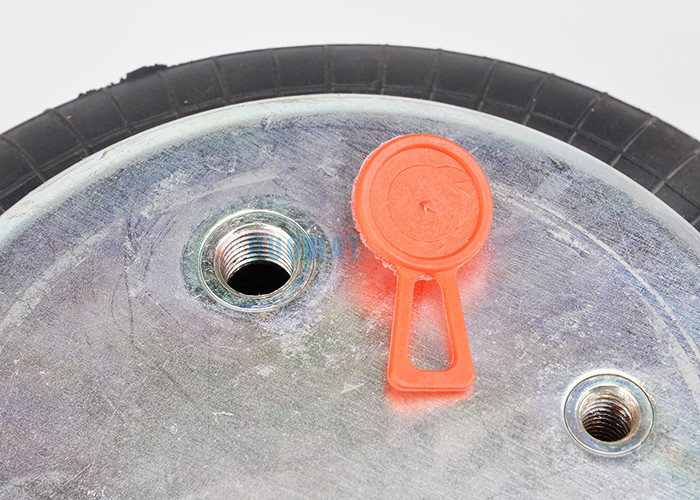

Silk Screen Mechanical Single Convoluted Air Spring FS 200-10 Images
