Industrial Convoluted Air Spring

Brand Name : GUOMAT

Model Number : FT 330-29 432

Certification : ISO/TS16949:2009

Place of Origin : Guangdong,China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel cover plate , rubber bellows

Goodyear : 3B12-301

Gas Hole : 1/4NPTF

Two Pillars Stick Nuts : 3/8

Screw Center Distance : 157.5 mm

Cover Plate Diameter : 231mm

Pressure Ability : 2-8 M Pa

Natural Height : 297 mm

Contact Now

Industrial Air Spring CONTITECH FT 330-29 Fits Energy Storage Device Actuators

FT 330-29 Technical Parameters
Top Cover Plate Diameter 231mm
Bottom Cover Plate Diameter 231mm
Screw Center Distance 157.5mm
Distance Gas Hole Between Nut 73mm
Gas Hole 1/4NPTF
Screw (Nut) Tooth 2pcsX2X3/8-16UNC
Rubber Bellows Diameter Natural 295mm
The Height Natural 297mm

CONTITECH FT 330-29 Cross others OEM

BELLOW Numbers COMPLETE NO. COMPLETE Numbers
AIRKRAFT 116008 AIRKRAFT 115033 AIRKRAFT 115027
FIRESTONE FLEX 38R/38D CONTITECH FT 330-29 773 CONTITECH FT 330-29 430
FIRESTONE 095.0047 FIRESTONE W01-358-8013 FT 330-29 498
GOODYEAR FLEX 556 3 3 8334 GOODYEAR 3B12-305 FT 330-29 503
578 93 3 100 AIRKRAFT 115035 FT 330-29 702
　 CONTITECH FT 330-29 432 FIRESTONE W01 358 8006
　 FIRESTONE W01-358-8010 W01 358 8030
　 GOODYEAR 3B12-301 GOODYEAR 3B12-304

Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]

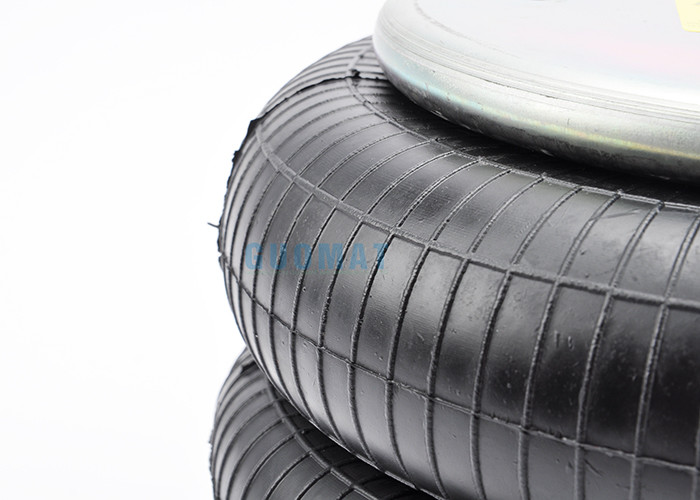

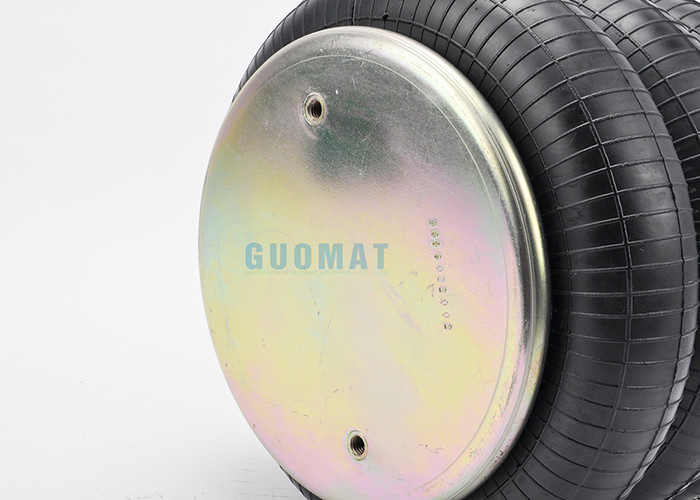

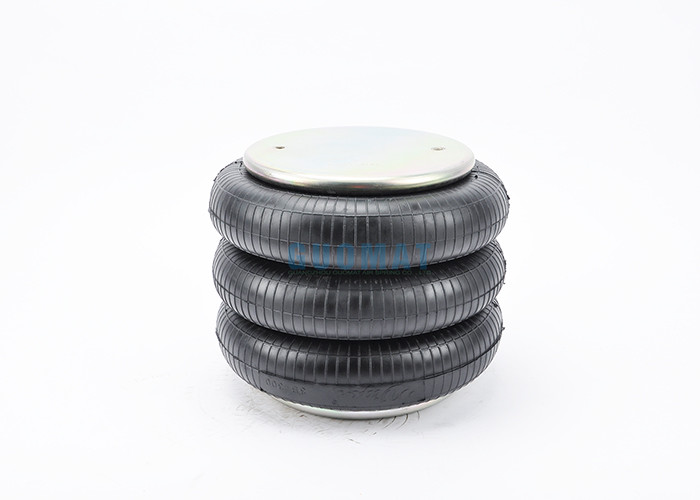

Industrial Convoluted Air SpringIndustrial Convoluted Air SpringIndustrial Convoluted Air Spring

Other kinds of FT 330 29 that GUOMAT have:

GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX
FT 330 29 413 FT 330-29 413 161343 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 430 FT 330-29 430 161344 5040 6300 12.9 12 4 18.1 78
FT 330 29 431 FT 330-29 431 161345 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 432 FT 330-29 432 161346 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 433 FT 330-29 433 161347 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 434 FT 330-29 434 161031 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 466 FT 330-29 466 161348 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 469 FT 330-29 469 161349 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 498 FT 330-29 498 161350 5040 6300 12.9 12 4 18.1 78
FT 330 29 503 FT 330-29 503 161351 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 508 FT 330-29 508 161352 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 520 FT 330-29 520 161353 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 525 FT 330-29 525 161354 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 546 FT 330-29 546 161355 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 547 FT 330-29 547 161356 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 548 FT 330-29 548 161357 4760 5950 12.9 12 4.1 18.1 78
